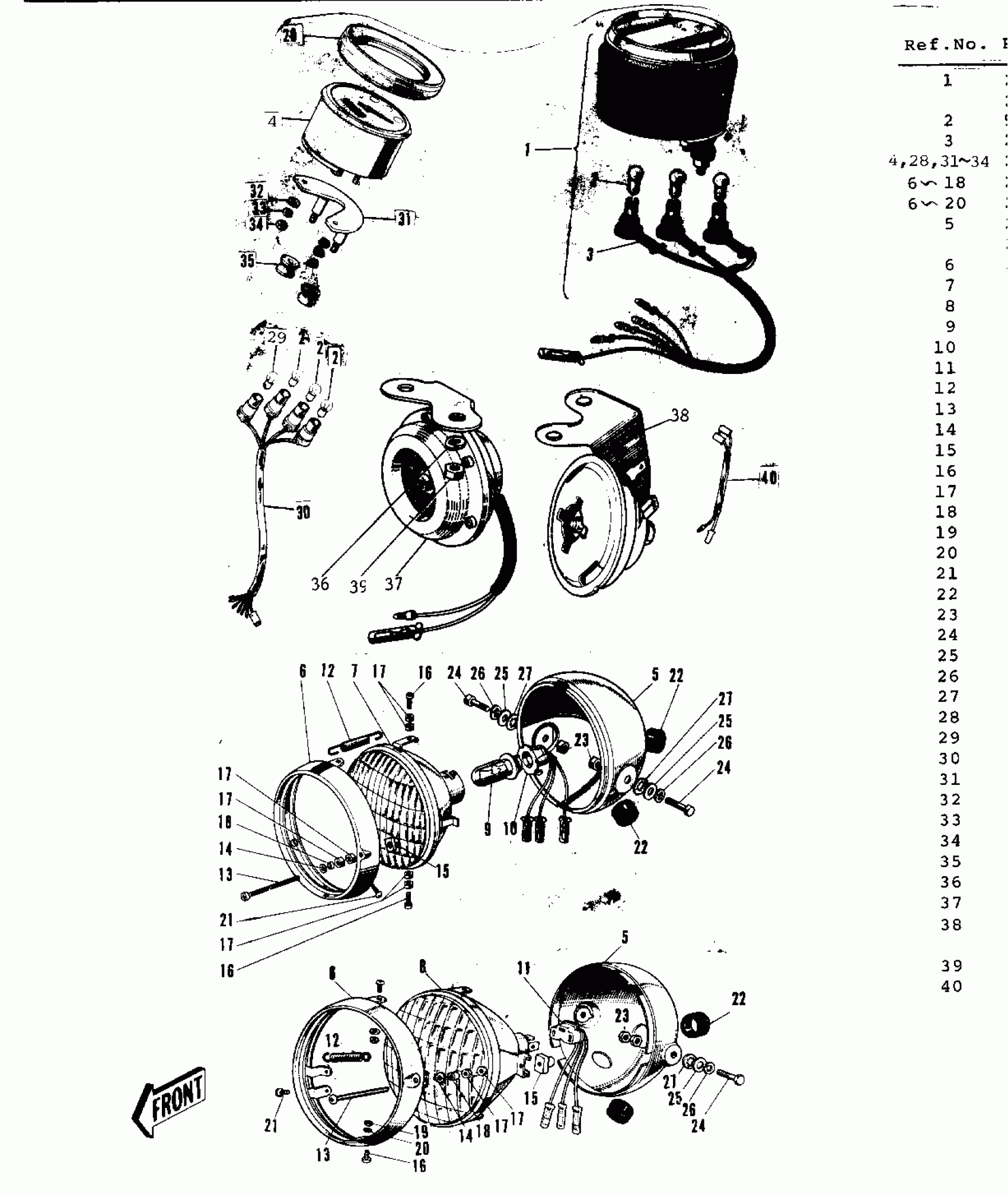

Kawasaki G3SS-D METER/HEADLIGHT ('69-'73) Diagram

#

Description
Price

1

SPEEDOMETER ASSY MPH

25001-008

$142.71

2

BULB,6V 1.7W

92069-024

$5.31

3

SOCKET SPEEDOMETER

25011-008

$39.19

6~18

LAMP UNIT HEAD

23004-011

Unavailable

6~20

LAMP UNIT HEAD

23003-009

$130.03

5

UNAVAILABLE IN PRICE BOOK

23005-021

Unavailable

5

CASE-HEAD LAMP,BLACK

23005-021-21

$52.88

6

RIM HEAD LAMP

23006-020

Unavailable

7

LENS UNIT HEAD LAMP

23007-017

Unavailable

8

SEALED BEAM UNIT

23007-023

Unavailable

9

BULB,6V 25/25W

92069-031

Unavailable

10

SOCKET HEAD LAMP

23008-009

$16.86

11

SOCKET-ASSY,HEAD LAMP

23008-044

$20.24

12

SPRING LENS FITTING

23014-008

$1.03

13

SCREW ADJUST

23019-013

Unavailable

14

WASHER ADJUST

23021-007

Unavailable

15

NUT,ADJUSTING

23020-012

$3.91

16

SCREW FITTING

23019-014

Unavailable

17

NUT ADJUST

23020-013

$1.95

18

WASHER FITTING

23058-001

$1.54

19

NUT-HEX

311B0400

Unavailable

20

WASHER SPRING 4MM

461F0400

Unavailable

21

SCREW OVL CNTSNK 5X8

222E0508A

Unavailable

22

GROMMET WIRING HARNES

23023-007

Unavailable

23

NUT 10MM

92016-027

Unavailable

24

BOLT HEX HEAD 10X20

113N1020

Unavailable

25

WASHER-PLAIN,10MM

411B1000

Unavailable

26

WASHER SPRING 10MM

461F1000

Unavailable

27

WASHER LOCK 10MM

463H1000

Unavailable

36

WASHER SPRING 6MM

461F0600

Unavailable

37

HORN

27003-009

Unavailable

38

HORN

27003-055

Unavailable

38

HORN

27003-055

Unavailable

39

NUT 6MM

311B0600

Unavailable
