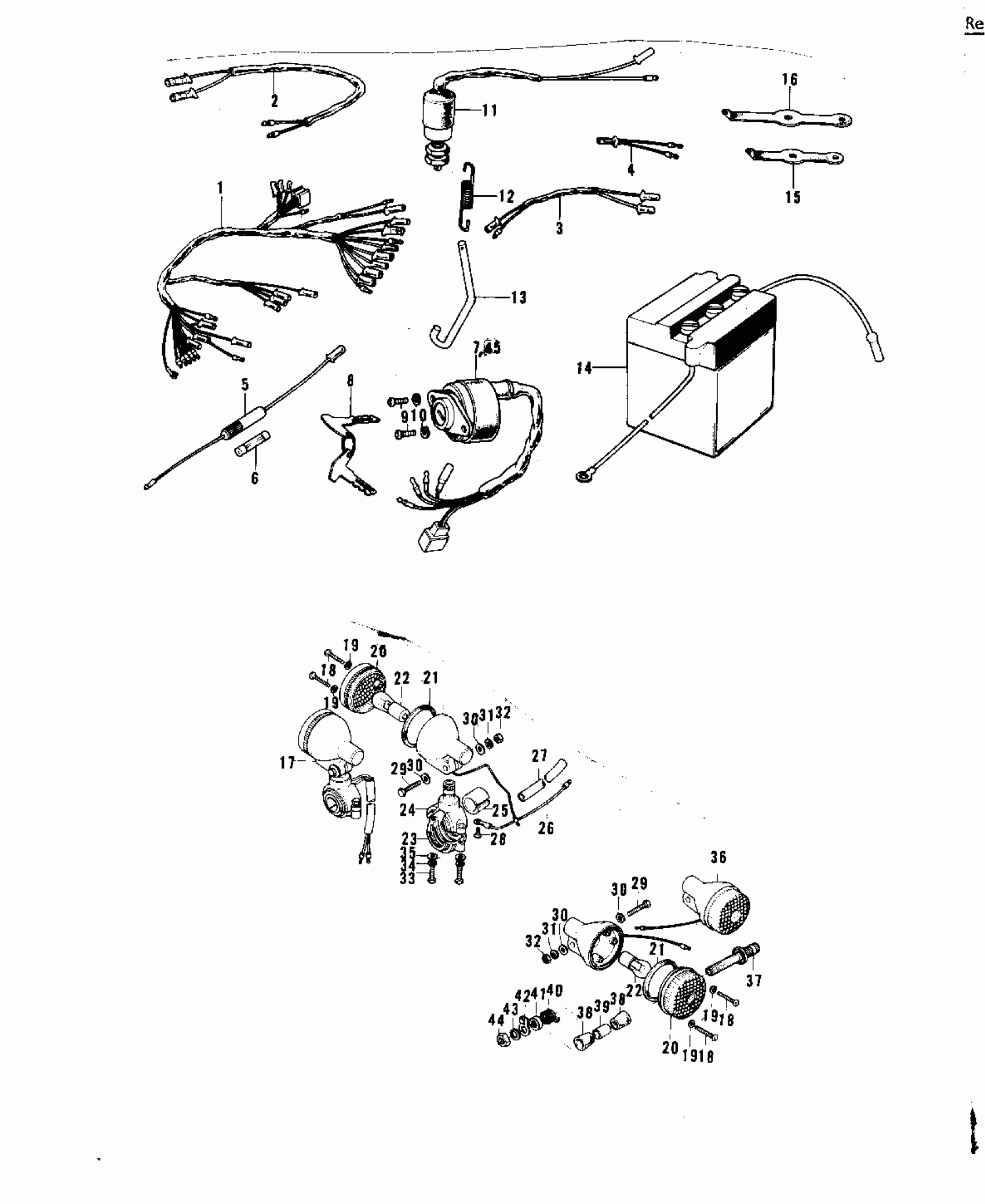

Kawasaki G3SS-D CHASSIS ELECTRICAL EQUIPMENT (G3SS-C) (' Diagram

#

Description
Price

1

WIRING HARNESS-MAIN

26001-079

$67.61

2

WIRING HARNESS REAR

26002-007

Unavailable

3

LEAD WIRE

26011-042

Unavailable

4

WIRE-LEAD

26011-058

$4.51

5,6

FUES ASSY

26004-008

Unavailable

6

FUSE,10A,L=25

26006-003

$4.72

7,8

SWITCH ASSY,IGNITION

27005-1016

Unavailable

8

KEY SET NO.321

27008-034-21

Unavailable

8

KEY SET NO.322

27008-034-22

$15.22

8

KEY SET NO.323

27008-034-23

$6.19

8

KEY SET NO.324

27008-034-24

$15.07

8

KEY SET NO.235

27008-034-35

Unavailable

8

KEY SET NO.236

27008-034-36

$6.47

8

KEY SET NO.237

27008-034-37

$6.49

8

KEY SET NO.238

27008-034-38

Unavailable

8

KEY SET NO.239

27008-034-39

Unavailable

9

SCREW-PAN-CROS

220B0512

$0.42

10

WASHER SPRING 5MM

461F0500

Unavailable

11

SWITCH-BRAKE LAMP

27010-018

Unavailable

12

SPRING,BRAKE LAMP SWITCH

27011-006

$5.46

13

SPRING BRAKE LAMP SW

27012-005

$3.15

14

YUA BAT 6N4-2A-5

K26012-020

Unavailable

15

BAND,L=149

92072-031

$5.00

16

BAND,L=218

92072-032

$5.00

17

LAMP ASY-FR TURN SIG

23037-005

Unavailable

18

SCREW-PAN HEAD,4X20

220E0420A

Unavailable

19

WASHER,PLAIN,4MM

23058-002

$2.49

20

LENS-SIGNAL LAMP,"045-6588"

23048-1001

$10.57

21

GASKET,SIGNAL LAMP

23050-003

$5.80

22

BULB,6V 21CP

92069-056

$6.41

23

BRACKET-SIGNAL LAMP,FR

23051-1013

$20.20

24

BRACKET-SIGNAL LAMP,FR

23051-1004

Unavailable

25

DAMPER

23066-003

$7.71

26

WIRE-LEAD,SIGNAL LAMP

26011-061

Unavailable

27

COVER-WIRING HARNESS

26009-004

Unavailable

28

SCREW PAN HEAD 3X5

220B0305A

$0.48

29

BOLT-UPSET

112G0630

Unavailable

30

WASHER-PLAIN-SMALL,6MM

410B0600

$0.96

31

WASHER SPRING 6MM

461F0600

Unavailable

32

NUT 6MM

311B0600

Unavailable

33

BOLT

110N0516

Unavailable

34

WASHER SPRING 5MM

461F0500

Unavailable

35

WASHER-PLAIN-SMALL,5MM

410D0500

$1.14

36

LAMP-REAR TURN SIGNAL

23040-033

Unavailable

37

BRACKET-TURN SIG LAMP

23051-041

Unavailable

38

DAMPER RUBBER

92075-148

Unavailable

39

COLLAR 12.7X17.3X30

92027-168

Unavailable

40

SPRING

92081-111

Unavailable

41

WASHER CUP 12.5X35X4T

92022-235

Unavailable

42

CLAMP-RR SIGNAL LAMP

92037-087

Unavailable

43

WASHER-SPRING,12MM

461F1200

Unavailable

44

NUT-HEX-FINE

315B1200

Unavailable

45

KEY,BLANK

27008-1016

$9.12

45

KEY,BLANK

27008-1017

$9.15

45

KEY,BLANK

27008-1018

$13.61

45

KEY,BLANK

27008-1019

$13.61
