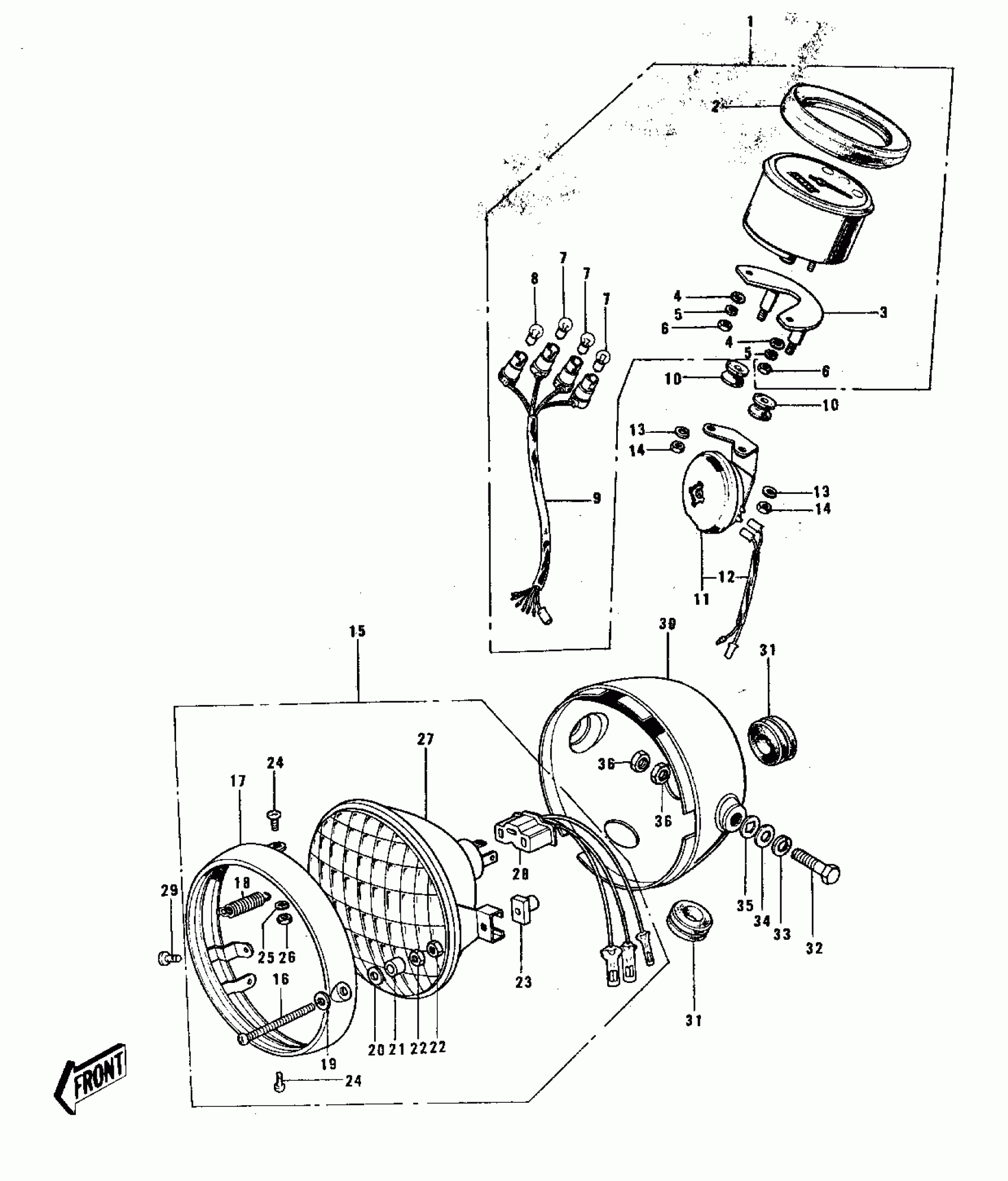

Kawasaki G3SS-D METER/HEADLIGHT ('74-'75) Diagram

#

Description
Price

1

SPEEDOMETER ASSY,MPH

25001-050

$95.61

1

UNAVAILABLE IN PRICE BOOK

25001-065

Unavailable

2

COVER-SPEEDOMETER

25012-003

$21.14

3

BRACKET-SPEEDOMETER

25008-021

$6.36

4

WASHER SPRING 5MM

461F0500

Unavailable

5

WASHER PLAIN 5MM

410B0500

Unavailable

6

NUT-HEX

311B0500

$0.47

7

BULB,6V 1.7W

92069-024

$3.65

8

BULB,6V 3W,CLEAR

92069-053

$3.19

9

SOCKET-SPEEDOMETER

25011-025

$21.98

10

DAMPER

92075-024

$3.35

11

HORN

27003-055

Unavailable

11

HORN

27003-055

Unavailable

12

LEAD WIRE,HORN

26002-023

Unavailable

13

WASHER SPRING 6MM

461F0600

Unavailable

14

NUT 6MM

311B0600

Unavailable

15

LAMP UNIT HEAD

23003-009

Unavailable

16

SCREW ADJUST

23019-013

Unavailable

17

RIM HEAD LAMP

23006-020

Unavailable

18

SPRING LENS FITTING

23014-008

$1.14

19

WASHER,FOCUS ADJUSTING

23021-008

Unavailable

20

WASHER ADJUST

23021-007

$0.63

21

WASHER FITTING

23058-001

$1.64

22

NUT ADJUST

23020-013

$2.08

23

NUT,ADJUSTING

23020-012

$3.53

24

SCREW FITTING

23019-014

Unavailable

25

WASHER SPRING 4MM

461F0400

Unavailable

26

NUT-HEX

311B0400

Unavailable

27

SEALED BEAM UNIT

23007-023

Unavailable

28

SOCKET-ASSY,HEAD LAMP

23008-044

$20.90

29

SCREW OVL CNTSNK 5X8

222E0508A

Unavailable

30

BODY,HEAD LAMP,BLACK

23005-051-21

$23.75

31

GROMMET

23023-011

$5.78

32

BOLT,HEX HEAD,10X25

92007-045

Unavailable

33

WASHER SPRING 10MM

461F1000

Unavailable

34

WASHER-PLAIN,10MM

411B1000

Unavailable

35

WASHER LOCK 10MM

463H1000

$0.69

36

NUT 10MM

92016-027

Unavailable
