1990 Yamaha FZR400 (FZR400A) Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 1990 Yamaha FZR400 (FZR400A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

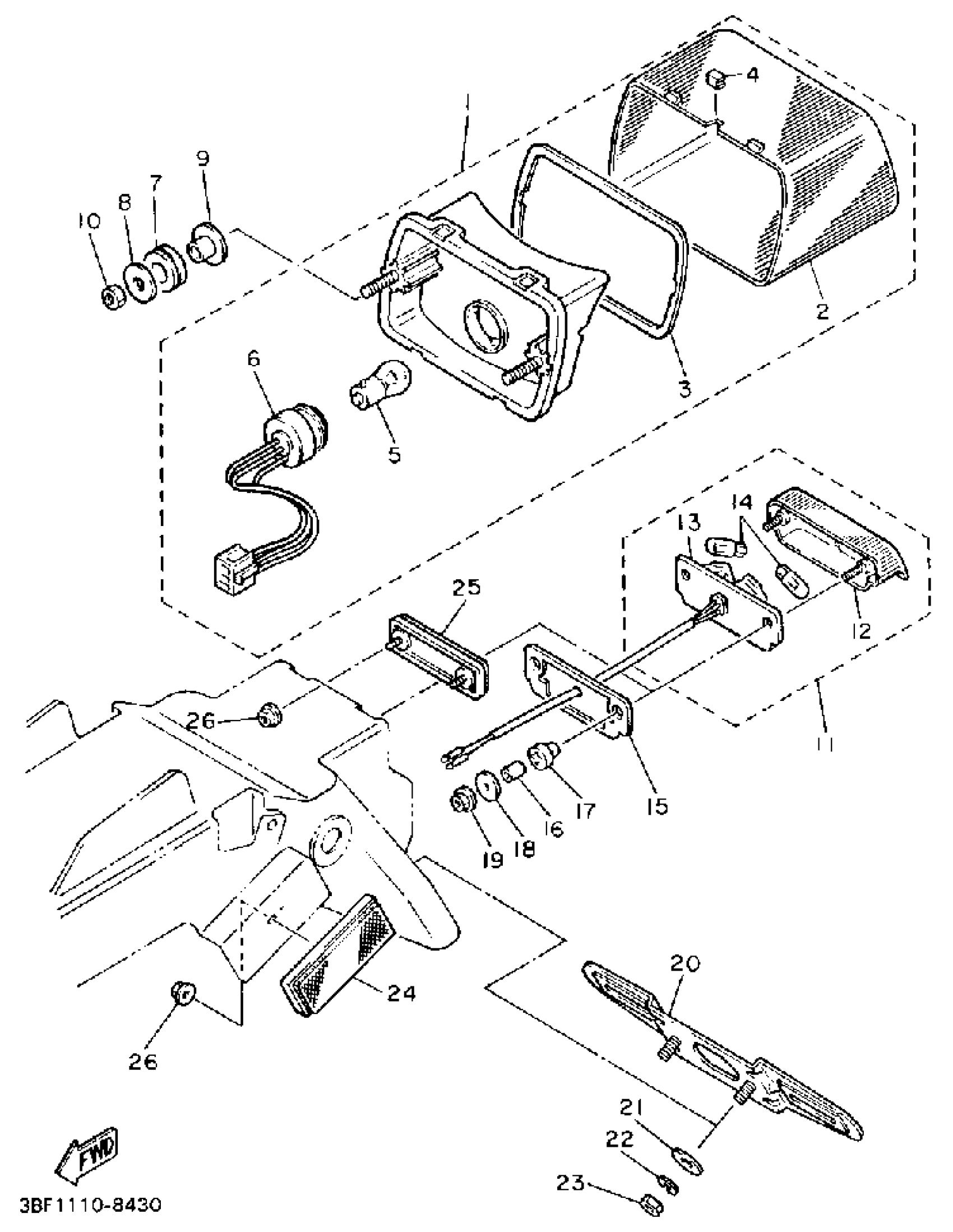

1990 Yamaha FZR400 (FZR400A) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSEMBLY

1UJ-84710-A0-00

1
Out of stock

2

. LENS, TAILLIGHT

1FN-84721-E0-00

1
Out of stock

3

GASKET, TAIL LENS

47X-84723-00-00

—
Out of stock

4

. GROMMET

1A2-84718-40-00

1
Out of stock

5

1

$10.02

In stock

6

. CORD ASSEMBLY

1UJ-84735-A0-00

1
Out of stock

7

GROMMET (4L0)

90480-18276-00

1

$6.48

In stock

8

WASHER, PLATE(36Y)

90201-063J2-00

1

$4.45

In stock

9

COLLAR 8111266500

90387-07037-00

1
Out of stock

10

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

11

LICENSE LIGHT UNIT ASSY (4H3-84745-60-00)

2AX-84745-00-00

1
Out of stock

12

. BODY, LICENSE LIGHT

2AX-84749-00-00

1
Out of stock

13

. BASE, LICENSE LIGHT

2AX-84741-00-00

1
Out of stock

14

. BULB, METER 12V 38W

3F9-84744-00-XX

1
Out of stock

15

SEAT, BASE

3F9-84742-00-00

1
Out of stock

16

COLLAR(53Y)

90387-066H9-00

1
Out of stock

17

DAMPER

3F9-84553-00-00

—
Out of stock

18

WASHER, PLATE (8J0)

90201-05725-00

—

$6.80

In stock

19

NUT, FLANGE(3GM)

95707-05500-00

—

$6.18

In stock

20

BRACKET, LICENSE

99999-02351-00

—

$14.83

In stock

21

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

22

WASHER, SPRING

92907-06100-00

—
Out of stock

23

NUT(JN5)

95317-06700-00

—

$6.69

In stock

24

REAR REFLECTOR ASSY

3Y6-85130-02-00

1

$22.72

In stock

25

REAR REFLECTOR ASSY

1FK-85130-00-00

—
Out of stock

26

NUT, FLANGE(3GM)

95707-05500-00

—

$6.18

In stock
