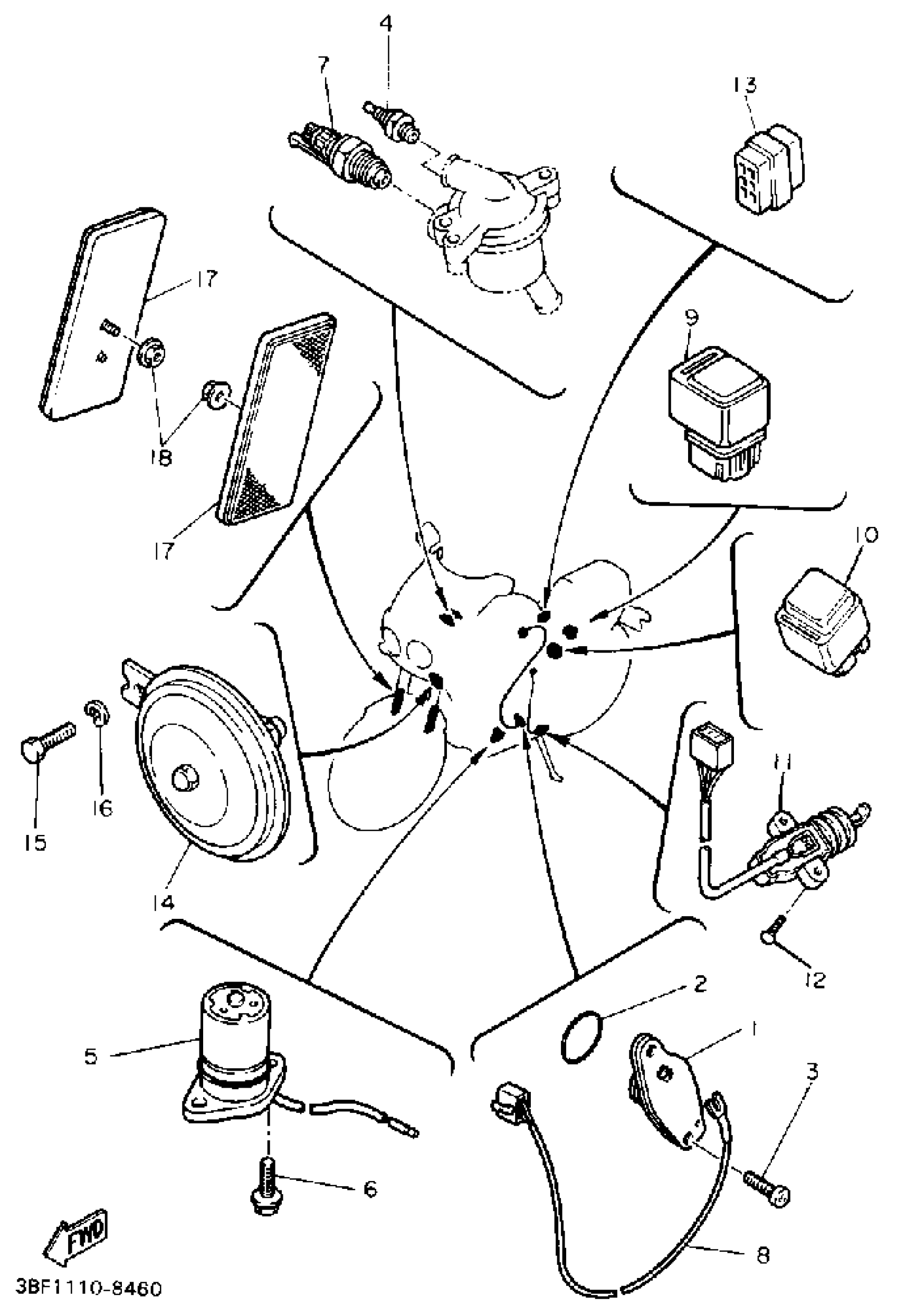

Find the part on the Electrical 2 diagram for your 1990 Yamaha FZR400 (FZR400A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha FZR400 (FZR400A) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NEUTRAL SWITCH ASSY

1AE-82540-00-00

1
Out of stock

2

O-RING (371)

93210-29196-00

1

$6.45

In stock

3

SCREW, PAN

98507-06014-00

1

$6.18

In stock

4

THERMO UNIT

11H-83591-00-00

1
Out of stock

5

OIL LEVEL GAUGE ASSEMBLY

1WG-85720-00-00

1
Out of stock

6

BOLT, WASHER BASED(JA9)

90105-06696-00

1

$6.29

In stock

7

THERMO SWITCH ASSY

3LN-82560-01-00

—
Out of stock

8

WIRE, LEAD

1WG-82541-00-00

1
Out of stock

9

RELAY ASSY

25G-81950-02-00

1
Out of stock

10

RELAY ASSY

4U8-81950-03-00

—
Out of stock

11

SWITCH, SIDE STAND

3FH-82566-00-00

1
Out of stock

12

SCREW, FLAT

98707-05014-00

1

$7.68

In stock

13

FLASHER RELAY ASSY

41R-83350-72-00

—
Out of stock

14

HORN

4LR-83371-11-00

1

$45.46

In stock

15

BOLT(3JP)

97017-06010-00

1

$2.62

In stock

16

WASHER, SPRING

92907-06100-00

—
Out of stock

17

FRONT REFLECTOR ASSY

11H-85110-01-00

—

$20.92

In stock

18

NUT, FLANGE(3GM)

95707-05500-00

—

$6.18

In stock
