1990 Yamaha FZR400 (FZR400A) Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1990 Yamaha FZR400 (FZR400A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

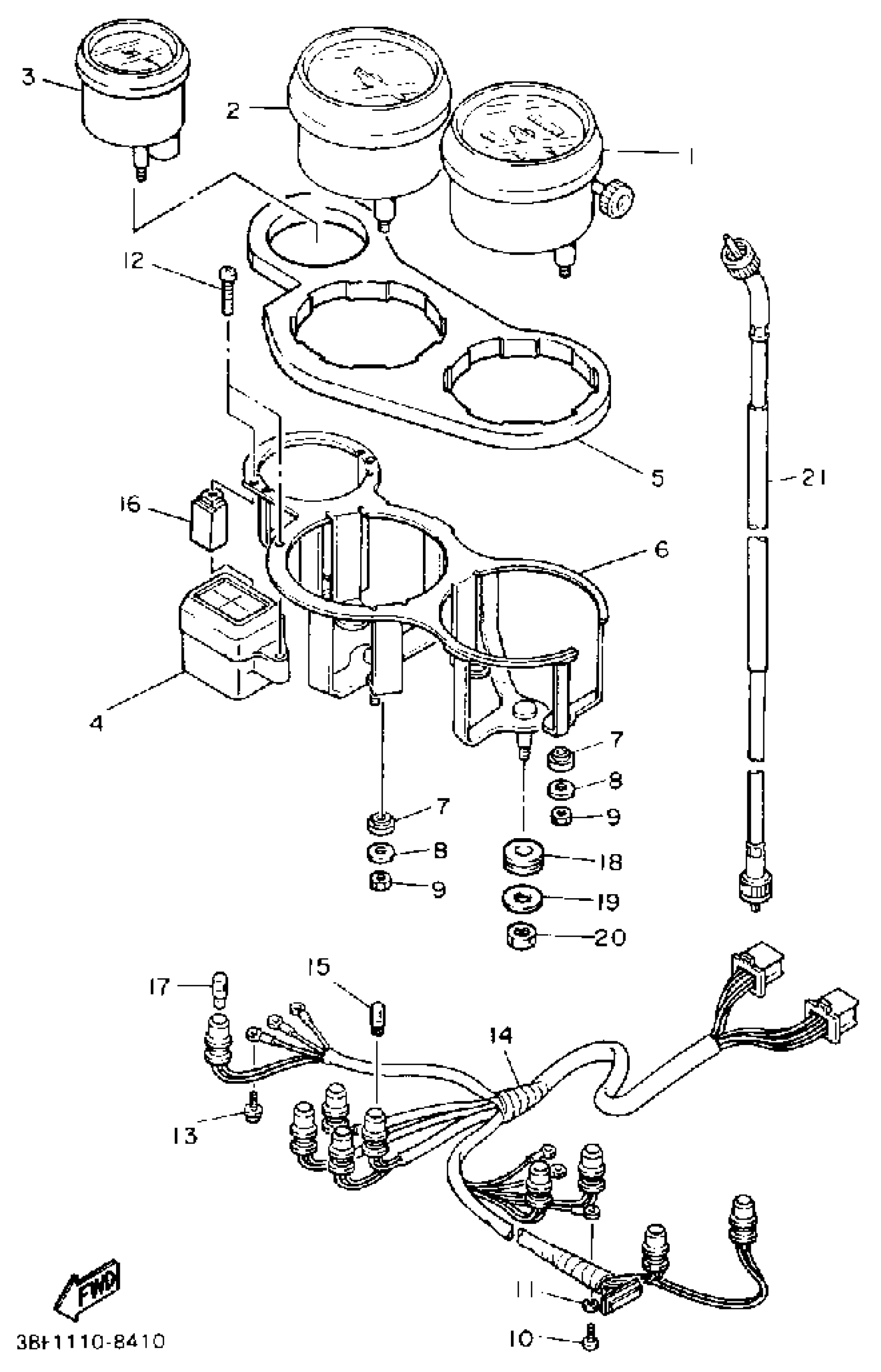

1990 Yamaha FZR400 (FZR400A) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

3FH-83570-00-00

1
Out of stock

2

TACHOMETER ASSEMBLY

3FH-83540-00-00

1
Out of stock

3

WATER TEMP METERASSEMBLY

1WG-83590-00-00

1
Out of stock

4

PILOT LIGHT

2KK-83530-00-00

1
Out of stock

5

DAMPER

1WG-83513-00-00

1
Out of stock

6

BRACKET, METER

1WG-83519-00-00

1
Out of stock

7

DAMPER, METER COVER FITTING

584-83523-00-00

—
Out of stock

8

WASHER PLATE 803835240000

90201-05032-00

—

$6.71

In stock

9

NUT, HEXAGON

95317-05600-00

1

$1.10

In stock

10

SCREW, PAN HEAD(3KS)

98507-03012-00

—
Out of stock

11

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

12

—

$5.77

In stock

13

SCREW, WITH WASHER(36Y)

90159-03102-00

—
Out of stock

14

SOCKET CORD ASSEMBLY

3FH-83520-00-00

1
Out of stock

15

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

16

NUT, PILOT LIGHT

1WG-83588-00-00

1
Out of stock

17

BULB (12V-1.7W)

3GM-83517-00-00

—
Out of stock

18

GROMET (3X3)

90480-14229-00

—

$6.17

In stock

19

WASHER, PLATE 8221447500

90201-06057-00

—
Out of stock

20

NUT(6TA)

95317-06600-00

—

$2.69

In stock

21

SPD MTR CABLE

46X-83550-01-00

1
Out of stock
