1990 Yamaha FZR400 (FZR400A) Headlight Diagram

← All diagrams

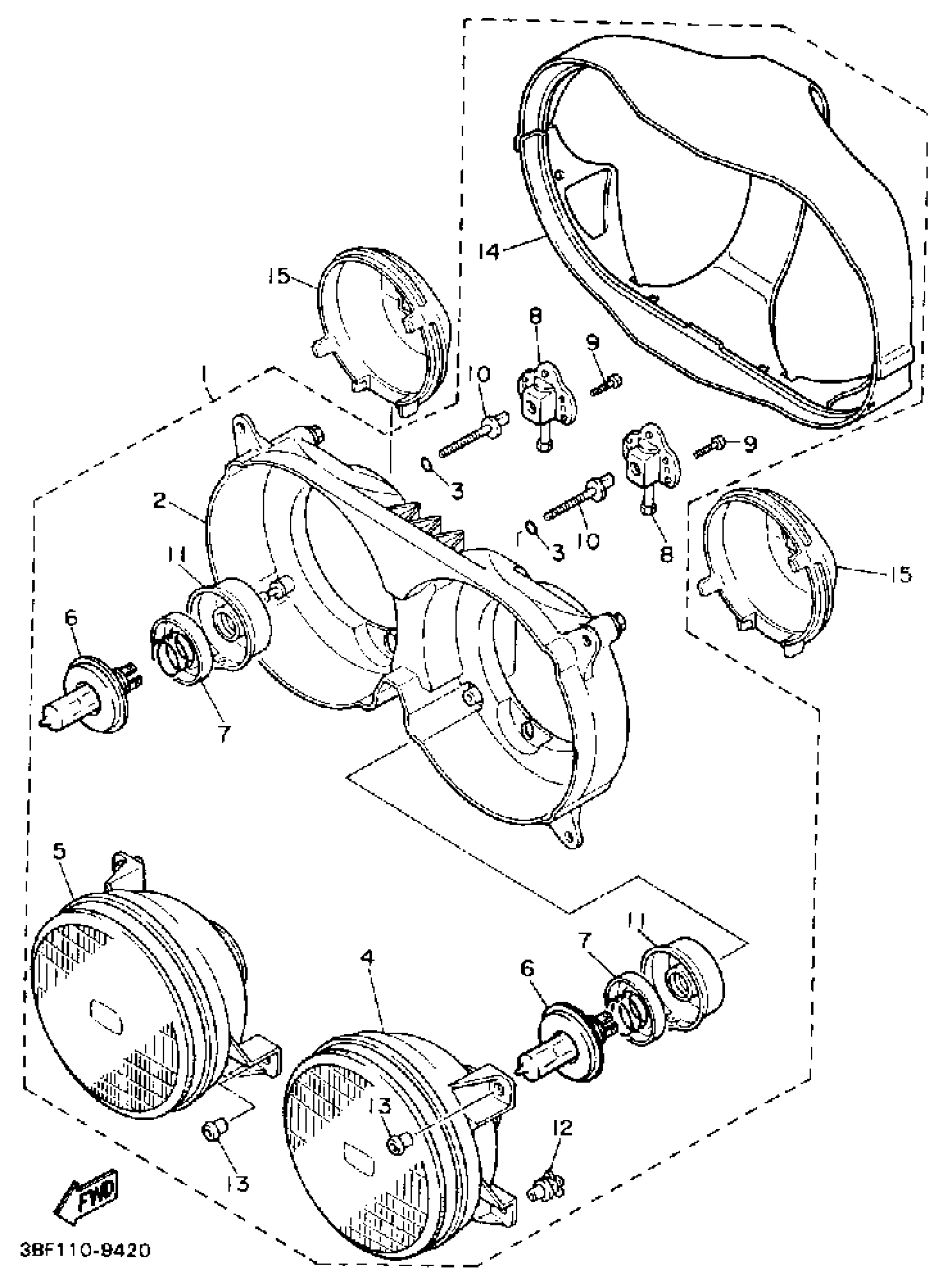

Find the part on the Headlight diagram for your 1990 Yamaha FZR400 (FZR400A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha FZR400 (FZR400A) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSEMBLYASSY

3BF-84310-00-00

1
Out of stock

2

BODY ASSEMBLY.

2AX-84330-00-00

1
Out of stock

3

O-RING (26H)

93210-06632-00

1

$6.68

In stock

4

. LENS ASSEMBLY

3BF-84320-00-00

1
Out of stock

5

. LENS ASSEMBLY

3BF-8432A-00-00

1
Out of stock

6

BULB, HEADLIGHT

1ML-84314-00-XX

1
Out of stock

7

SETTING PLATE, BULB

2F9-84375-00-00

—

$12.66

In stock

8

GEAR UNIT ASY

3LD-8430M-00-00

1
Out of stock

9

SCREW, TAPPING(4HP)

97707-40616-00

1

$1.23

In stock

10

SCREW, RIM ADJUSTING

2AX-84331-00-00

1
Out of stock

11

COVER, SOCKET

2F9-84397-01-00

1

$27.82

In stock

12

HOLDER

3AJ-8431U-00-00

1
Out of stock

13

. SPRING, SCREW

51L-84332-00-00

1

$3.38

In stock

14

. COVER

3BF-84396-00-00

1
Out of stock

15

. COVER, SOCKET

46X-84397-01-00

1
Out of stock
