1990 Yamaha FZR400 (FZR400A) Swing Arm Diagram

← All diagrams

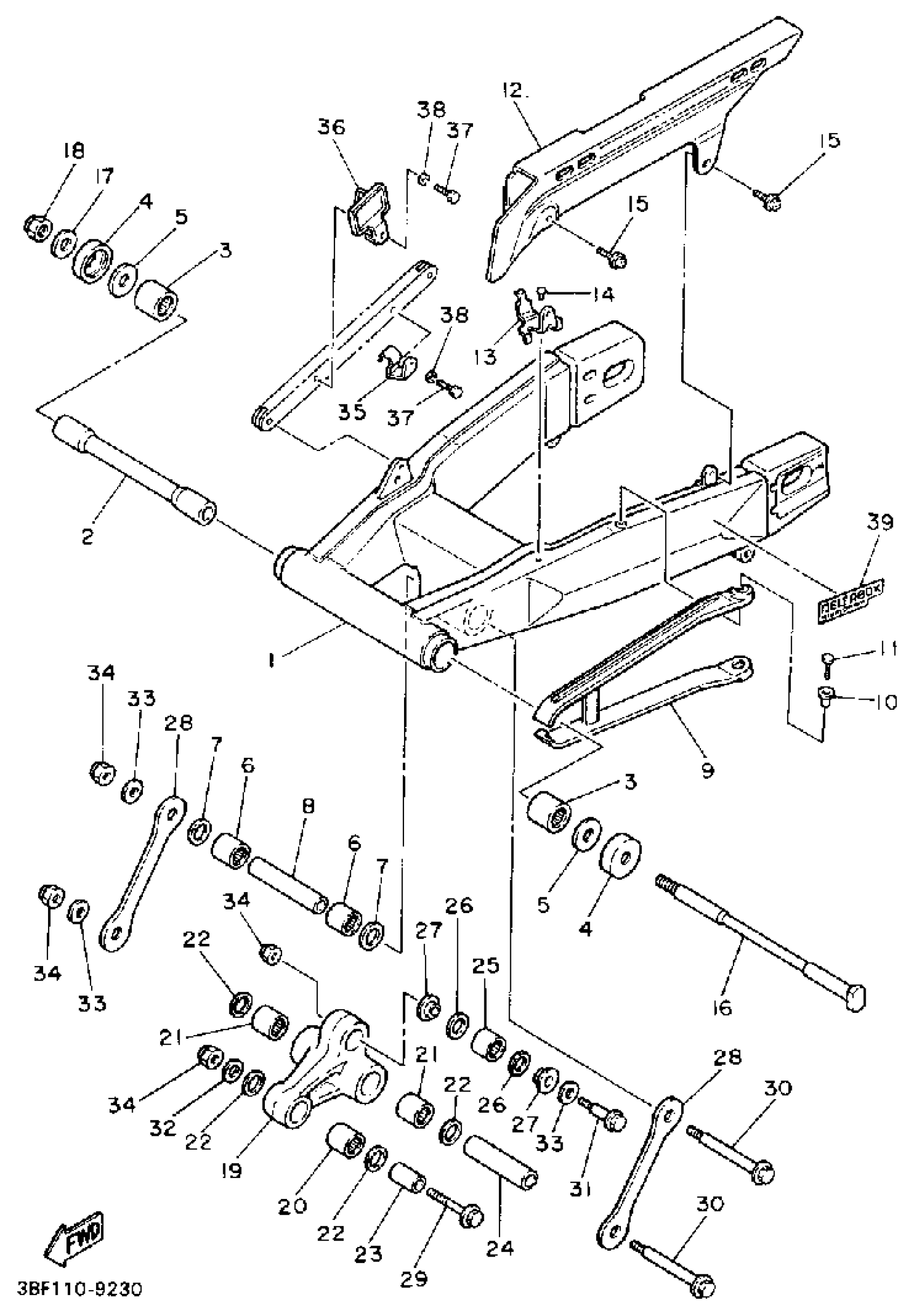

Find the part on the Swing Arm diagram for your 1990 Yamaha FZR400 (FZR400A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha FZR400 (FZR400A) Swing Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR ARM

3EN-22110-50-00

1
Out of stock

2

BUSH

33M-22184-00-00

1
Out of stock

3

BEARING (4X7)

93320-32403-00

1
Out of stock

4

COVER, THRUST 2

47X-22129-00-00

1
Out of stock

5

WASHER, PLATE(47X)

90201-161J2-00

—
Out of stock

6

BEARING, CYLINDRICAL(39K)

93317-21746-00

1
Out of stock

7

OIL SEAL(38V)

93109-17048-00

1
Out of stock

8

COLLAR(1WG)

90387-122R5-00

1
Out of stock

9

PROTECTOR CHAIN

3EN-22147-50-00

1
Out of stock

10

COLLAR (8G8)

90387-06681-00

1
Out of stock

11

SCREW, PAN HEAD(3TJ)

98507-06016-00

1
Out of stock

12

CASE, CHAIN

3BF-22311-50-00

1
Out of stock

13

STAY, CHAIN CASE 1

3EN-22321-50-00

1
Out of stock

14

RIVET, BLIND

90267-48117-00

1
Out of stock

15

SCREW, WITH WASHER (3T2)

90159-06058-00

1
Out of stock

16

SHAFT, PIVOT

46X-22141-00-00

—
Out of stock

17

WASHER PLATE (3L6)

90201-14740-00

—
Out of stock

18

NUT, SELF-LOCKING (1J7)

90185-14070-00

—
Out of stock

19

ARM, RELAY

(1WG-2217A-00-00)

1
Out of stock

20

BRG,CYL-CAL ROLLER 20G NT

93317-31701-00

—
Out of stock

21

BEARING, CYLINDRICAL(39K)

93317-21746-00

1
Out of stock

22

OIL SEAL(38V)

93109-17048-00

1
Out of stock

23

COLLAR(1WG)

90387-102R4-00

—
Out of stock

24

COLLAR(1WG)

90387-122R5-00

1
Out of stock

25

BEARING(47X)

93399-99919-00

—
Out of stock

26

OIL SEAL(47X)

93101-16131-00

—
Out of stock

27

COLLAR(3BC)

90387-124W2-00

—
Out of stock

28

ARM 1

1WG-2217M-00-00

1
Out of stock

29

BOLT, WASHER BASED(1FK)

90105-10376-00

—
Out of stock

30

BOLT(1WG)

90101-10658-00

—
Out of stock

31

BOLT(1WG)

90101-10659-00

—
Out of stock

32

WASHER, PLATE (3L6)

90201-10774-00

—
Out of stock

33

WASHER, PLATE(47X)

90201-101J1-00

—
Out of stock

34

NUT, U

95614-10100-00

—
Out of stock

35

HOLDER, BRKE HOSE 2HOSE 2

3EN-25876-50-00

1
Out of stock

36

HOLDER, BRAKE HOSE

3EN-25886-50-00

1
Out of stock

37

BOLT(3JP)

97017-06010-00

—
Out of stock

38

WASHER, SPRING

92995-06100-00

1
Out of stock

39

EMBLEM, REAR ARM

3EN-2218A-51-00

1
Out of stock
