1990 Yamaha FZR400 (FZR400A) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1990 Yamaha FZR400 (FZR400A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

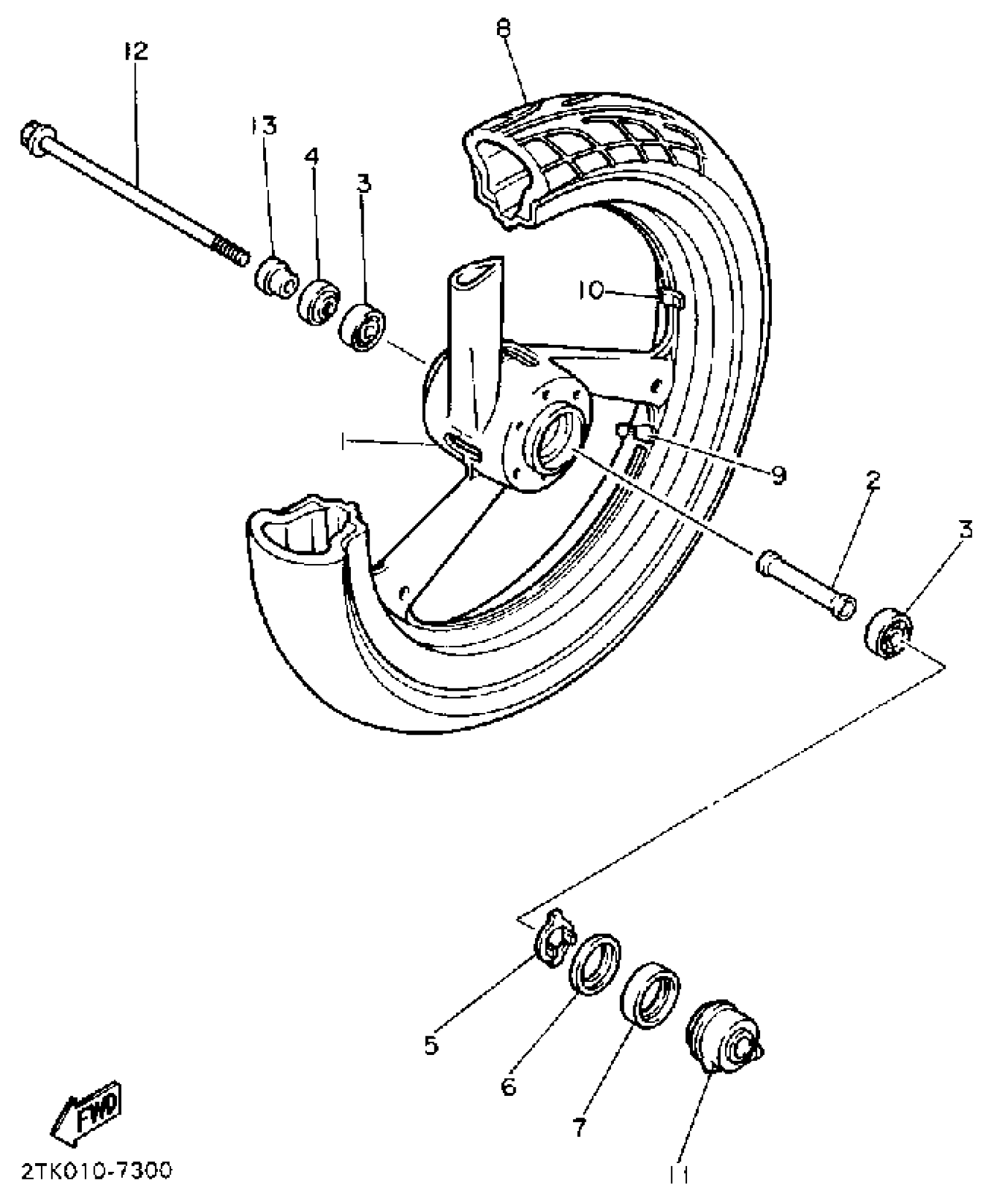

1990 Yamaha FZR400 (FZR400A) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, CAST FRONT

1WG-25168-00-WG

1
Out of stock

2

SPACER

90560-15314-00

1
Out of stock

3

BEARING

93306-30212-00

1

$33.35

In stock

4

OIL SEAL (22X42X7)

93102-22014-00

1

$10.68

In stock

5

CLUTCH, METER (371,447)

341-25149-00-00

1
Out of stock

6

RETAINER, CLUTCH (371,447)

341-25846-00-00

1
Out of stock

7

OIL SEAL (45X56X6)

93105-45017-00

1
Out of stock

8

110/70R1754HCY15BS (MCR 110/70R17 54H)

94111-177W1-00

1
Out of stock

9

VALVE, RIM(2GH)

93900-00030-00

1

$14.46

In stock

10

BALANCER, WHEEL

5MT-25398-00-00

1

$15.54

In stock

10

BALANCER, WHEEL

5MT-25398-10-00

1

$15.37

In stock

10

BALANCER, WHEEL

5MT-25398-20-00

—

$38.22

In stock

11

GEAR UNIT ASSY

4X8-25190-10-00

—
Out of stock

12

AXLE, WHEEL

42X-25181-00-00

1
Out of stock

13

COLLAR (1L9)

90387-15550-00

1
Out of stock
