1990 Yamaha FZR400 (FZR400A) Handlebar Cable Diagram

← All diagrams

Find the part on the Handlebar Cable diagram for your 1990 Yamaha FZR400 (FZR400A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

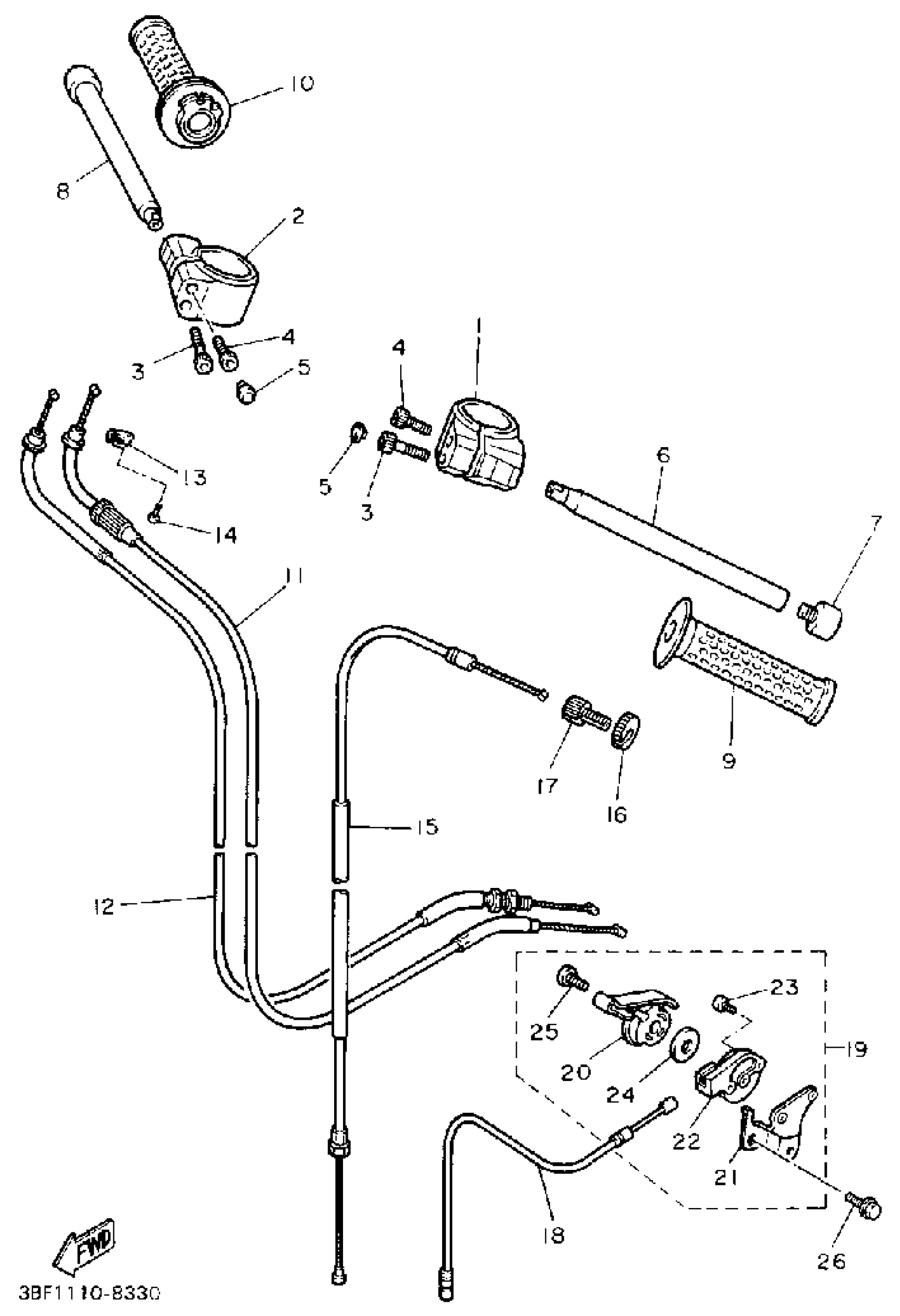

1990 Yamaha FZR400 (FZR400A) Handlebar Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR LH

2TK-26121-00-00

1
Out of stock

2

HANDLEBAR RH

2TK-26122-00-00

1
Out of stock

3

BOLT, SOCKET

91317-08030-00

1

$6.17

In stock

4

BOLT, SOCKET

91317-08025-00

1

$6.25

In stock

5

CAP, BOLT (371,447)

341-23469-00-00

1

$8.55

In stock

6

HANDLEBAR

1WG-26111-00-00

1
Out of stock

7

END, GRIP

1WG-26246-00-00

1
Out of stock

8

BAR, HANDLE

1WG-26112-00-00

1
Out of stock

9

GRIP (LEFT)

1KG-26241-00-00

1
Out of stock

10

GRIP ASSY

3FH-26240-00-00

—
Out of stock

11

CABLE, THROTTLE 1

3FH-26311-00-00

1
Out of stock

12

CABLE, THROTTLE 2

3FH-26312-00-00

1
Out of stock

13

HOLDER

5H0-26393-00-00

1

$6.72

In stock

14

GASKET, EXHAUST

98507-05008-00

1

$2.69

In stock

15

CABLE, CLUTCH

1WG-26335-00-00

1
Out of stock

16

NUT

90179-08030-00

—

$3.78

In stock

17

BOLT

90123-08002-00

—

$8.93

In stock

18

CABLE, STARTER 1

1WG-26331-00-00

1
Out of stock

19

STARTER ASSY

1WG-83940-01-00

1
Out of stock

20

LEVER, STARTER

1WG-83941-01-00

1
Out of stock

21

. STAY 2

1WG-28357-00-00

1
Out of stock

22

COVER, STARTER

1WG-83942-00-00

—
Out of stock

23

SCREW, BINDING

98907-03006-00

—
Out of stock

24

WASHER (357)

90209-10131-00

—

$7.94

In stock

25

SCREW, BINDING

98907-06008-00

—

$6.68

In stock

26

BOLT, FLANGE

95817-06020-00

—

$2.69

In stock
