1990 Yamaha FZR400 (FZR400A) Front Fork Diagram

← All diagrams

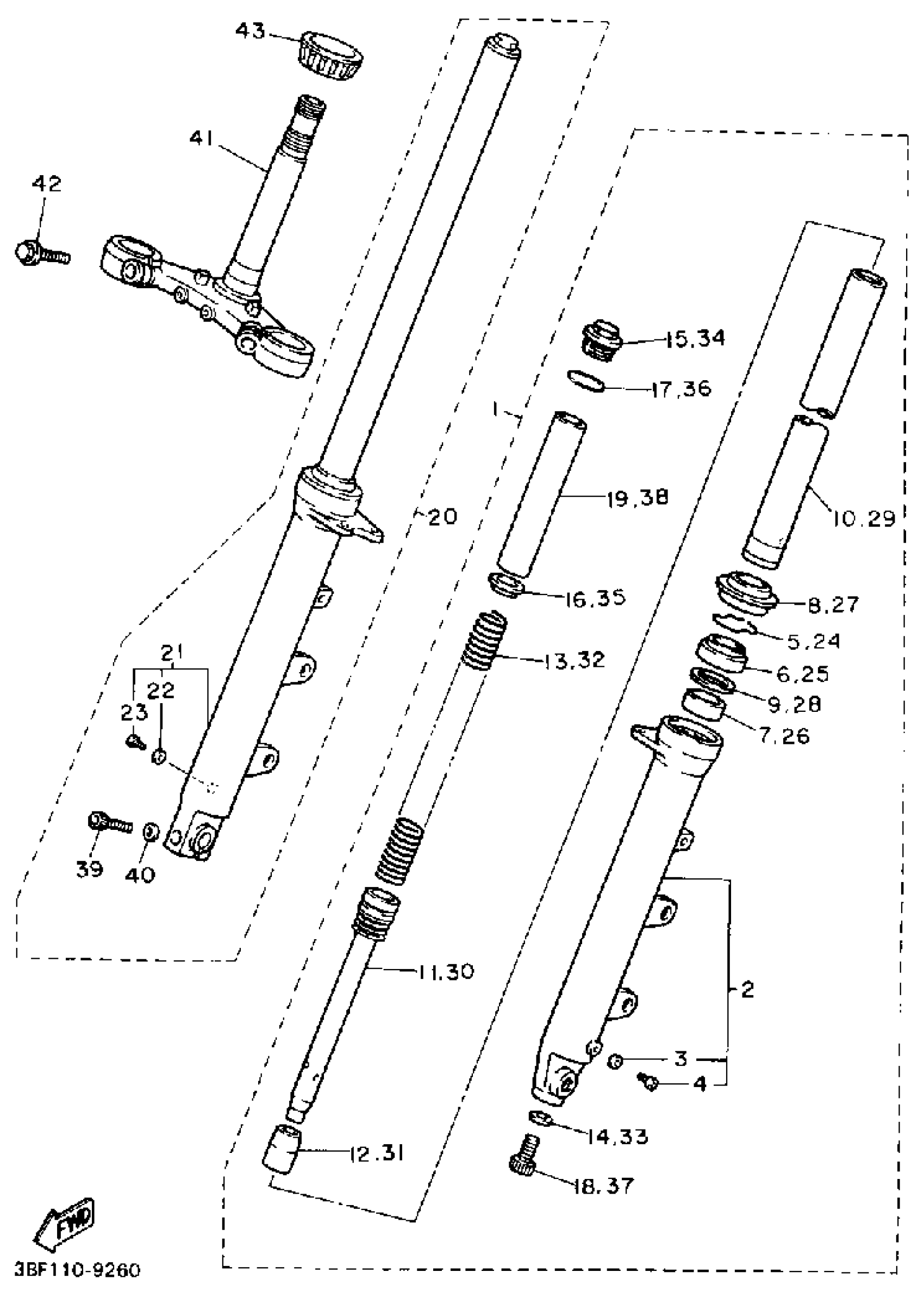

Find the part on the Front Fork diagram for your 1990 Yamaha FZR400 (FZR400A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha FZR400 (FZR400A) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY L (L.H)

3BF-23102-50-00

1
Out of stock

2

. TUBE, OUTER 1

3EN-23126-00-00

1
Out of stock

3

GASKET, DRAIN PLUG

122-23129-00-00

1

$6.37

In stock

4

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

5

RING, SNAP

3R4-23153-00-00

1

$7.51

In stock

6

OIL SEAL

3EN-23145-00-00

1

$22.96

In stock

7

METAL, SLIDE 1

2YK-23125-00-00

1
Out of stock

8

SEAL, DUST

3EN-23144-01-00

1

$22.42

In stock

9

WASHER

4V2-23146-L0-00

1
Out of stock

10

. INNER TUBE COMP 1

3BF-23110-50-00

1
Out of stock

11

. CYLINDER COMP, FRONT FORK

3HE-23170-00-00

1
Out of stock

12

SPINDLE, TAPER

2YK-23173-00-00

—
Out of stock

13

. SPRING, FRONT FORK

1WG-23141-00-00

1
Out of stock

14

GASKET

509-23158-L0-00

1

$14.34

In stock

15

. BOLT, CAP

3EN-23111-00-00

1
Out of stock

16

. SEAT, SPRING UPPER

1FK-23142-00-00

1
Out of stock

17

O-RING

1W4-23114-L0-00

—

$7.45

In stock

18

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

19

. SPACER

1WG-23118-00-00

1
Out of stock

20

FRONT FORK ASSEMBLY R (R.H)

3BF-23103-50-00

1
Out of stock

21

. TUBE, OUTER 2

3EN-23136-00-00

1
Out of stock

22

GASKET, DRAIN PLUG

122-23129-00-00

1

$6.37

In stock

23

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

24

RING, SNAP

3R4-23153-00-00

1

$7.51

In stock

25

OIL SEAL

3EN-23145-00-00

1

$22.96

In stock

26

METAL, SLIDE 1

2YK-23125-00-00

1
Out of stock

27

SEAL, DUST

3EN-23144-01-00

1

$22.42

In stock

28

WASHER

4V2-23146-L0-00

1
Out of stock

29

. INNER TUBE COMP 1

3BF-23110-50-00

1
Out of stock

30

. CYLINDER COMP, FRONT FORK

3HE-23170-00-00

1
Out of stock

31

SPINDLE, TAPER

2YK-23173-00-00

—
Out of stock

32

. SPRING, FRONT FORK

1WG-23141-00-00

1
Out of stock

33

GASKET

509-23158-L0-00

1

$14.34

In stock

34

. BOLT, CAP

3EN-23111-00-00

1
Out of stock

35

. SEAT, SPRING UPPER

1FK-23142-00-00

1
Out of stock

36

O-RING

1W4-23114-L0-00

—

$7.45

In stock

37

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

38

. SPACER

1WG-23118-00-00

1
Out of stock

39

BOLT,SOCKET

91314-08040-00

—
Out of stock

40

WASHER PLATE 141181390000

90201-08085-00

—

$6.38

In stock

41

UNDER BRACKET COMP.

1WG-23340-01-00

1
Out of stock

42

BOLT 2

2NX-23356-00-00

—
Out of stock

43

BRG, TAPERED ROLLER (409)

93332-00001-00

—
Out of stock
