2010 Kawasaki Fury 125R Kickstarter Mechanism Diagram

← All diagrams

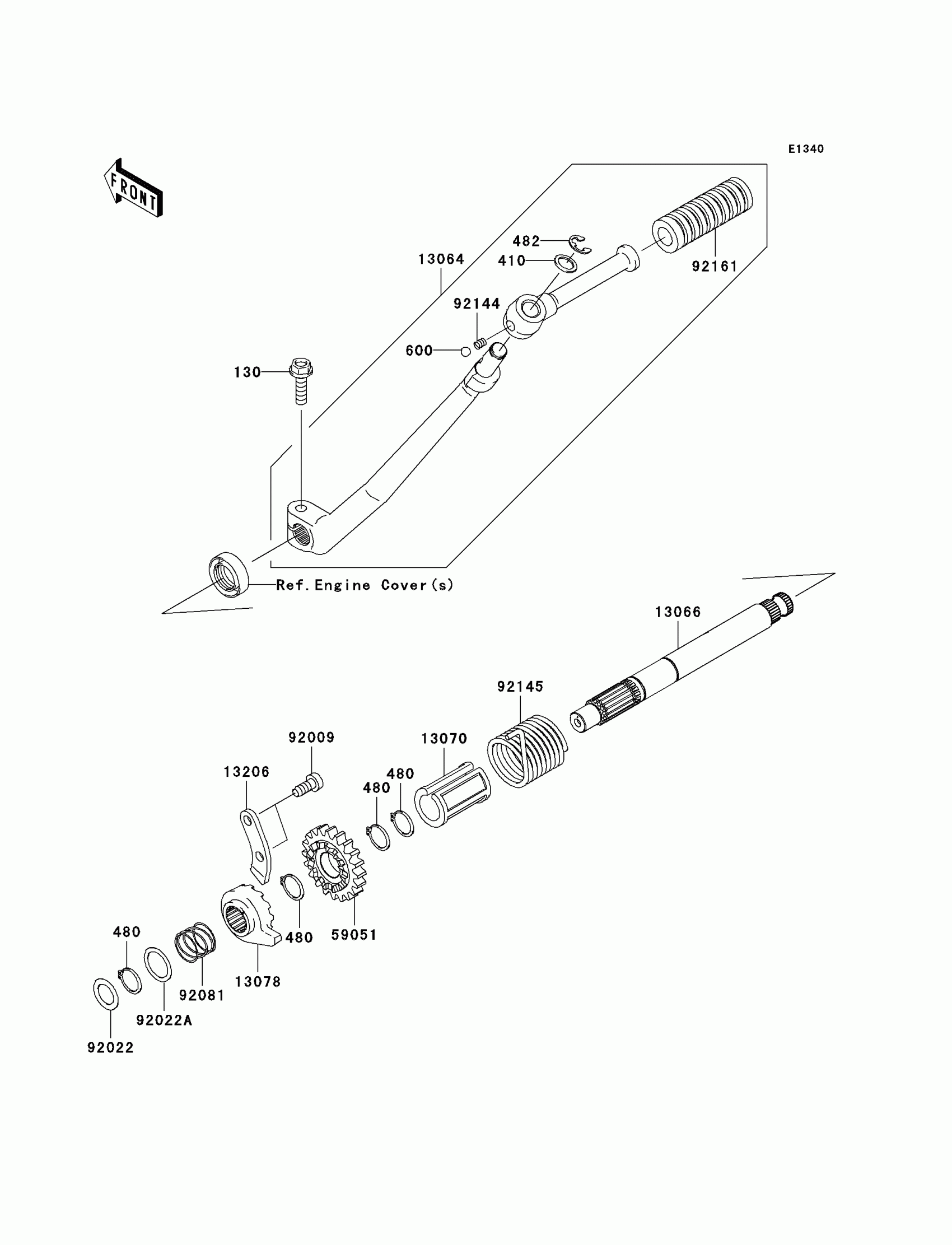

Find the part on the Kickstarter Mechanism diagram for your 2010 Kawasaki Fury 125R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki Fury 125R Kickstarter Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X22

130CB0622

1

$2.58

In stock

410

1

$0.63

In stock

480

1

$3.43

In stock

482

CIRCLIP-TYPE-E,8MM

482EA8000

1

$0.73

In stock

600

BALL-STEEL,1/4

600A0800

1

$0.67

In stock

13064

LEVER-ASSY-KICK

13064-0055

1

$70.72

In stock

13066

SHAFT-KICK

13066-1108

1
Out of stock

13070

GUIDE,KICK SHAFT

13070-1035

1

$7.81

In stock

13078

RATCHET

13078-1069

1

$19.15

In stock

13206

GUIDE-KICK

13206-1006

1

$7.81

In stock

59051

1

$30.93

In stock

92009

SCREW,TAPPING

92009-1104

1
Out of stock

92022

WASHER,13.2X20X0.5

92022-1224

1

$3.43

In stock

92022A

WASHER,16.8X22X0.5

92022-315

1
Out of stock

92081

SPRING,RATCHET

92081-122

1

$6.98

In stock

92144

SPRING,KICK PEDAL

92144-1791

1

$0.76

In stock

92145

SPRING,KICK STARTER

92145-0626

1

$4.63

In stock

92161

DAMPER

92161-1250

1

$1.44

In stock
