Description

Price

220

SCREW-PAN-CROSS,6X14

220AA0614

$1.14

220A

SCREW-PAN-CROS,6X12

220AD0612

$3.24

220B

SCREW-PAN-CROS,6X50

220AD0650

$2.63

220C

SCREW-PAN-CROS,6X75

220AD0675

$3.42

235

SCREW-PAN-WP-CROS,5X10

235AA0510

$2.79

235A

SCREW-PAN-WP-CROS,6X14

235AA0614

$3.75

601

BEARING-BALL

601A6201

$8.12

601A

BEARING-BALL,#6203

601A6203

$10.67

670

O RING,9.8X1.9

670B1510

$3.29

11009

GASKET,8.2X14X1.0

11009-1344

$2.11

11061

GASKET,DRAIN PLUG

11061-0265

$4.45

13070

GUIDE

13070-1319

$0.95

14080

CRANKCASE,RH

14080-0080

$108.98

14080A

CRANKCASE,LH

14080-0267

$98.09

32151

PIPE

32151-1961

$5.58

39193

PIPE-OIL

39193-1042

$44.60

92004

STUD,8X192

92004-0030

$5.59

92043

PIN,6.2X8X14

92043-0099

$2.82

92045

BEARING-BALL,6804

92045-1171

$30.44

92046

BEARING-NEEDLE,HK1312

92046-1148

$14.13

92049

SEAL-OIL

92049-1429

$10.47

92051

SEAL-OIL,TB13225.5

92051-005

$5.91

92066

PLUG,OIL DRAIN,12X15

92066-1174

$4.64

92150

BOLT,BANJO,8X20

92150-1556

$4.33

92153

BOLT,8X15.5

92153-1823

Unavailable

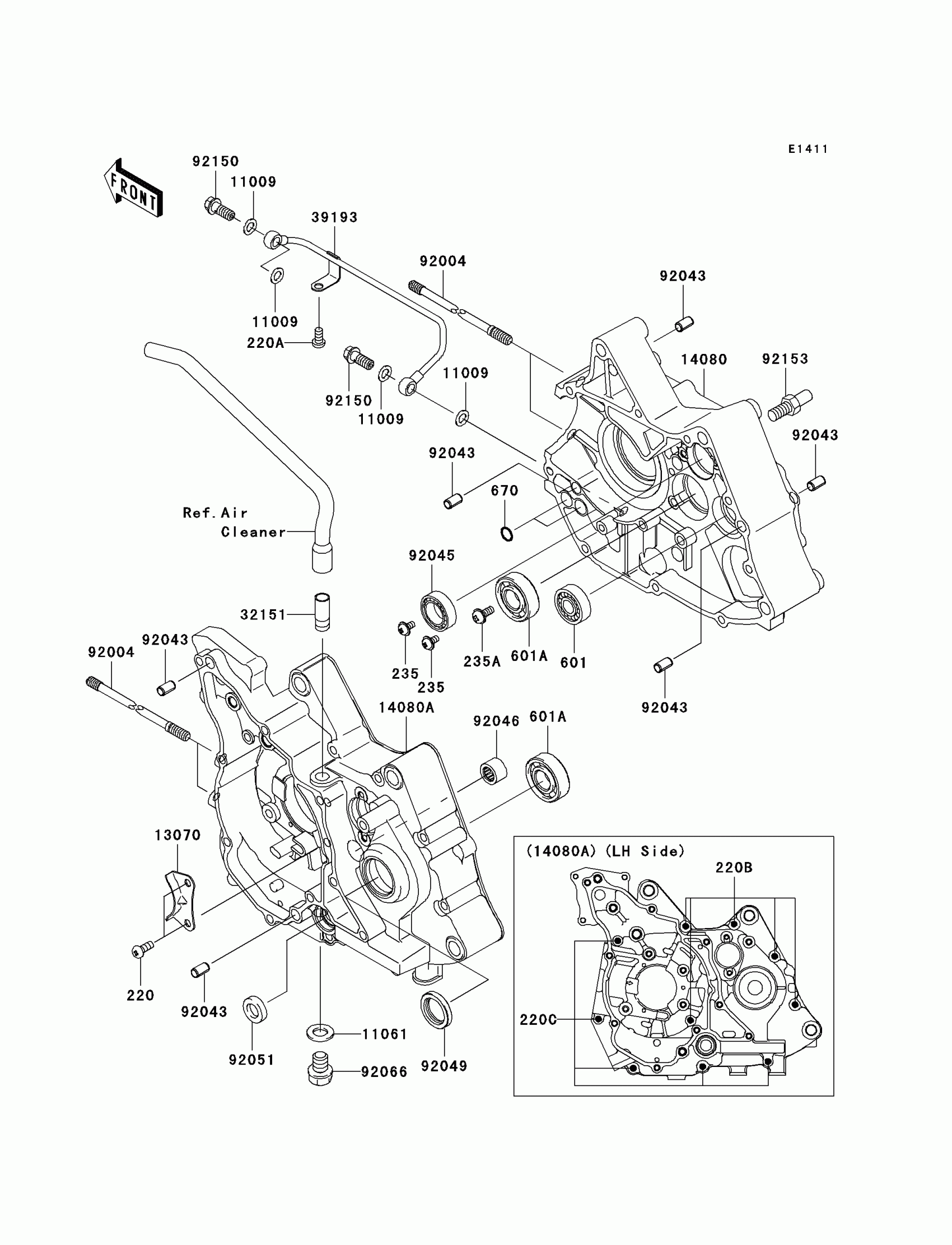

Kawasaki Fury 125R Crankcase Diagram
