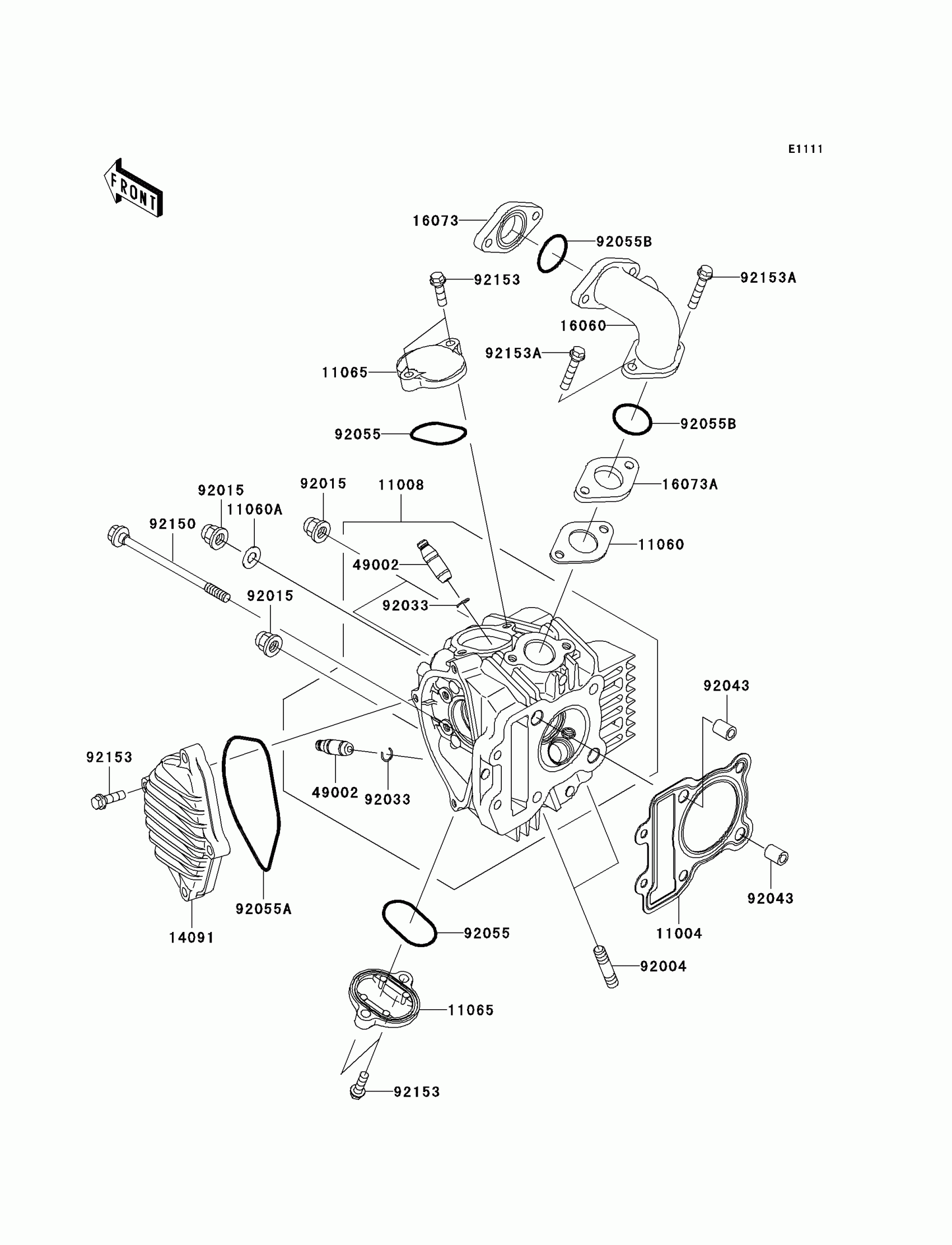

Find the part on the Cylinder Head diagram for your 2010 Kawasaki Fury 125R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki Fury 125R Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-0075

1
Out of stock

11008

HEAD-COMP-CYLINDER

11008-0162

1
Out of stock

11060

GASKET,INTAKE PIPE

11060-1753

1
Out of stock

11060A

GASKET

11060-1862

1
Out of stock

11065

CAP,VALVE ADJUSTING

11065-1177

1
Out of stock

14091

COVER,CAMSHAFT

14091-1447

1
Out of stock

16060

PIPE-INTAKE

16060-0021

1
Out of stock

16073

INSULATOR,CARBURETOR

16073-1102

1
Out of stock

16073A

INSULATOR,HEAD

16073-1108

1
Out of stock

49002

GUIDE-VALVE

49002-1130

—
Out of stock

92004

STUD,8X28.5

92004-1234

1
Out of stock

92015

NUT,CAP,8MM

92015-1151

1
Out of stock

92033

RING-SNAP

92033-1247

1
Out of stock

92043

PIN,8.2X10X14

92043-0100

1
Out of stock

92055

RING-O,ADJUST CAP

92055-1231

1
Out of stock

92055A

RING-O,91X2.5

92055-1527

1
Out of stock

92055B

RING-O,25.5X2.0

92055-1528

1
Out of stock

92150

BOLT,6X106

92150-1761

1
Out of stock

92153

BOLT,6X20

92153-1184

1
Out of stock

92153A

BOLT,FLANGED,6X30

92153-1187

1
Out of stock
