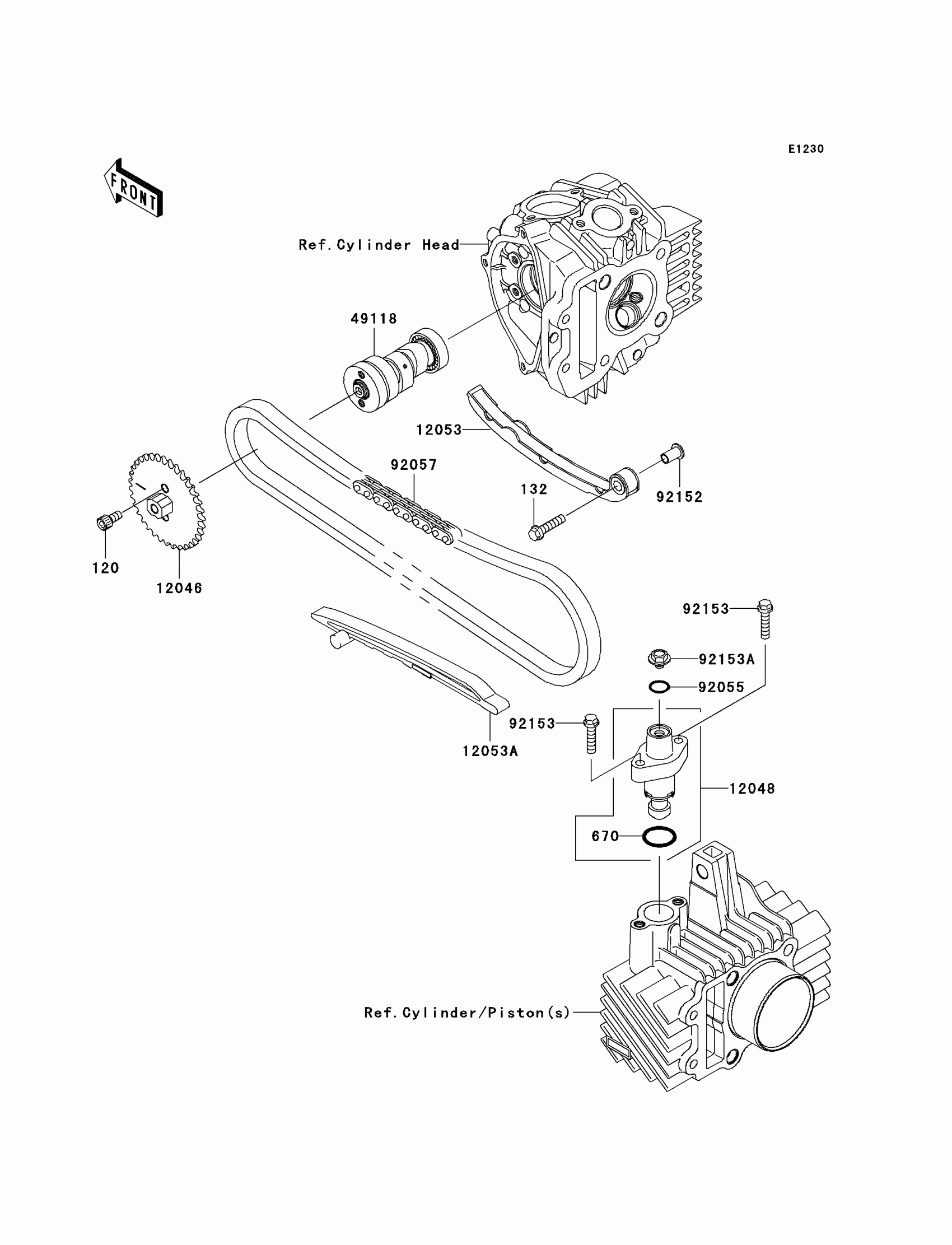

Kawasaki Fury 125R Camshaft(s)/Tensioner Diagram

Description

Price

120

BOLT-SOCKET,6X12

120CA0612

$1.27

132

BOLT-FLANGED-SMALL,6X25

132BA0625

$1.98

670

O RING,21MM

670D2021

$5.13

12046

SPROCKET,CAM CHAIN,36T

12046-1206

$33.81

12048

TENSIONER-ASSY

12048-1164

$49.01

12053

GUIDE-CHAIN,LOOSE

12053-1397

Unavailable

12053A

GUIDE-CHAIN

12053-1461

$3.01

49118

CAMSHAFT-COMP

49118-0124

$150.42

92055

RING-O,9.8X2.4

92055-0060

$2.15

92057

CHAIN,CAM

92057-0120

$81.55

92152

COLLAR,CHAIN GUIDE

92152-1369

$2.19

92153

BOLT,6X25

92153-1185

$4.09

92153A

BOLT,TENSIONER

92153-1945

$1.32
