1998 Ski-Doo Formula S Electric Steering System Diagram

← All diagrams

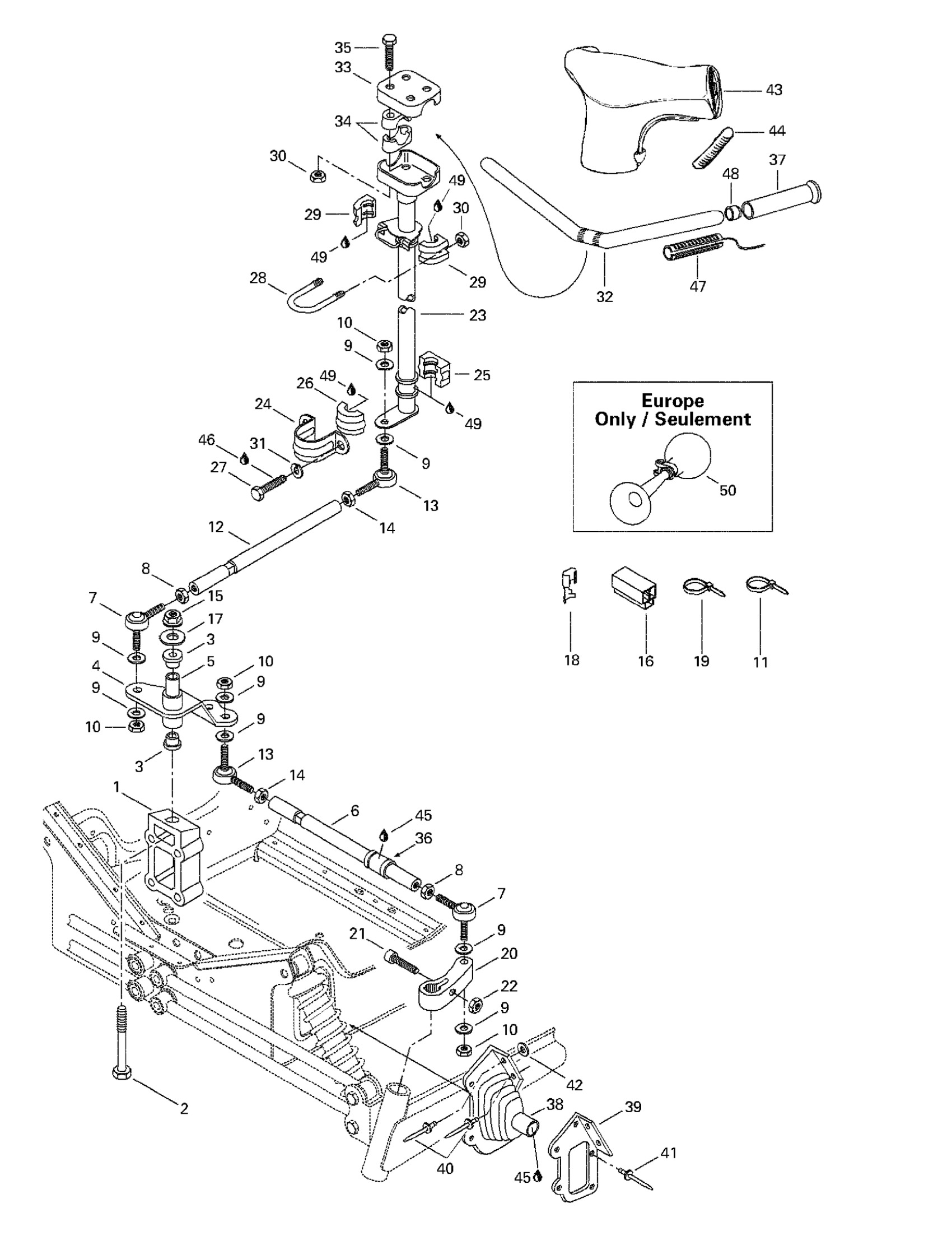

Find the part on the Steering System diagram for your 1998 Ski-Doo Formula S Electric, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Ski-Doo Formula S Electric Steering System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

Block

506121400

—
Out of stock

2

Screw M12 x 85

222028565

—
Out of stock

3

CUSHION - Call your local BRP dealership

415041100

—
Out of stock

4

Pivot Arm

506133800

—
Out of stock

5

Pivot

415038000

—
Out of stock

6

TIE ROD - Call your local BRP dealership | Formula S. Formula DLX 380.

506119200

—
Out of stock

7

RH BALL JOINT - Call your local BRP dealership

506151492

3
Out of stock

8

RH Threaded Hex. Jam Nut M10

732610010

3
Out of stock

9

Washer

503175800

12

$3.26

In stock

10

6

$1.25

In stock

11

Tie-Rap 180 mm

414115200

1
Out of stock

12

Tie Rod

506110800

—
Out of stock

13

LH JOINT BALL - Call your local BRP dealership

506151845

3
Out of stock

14

LH Threaded Hex. Jam Nut M10

250100016

3
Out of stock

15

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

—
Out of stock

16

Female Housing

409204300

—
Out of stock

17

FLAT WASHER - Call your local BRP dealership

506136400

—
Out of stock

18

Female Terminal

561503100

3
Out of stock

19

Tie Wrap 94 mm | 4X4

293750001

1
Out of stock

20

RH Steering Arm

506144800

—
Out of stock

LH Steering Arm

506144900

—
Out of stock

21

Allen Screw M8 x 35

222983565

—
Out of stock

22

Hex. Flange Elastic Nut M8

233281414

2
Out of stock

23

Main Tube

506127900

—
Out of stock

24

Retainer Support

517126200

—
Out of stock

25

Bushing

572064400

—
Out of stock

26

BUSHING - Call your local BRP dealership

572064500

—
Out of stock

27

Hex. Screw M8 X 20

207182044

2
Out of stock

28

U-clamp | X

506060600

1
Out of stock

29

HALF-BUSHING - Call your local BRP dealership

572067100

—
Out of stock

30

Hex. Elastic Stop Nut M8

232581414

6
Out of stock

31

Lock Washer 8 mm

234181401

2
Out of stock

32

Handlebar

506125900

—
Out of stock

33

Steering Clamp

506055400

—
Out of stock

34

Steering Support

709400919

4
Out of stock

35

Hex. Screw M8 X 55

207085544

4
Out of stock

36

BUSHING - Call your local BRP dealership

572036500

—
Out of stock

37

RH Grip 6-1/2"

506151530

2
Out of stock

38

RH Tie Rod Cap

570024800

—
Out of stock

LH TIE ROD CAP - Call your local BRP dealership

570024900

—
Out of stock

39

RH Cap Plate

517241200

—
Out of stock

LH CAP PLATE - Call your local BRP dealership

517241300

—
Out of stock

40

Pop Rivet 3/16"

390906800

4
Out of stock

41

Pop Rivet 3/16"

390402200

10
Out of stock

42

Washer

517124300

4
Out of stock

43

Steering Padding

572084000

—
Out of stock

44

Key Way

572072400

—
Out of stock

45

Grease, Super Lube

293550030

1
Out of stock

46

Loctite 271, 10 ml

293800005

1
Out of stock

47

Heating Grip

515175573

2
Out of stock

48

HANDLEBAR END - Call your local BRP dealership

572081900

—
Out of stock

49

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

—
Out of stock

50

Horn

549011291

1
Out of stock
