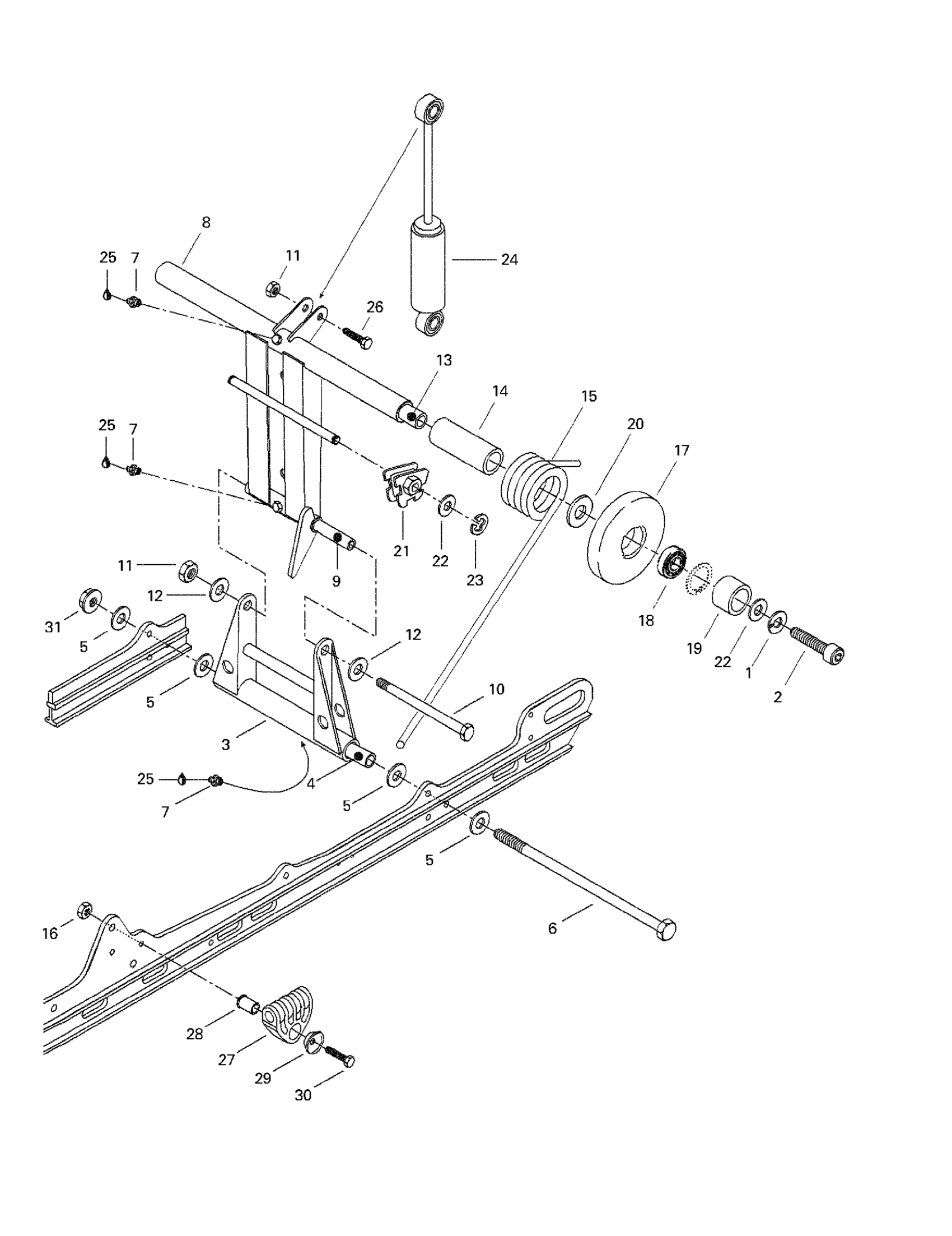

Ski-Doo Formula S Electric, 1998 Rear Arm, Rear Suspension Diagram
#
Description
Price
1
Helicoidal Lock Washer M10 | XT Models
234101601
Unavailable
2
Socket Screw M10 X 35
205003544
Unavailable
4
Lower Axle Pivot
503154703
Unavailable
5
FLAT WASHER - Call your local BRP dealership
224081201
Unavailable
6
Bolt M8 X 248mm
503192440
Unavailable
7
Grease Fitting
408200700
Unavailable
8
Welded Rear Arm
503151200
Unavailable
9
Upper Axle, Pivot Arm
503144300
Unavailable
10
Bolt M8, Short
732601197
Unavailable
11
Hex. Elastic Stop Nut M8
232581414
Unavailable
12
Flat Washer 8 mm
234081410
Unavailable
13
Transversal Rear Axle
503151400
Unavailable
14
Bushing
572047800
Unavailable
15
RH Spring
414866200
Unavailable
LH Spring
414866300
Unavailable
16
Elastic Stop Nut M6
232561414
Unavailable
17
Idler Wheel
572095100
Unavailable
IDLER WHEEL 155 - Call your local BRP dealership | Includes 15 - 16.
572094300
Unavailable
IDLER WHEEL 155 - Call your local BRP dealership | Includes 15 - 16.
572094300
Unavailable
19
Spacer
503154200
Unavailable
21
LH ADJUST CAM - Call your local BRP dealership
572030800
Unavailable
RH ADJUST CAM - Call your local BRP dealership
572030900
Unavailable
22
Flat Washer 10 mm
234001410
Unavailable
23
e Circlip
371907100
Unavailable
24
SHOCK - Call your local BRP dealership
414866500
Unavailable
25
LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.
413706100
Unavailable
26
Hex. Screw M8 X 40
207084044
Unavailable
27
Spring Support
503189657
Unavailable
28
SPRING AXLE GUIDE - Call your local BRP dealership | Formula 500. Formula 500 Deluxe.
503152700
Unavailable
29
Retainer Washer | Formula 500. Formula 500 Deluxe.
517041700
Unavailable
30
Hex. Screw M6 X 45
207064544
Unavailable
31
Hex. Flange Elastic Nut M8
233281414
Unavailable
