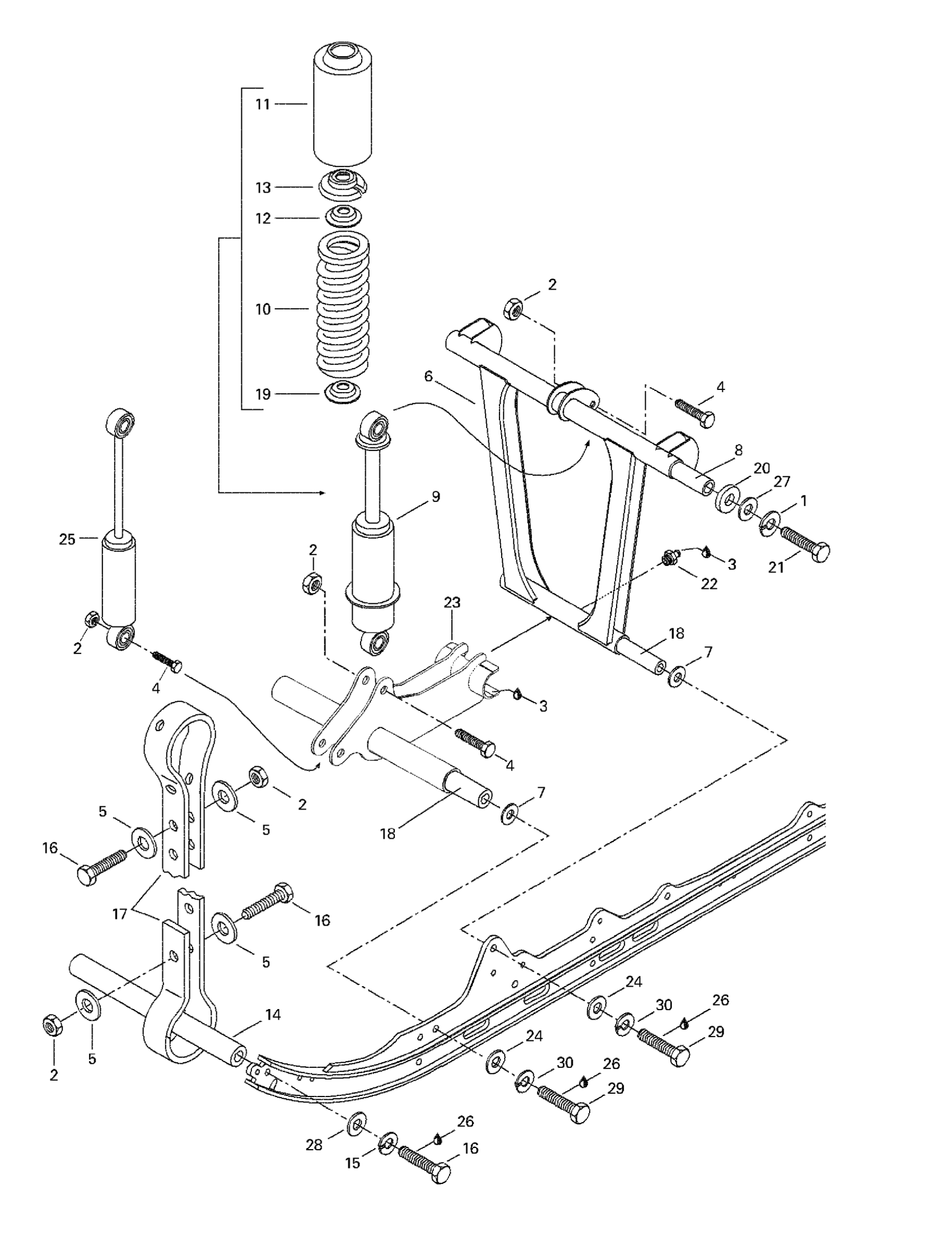

Ski-Doo Formula S Electric, 1998 Front Arm, Rear Suspension Diagram
#
Description
Price
1
Helicoidal Lock Washer M10 | XT Models
234101601
Unavailable
2
Hex. Elastic Stop Nut M8
232581414
Unavailable
3
LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.
413706100
Unavailable
4
Hex. Screw M8 X 40
207084044
Unavailable
5
WASHER - Call your local BRP dealership
517078700
Unavailable
6
Welded Front Arm
503167400
Unavailable
7
Hardened Washer
503175400
Unavailable
8
SHAFT - Call your local BRP dealership
503190387
Unavailable
9
SHOCK - Call your local BRP dealership
414866400
Unavailable
10
Spring
415069900
Unavailable
11
Protector
503193663
Unavailable
12
Cap
706200785
Unavailable
15
Lock Washer 8 mm
234181401
Unavailable
16
Hex. Screw M8 X 30
207183044
Unavailable
17
Stopper Strap | Formula Z 583. Formula 583 Deluxe.
570038800
Unavailable
18
Lower Axle
503174800
Unavailable
20
Cushion | Formula 500. Formula 500 Deluxe.
414894900
Unavailable
21
HEX. SCREW M10 X 60 - Call your local BRP dealership
207006044
Unavailable
22
Grease Fitting
408200700
Unavailable
23
Welded Shock Support
503167500
Unavailable
25
SHOCK - Call your local BRP dealership
414866500
Unavailable
26
Loctite 271, 10 ml
293800005
Unavailable
27
Flat Washer 10 mm
234001410
Unavailable
28
Flat Washer 8 mm
234081410
Unavailable
29
SCREW-HEX.CAP M12 X 35 - Call your local BRP dealership
222023565
Unavailable
30
Lock Washer 12 mm
224721218
Unavailable
