2012 Yamaha FJR1300A (FJR13ABL) Headlight Diagram

← All diagrams

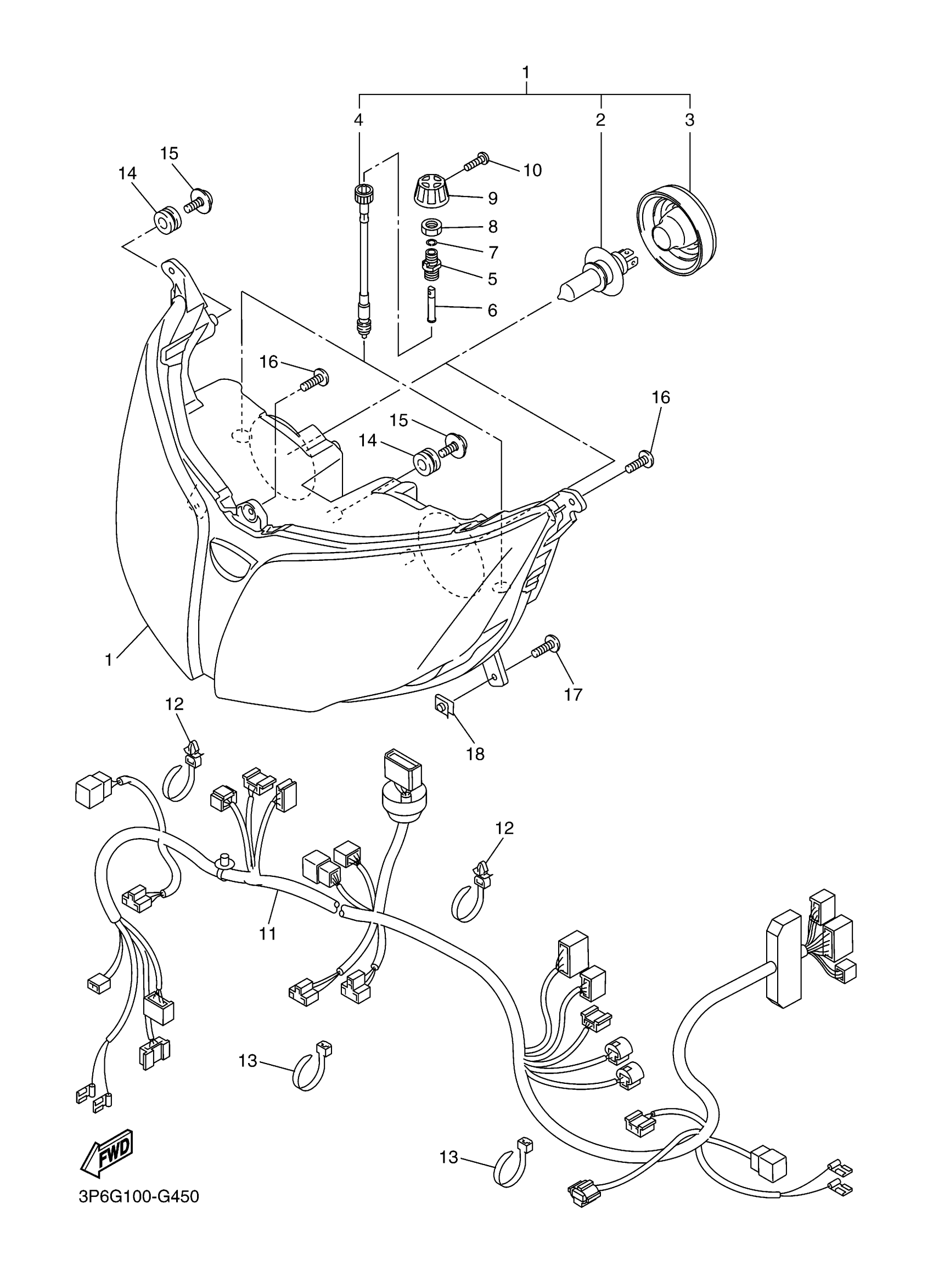

Find the part on the Headlight diagram for your 2012 Yamaha FJR1300A (FJR13ABL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha FJR1300A (FJR13ABL) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD LIGHT SUB ASSY

3P6-8430B-20-00

—
Out of stock

2

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

3

COVER, SOCKET

5JW-84397-00-00

—

$25.31

In stock

4

WIRE ASSY

3P6-8430N-00-00

—
Out of stock

5

HOLDER

3P6-8431U-00-00

1

$8.22

In stock

6

ROD

3P6-8431N-00-00

—
Out of stock

7

CIRCLIP

93440-06190-00

1

$6.26

In stock

8

NUT

90170-10206-00

1

$2.55

In stock

9

KNOB

3P6-8432N-00-00

1

$8.70

In stock

10

SCREW, PAN HEAD(3HH)

98507-03010-00

1
Out of stock

11

CORD, HEADLIGHT

3P6-84359-30-00

—
Out of stock

12

CLAMP(2TV)

90464-10112-00

1

$6.18

In stock

13

BAND

1UA-82591-00-00

1
Out of stock

14

DAMPER

4XV-83513-00-00

1

$6.42

In stock

15

SCREW, ROUND TAPPING

90160-05006-00

1

$6.25

In stock

16

SCREW, TAPPING

97702-50016-00

—

$1.98

In stock

17

SCREW, BINDING (8J0)

90154-05005-00

—
Out of stock

18

NUT, SPRING

90183-050A6-00

—

$2.37

In stock
