- FJR13ABL (FJR1300A) 1CYF 2012
ELECTRICAL 2

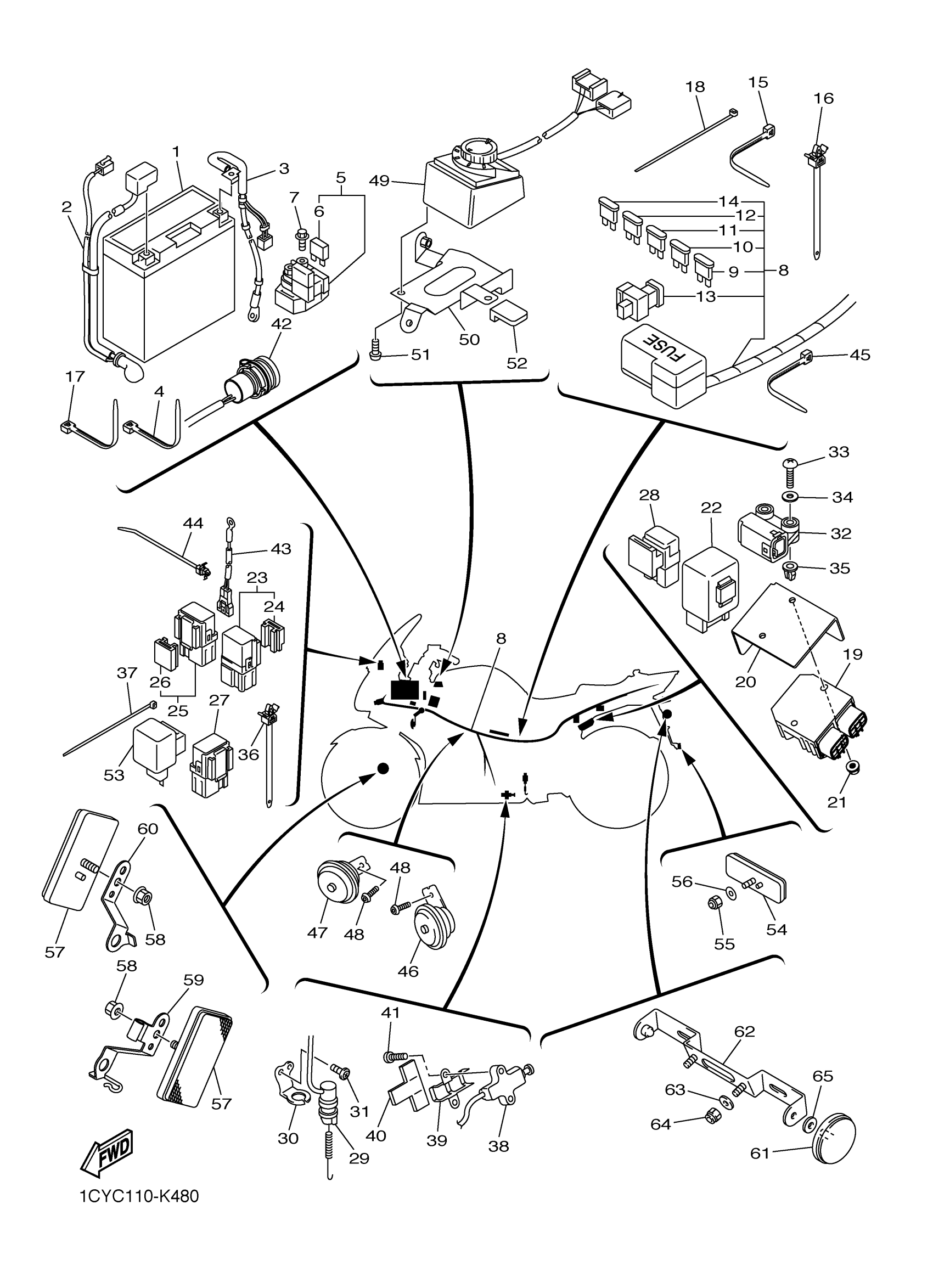

2012 Yamaha FJR1300A (FJR13ABL) Electrical 2 Diagram
Find the part on the Electrical 2 diagram for your 2012 Yamaha FJR1300A (FJR13ABL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
2
WIRE, PLUS LEAD
3P6-82115-00-00
3
WIRE, MINUS LEAD
3P6-82116-10-00
4
BAND
1UA-82591-00-00
5
STARTER RELAY ASSY (RC19-085A)
3P6-81940-00-00
6
FUSE (12V 30A)
1AE-82151-00-00
8
WIRE HARNESS ASSY
1CY-82590-10-00
20
PLATE, RECTIFIER FITTING
3P6-81975-00-00
22
RELAY ASSY
5VK-81950-33-00
27
RELAY ASSY
5JJ-81950-11-00
29
STOP SWITCH ASSY
3P6-82530-00-00
30
STAY, STOP SWITCH
5JW-2144G-00-00
32
SENSOR, LEAN ANGLE
5PS-82576-02-00
34
WASHER, PLATE
90201-04030-00
37
BAND
1UA-82591-00-00
38
SWITCH, SIDE STAND
5PX-82566-51-00
39
PLATE
3P6-82388-00-00
40
DAMPER
3P6-82176-10-00
43
THERMISTOR ASSY
5RU-85700-00-00
44
CLAMP
90464-24001-00
46
HORN
5PS-83371-00-00
47
HORN
3P6-83371-00-00
49
CONTROL UNIT ASSY
2D2-85590-00-00
50
BRACKET
2D2-85542-00-00
51
SCREW,TAPPING (EU6)
97780-30110-00
62
BRACKET, LICENSE
5JW-84751-00-00
