2012 Yamaha FJR1300A (FJR13ABL) Electrical 3 Diagram

← All diagrams

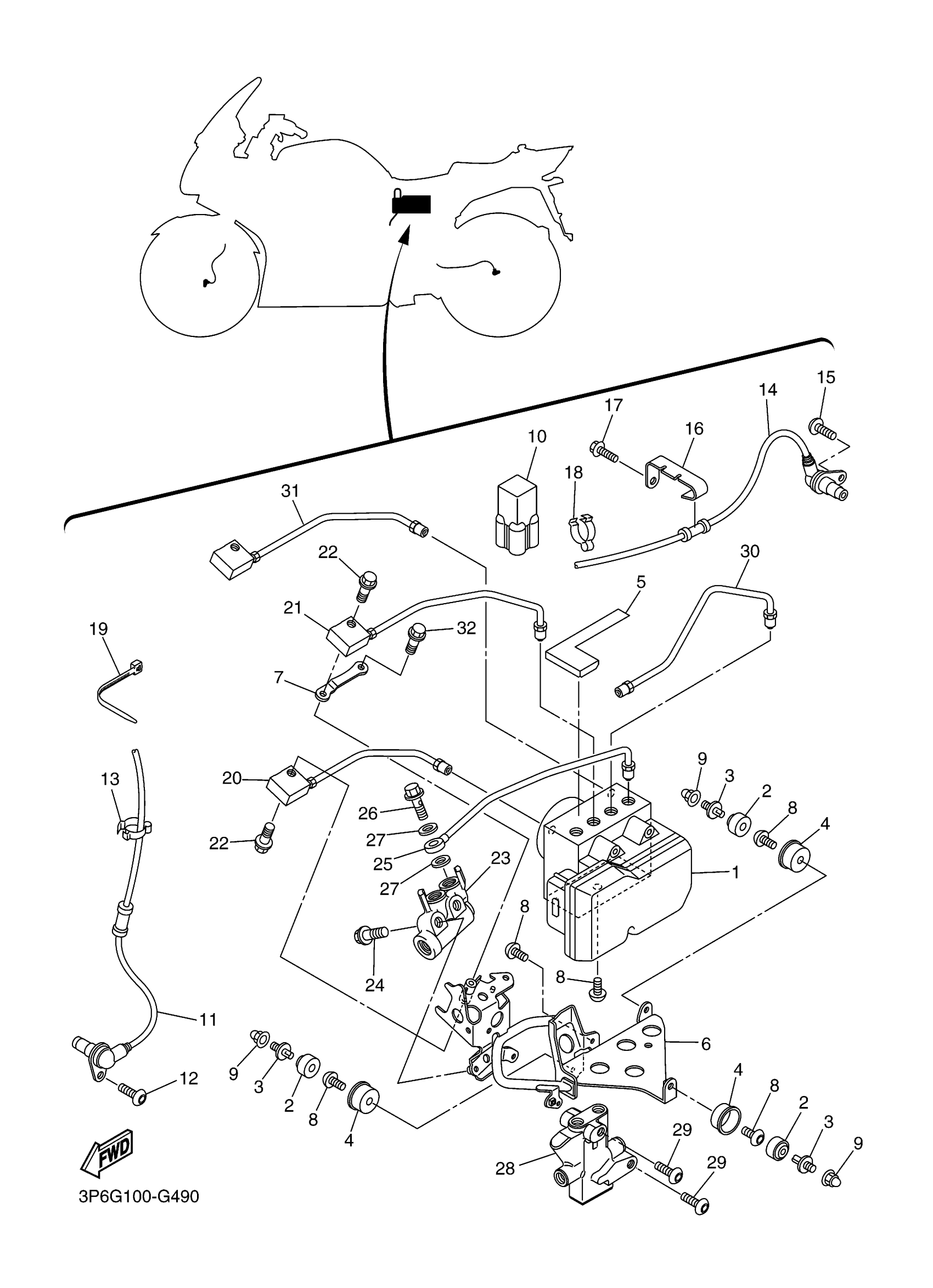

Find the part on the Electrical 3 diagram for your 2012 Yamaha FJR1300A (FJR13ABL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha FJR1300A (FJR13ABL) Electrical 3 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HYDRAULIC UNIT ASSY

3P6-85930-18-00

—
Out of stock

2

DAMPER

5CG-85113-00-00

—
Out of stock

3

BOLT

5CG-2535E-00-00

—
Out of stock

4

CAP, DAMPER

3P6-85916-00-00

—
Out of stock

5

PROTECTOR

3P6-2117G-00-00

—
Out of stock

6

BRACKET 1

3P6-2175T-10-00

1
Out of stock

7

STAY, SIDE COVER 1

3P6-2172E-00-00

1
Out of stock

8

BOLT, BUTTON HEAD

92012-06010-00

1
Out of stock

9

NUT, CROWN (4G0)

90176-08026-00

1
Out of stock

10

CONNECTOR

3YA-82378-00-00

—
Out of stock

11

WHEEL SENSOR ASSY, FRONT

3P6-85970-11-00

1
Out of stock

12

BOLT, BUTTON HEAD(3JP)

92014-06012-00

1
Out of stock

13

CLAMP

90464-14003-00

—
Out of stock

14

WHEEL SENSOR ASSY, REAR

3P6-85980-11-00

—
Out of stock

15

BOLT, BUTTON HEAD(3JP)

92014-06012-00

1
Out of stock

16

HOLDER, WIRE

3P6-86159-00-00

—
Out of stock

17

BOLT, FLANGE

90105-05014-00

—
Out of stock

18

CLAMP

90464-12013-00

—
Out of stock

19

CLAMP

90465-10098-00

1
Out of stock

20

PIPE, BRAKE

3P6-25871-10-00

—
Out of stock

21

PIPE, BRAKE 2

3P6-25882-20-00

—
Out of stock

22

BOLT, FLANGE

95022-06025-00

—
Out of stock

23

METERING VALVE ASSY

3P6-25940-00-00

—
Out of stock

24

BOLT, FLANGE

95817-06030-00

—
Out of stock

25

PIPE, BRAKE 4

3P6-2588A-10-00

—
Out of stock

26

BOLT, UNION

90401-10020-00

—
Out of stock

27

GASKET

90430-10005-00

—
Out of stock

28

VALVE, PROPORTIONING

3P6-25884-00-00

—
Out of stock

29

BOLT, BUTTON HEAD

92012-06040-00

—
Out of stock

30

PIPE, BRAKE 5

3P6-2588B-00-00

—
Out of stock

31

PIPE, BRAKE 3

3P6-25883-20-00

—
Out of stock

32

BOLT, FLANGE

95022-06025-00

—
Out of stock
