2012 Yamaha FJR1300A (FJR13ABL) Electrical 1 Diagram

← All diagrams

Find the part on the Electrical 1 diagram for your 2012 Yamaha FJR1300A (FJR13ABL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

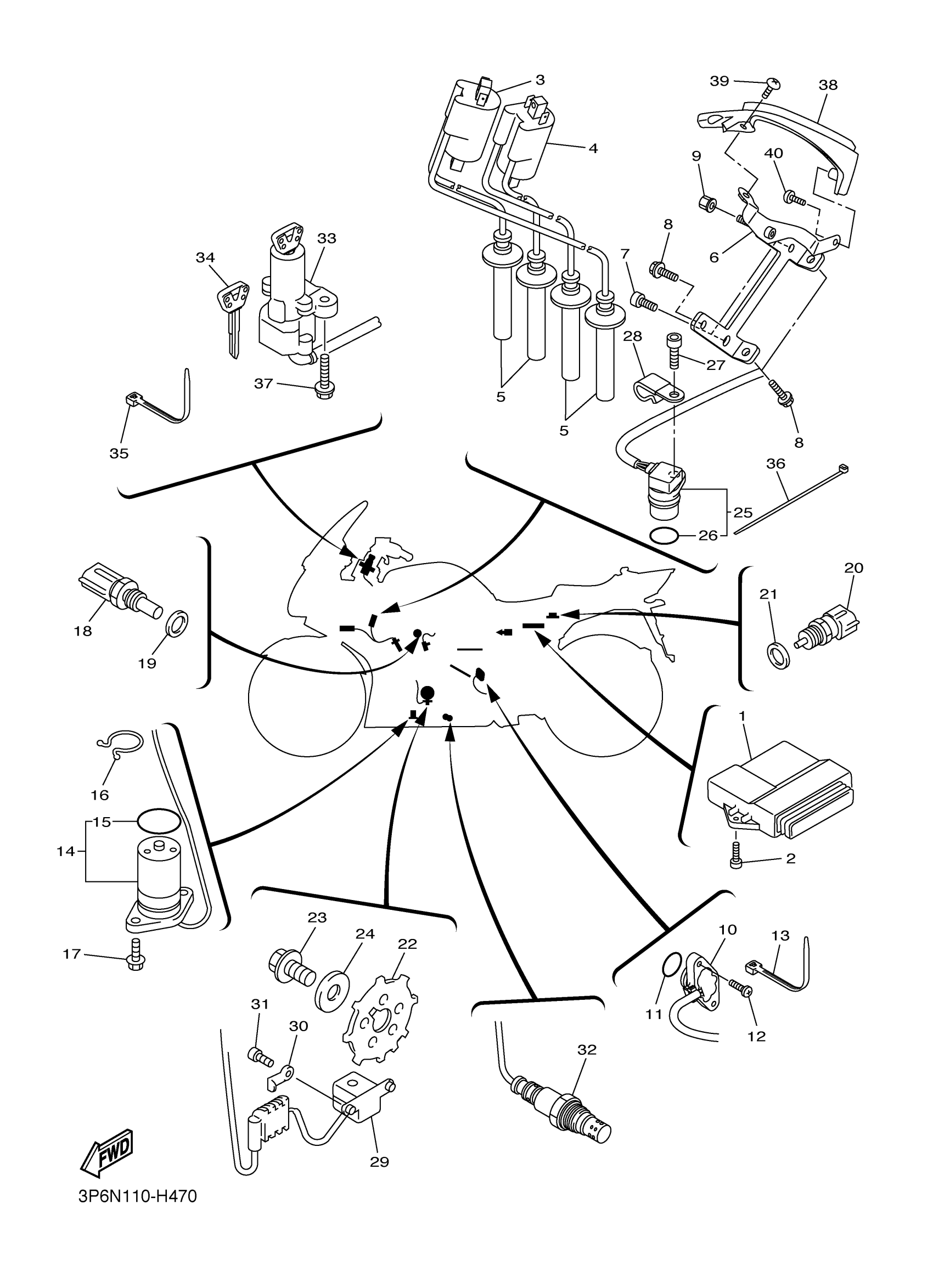

2012 Yamaha FJR1300A (FJR13ABL) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ENGINE CONTROL UNIT ASSY

3P6-8591A-A0-00

—
Out of stock

2

SCREW, TAPPING

97702-60020-00

1
Out of stock

3

IGNITION COIL ASSY

3P6-82310-00-00

—
Out of stock

4

IGNITION COIL ASSY

3P6-82320-00-00

—
Out of stock

5

PLUG CAP ASSY

5JW-82370-00-00

1
Out of stock

6

BRACKET, IGNITION COIL

3P6-82316-00-00

1
Out of stock

7

BOLT,SOCKET

91317-06012-00

1
Out of stock

8

BOLT, FLANGE

95022-06016-00

1
Out of stock

9

NUT (1AE)

90179-06500-00

1
Out of stock

10

NEUTRAL SWITCH ASSY

3P6-82540-01-00

1
Out of stock

11

O-RING

93210-21001-00

1
Out of stock

12

SCREW, BINDING

90154-05046-00

1
Out of stock

13

BAND

1UA-82591-00-00

1
Out of stock

14

OIL LEVEL GAUGE ASSY

3P6-85720-00-00

1
Out of stock

15

O-RING

4XV-8A8E0-00-00

—
Out of stock

17

BOLT, FLANGE

95022-06016-00

1
Out of stock

18

THERMOSENSOR ASSY

8CC-85790-01-00

—
Out of stock

19

WASHER, PLATE

90201-12790-00

—
Out of stock

20

THERMOSENSOR ASSY

5FL-85790-00-00

—
Out of stock

21

GASKET(2GH)

90430-12202-00

—
Out of stock

22

ROTOR

5JW-81673-10-00

—
Out of stock

23

BOLT, FLANGE

90105-10153-00

—
Out of stock

24

WASHER, PLATE(1WG)

90201-107K6-00

—
Out of stock

25

SENSOR, SPEED

5FL-83755-03-00

—
Out of stock

26

O-RING

4D9-81168-00-00

—
Out of stock

27

BOLT,SOCKET

91317-06016-00

—
Out of stock

28

CLAMP

90462-08039-00

—
Out of stock

29

PICK-UP ASSY

3P6-81670-00-00

—
Out of stock

30

CLAMP

90465-08055-00

—
Out of stock

31

BOLT(47X)

91312-05012-00

—
Out of stock

32

SENSOR

2D2-8592A-00-00

—
Out of stock

33

MAIN SWITCH STEERING LOCK

3P6-82501-22-00

—
Out of stock

34

BLANK KEY

4BH-82511-09-00

—
Out of stock

35

CLAMP

90465-10098-00

1
Out of stock

36

CLAMP

5Y9-12491-00-00

—
Out of stock

37

BOLT

90109-08196-00

—
Out of stock

38

GUIDE, AIR 2

3P6-2137V-00-00

—
Out of stock

39

SCREW, BINDING (10V)

90154-05013-00

—
Out of stock

40

SCREW, TRUSS TAP.

97707-50012-00

—
Out of stock
