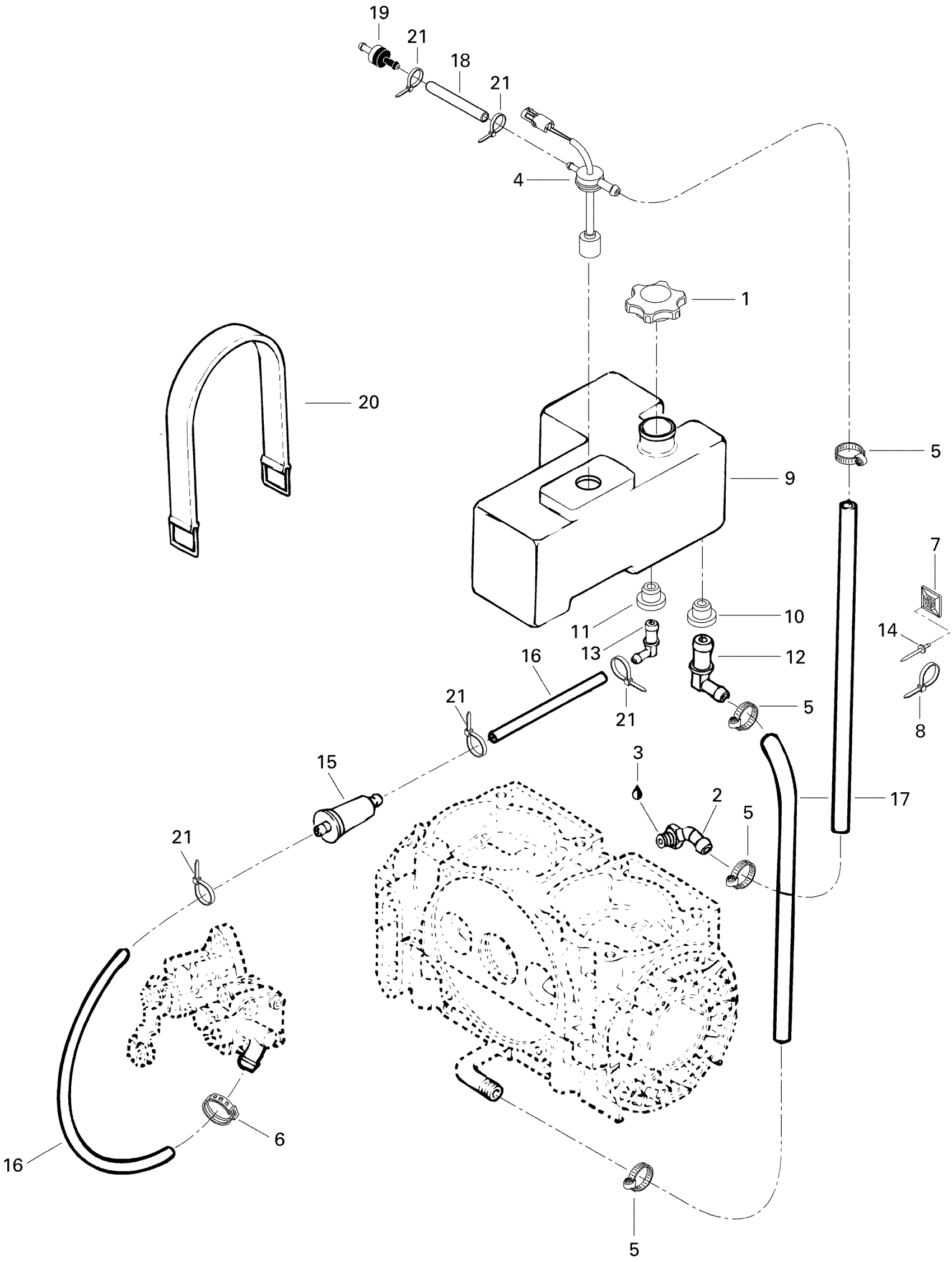

Sea-doo Explorer, 5823, 1996 Oil Injection System Diagram

#

Description
Price

1

Fuel Tank Cap

513033025

$19.47

2

Angular Tube

420922242

$12.29

3

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

4

Oil Level Sensor

278000478

Unavailable

5

Tridon Gear Clamp

293650170

$1.74

6

Oetiker Clamp

293650042

$1.40

7

TIE RAP MOUNT - Call your local BRP dealership

293750003

Unavailable

8

Tie Wrap 142 mm

293750002

$0.88

9

Oil Tank

275000138

Unavailable

10

Grommet | Europe

707800347

$7.58

11

Grommet

709200285

$7.09

12

Elbow Fitting

414523600

$3.99

13

Elbow Fitting 90°

293710003

Unavailable

14

Rivet 1/8"

293150016

$0.29

15

OIL FILTER - Call your local BRP dealership

275000051

Unavailable

16

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

17

Was 275500008 Hose 12 mm

219704356

$5.94

18

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

19

Check Valve This part replaces 275500087.

275501246

Unavailable

20

STRAP - Call your local BRP dealership

293850022

Unavailable

21

Tie Wrap 94 mm | 4X4

293750001

$0.83
