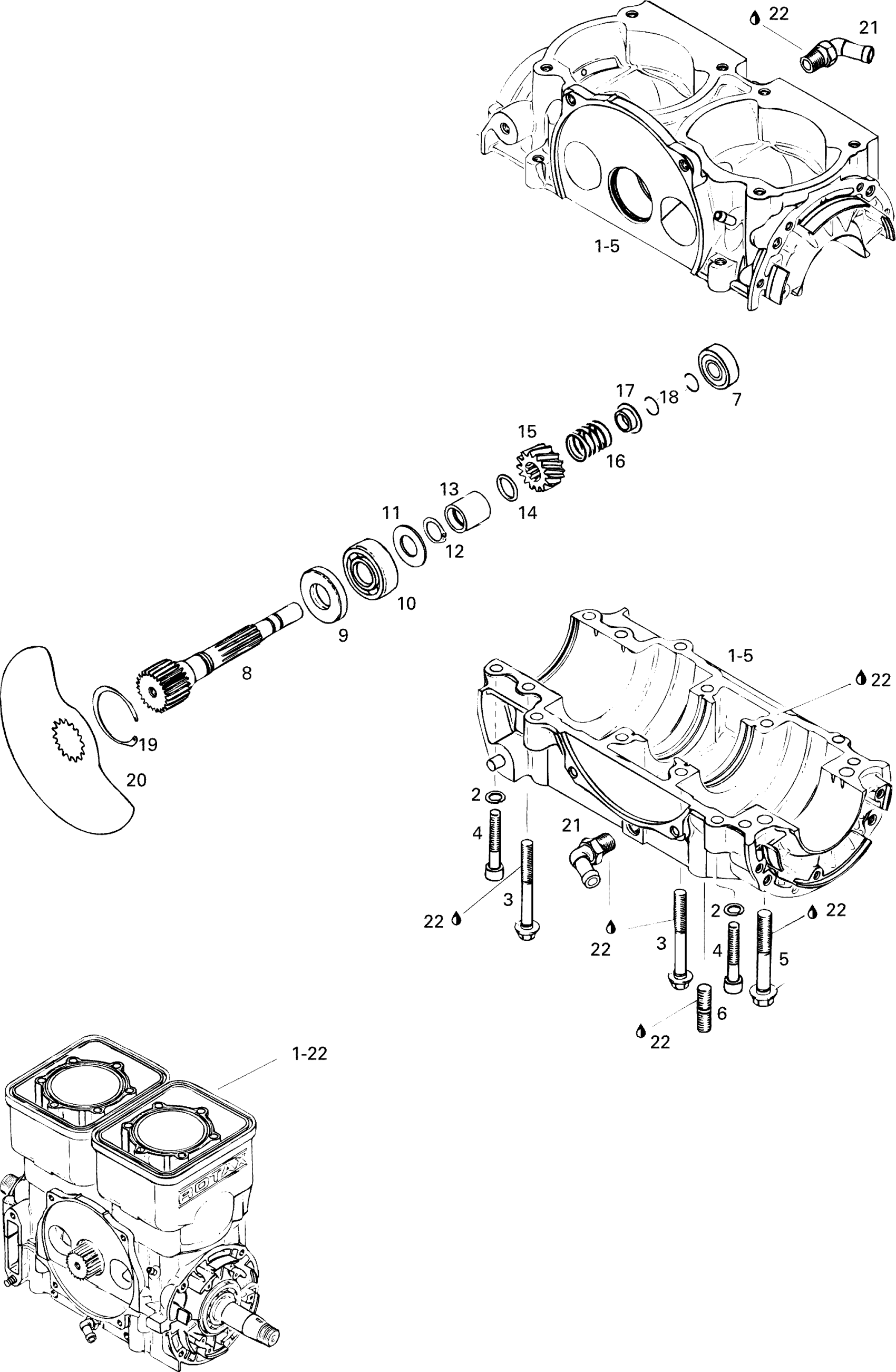

Sea-doo Explorer, 5823, 1996 Crankcase And Rotary Valve Diagram
#
Description
Price
1
Short Block Ass‘y | Includes 1 to 22
290881448
Unavailable
1
Crankcase Ass'y (White) | Includes 1 to 5
290887222
Unavailable
2
Lock Spring Washer 8 mm, Stainless
234180602
Unavailable
3
Hex. Flange Screw M8 x 68.5
290841998
Unavailable
5
Flange Screw M10 x 73,5
290941333
Unavailable
6
STUD M10 X 25, PTO - Call your local BRP dealership
290940798
Unavailable
7
Ball Bearing
420932797
Unavailable
8
ROTARY VALVE SHAFT - Call your local BRP dealership
290837251
Unavailable
9
OIL SEAL - Call your local BRP dealership
290930580
Unavailable
10
BALL BEARING - Call your local BRP dealership
293350051
Unavailable
11
Shim
290227439
Unavailable
12
SNAP RING - Call your local BRP dealership
420845450
Unavailable
13
Distance Sleeve
290847282
Unavailable
14
O-Ring
293300024
Unavailable
15
Sprocket 14Th This part replaces 420935735.
420935736
Unavailable
16
Spring
290938810
Unavailable
17
Spring Seat
290827430
Unavailable
18
Circlip
290845160
Unavailable
19
Lock Ring
420945880
Unavailable
20
Rotary Valve (147°)
290924508
Unavailable
21
Angular Tube
420922242
Unavailable
22
Était/Was 293800038 Loctite 518, 50 ml
219704456
Unavailable
23
Engine Gasket Set (Not Shown)
290886651
Unavailable
