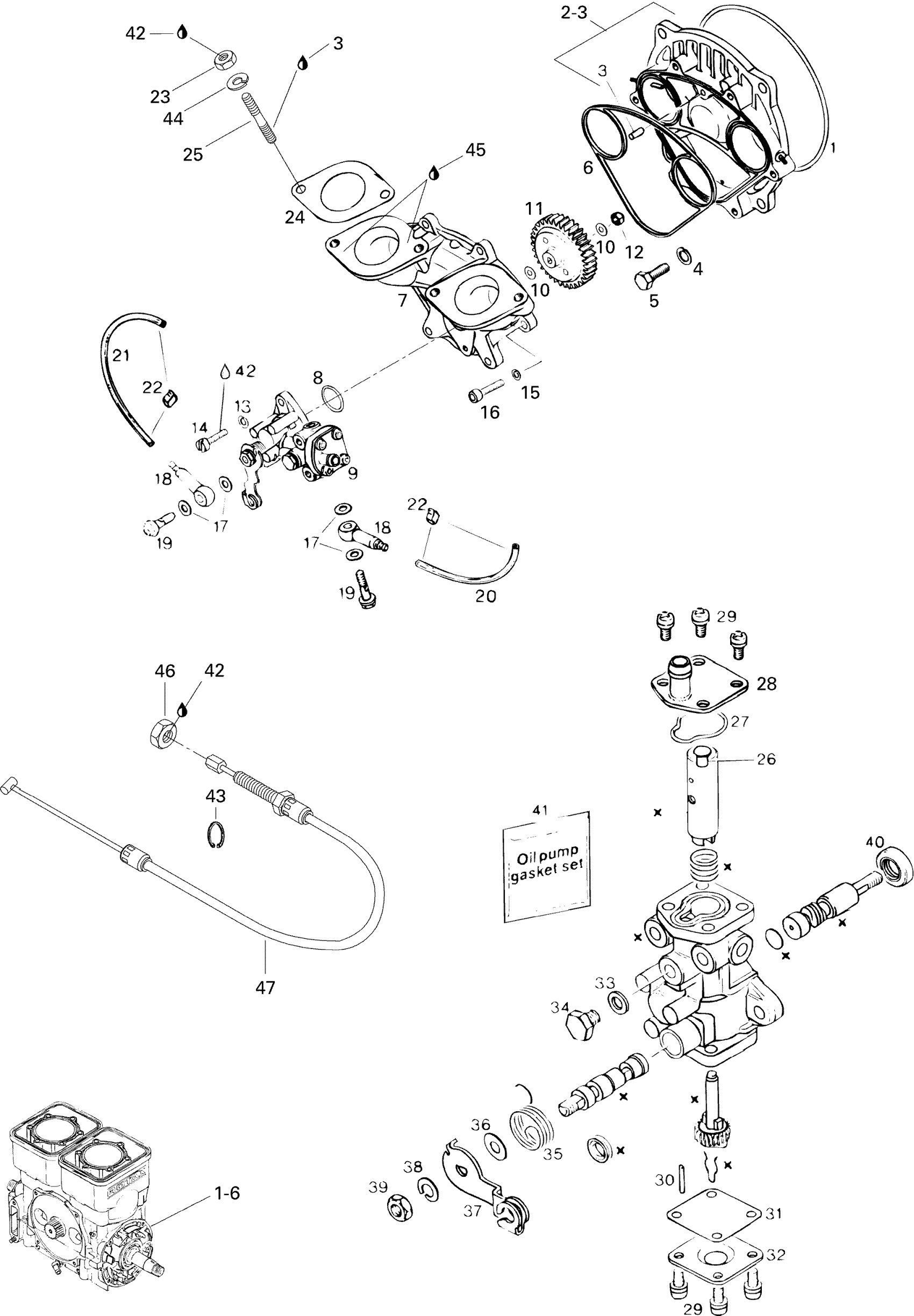

Sea-doo Explorer, 5823, 1996 Oil Injection Pump And Rotary Valve Diagram

#

Description
Price

1

Short Block Ass‘y | Includes 1 to 22

290881448

Unavailable

1

O-RING - Call your local BRP dealership

293300023

Unavailable

2

Rotary Valve Cover (Double Intake)

290810039

Unavailable

3

Sealant Loctite 648

219703000

Unavailable

4

Lock Spring Washer 8 mm, Stainless

234180602

Unavailable

5

Hex. Screw M8 X 20

207182044

$0.61

6

O-Ring

290831705

Unavailable

7

Oil Pump Flange

290810044

Unavailable

8

O-RING - Call your local BRP dealership

293300018

Unavailable

9

Oil Pump Ass‘y | Includes 26 to 40

290996723

Unavailable

10

FLAT WASHER - Call your local BRP dealership

420927945

Unavailable

11

Oil Pump Gear 41 Teeth

290935945

Unavailable

12

Elastic Stop Nut M6

232561414

Unavailable

13

Lock Washer

290845389

Unavailable

14

Cylindrical Slotted Screw M5 x 16

215951660

Unavailable

15

Lock Washer 6 mm

290845381

Unavailable

16

Socket Head Screw M6 X 20

205062060

$1.92

17

Sealing Washer

404146600

Unavailable

18

Valve Ass’Y

420956010

Unavailable

19

Valve Bolt M6 x 16

290241830

Unavailable

20

Oil Hose 1500Mm Long

219704404

Unavailable

21

Oil Hose 1500Mm Long

219704404

Unavailable

22

Clamp 3.5 mm

290853843

Unavailable

23

Hex. Nut M8

232081600

Unavailable

24

Gasket

290850373

Unavailable

25

Stud M8 x 26

420941014

Unavailable

26

Retainer

290256085

Unavailable

27

O-RING - Call your local BRP dealership

293300019

Unavailable

28

Pump Upper Plate

290956340

Unavailable

29

Screw with Lock Washer 4 mm

290241975

Unavailable

30

Stop Pin

290929900

Unavailable

31

Gasket

290850200

Unavailable

32

Pump Lower Plate

290956031

Unavailable

33

Gasket

290227505

Unavailable

34

Hex. Screw M6 x 8

290841583

Unavailable

35

Spring

290838114

Unavailable

36

Washer 6.2 mm

290227665

Unavailable

37

Lever Control

290848162

Unavailable

38

Lock Washer 6 mm

290845381

Unavailable

39

Hex. Nut M6

290242623

Unavailable

40

Oil Seal

293200038

Unavailable

41

OIL PUMP GASKET SET - Call your local BRP dealership

290995045

Unavailable

42

Loctite 243, 10 ml

293800060

$20.77

43

Circlip 5 mm

293370002

Unavailable

44

Lock Spring Washer 8 mm, Stainless

234180602

Unavailable

45

Était/Was 293800038 Loctite 518, 50 ml

219704456

Unavailable

46

Hex. Nut M6

232160600

Unavailable

47

Injection Cable

270000052

Unavailable

48

Engine Gasket Set (Not Shown)

290886651

Unavailable
