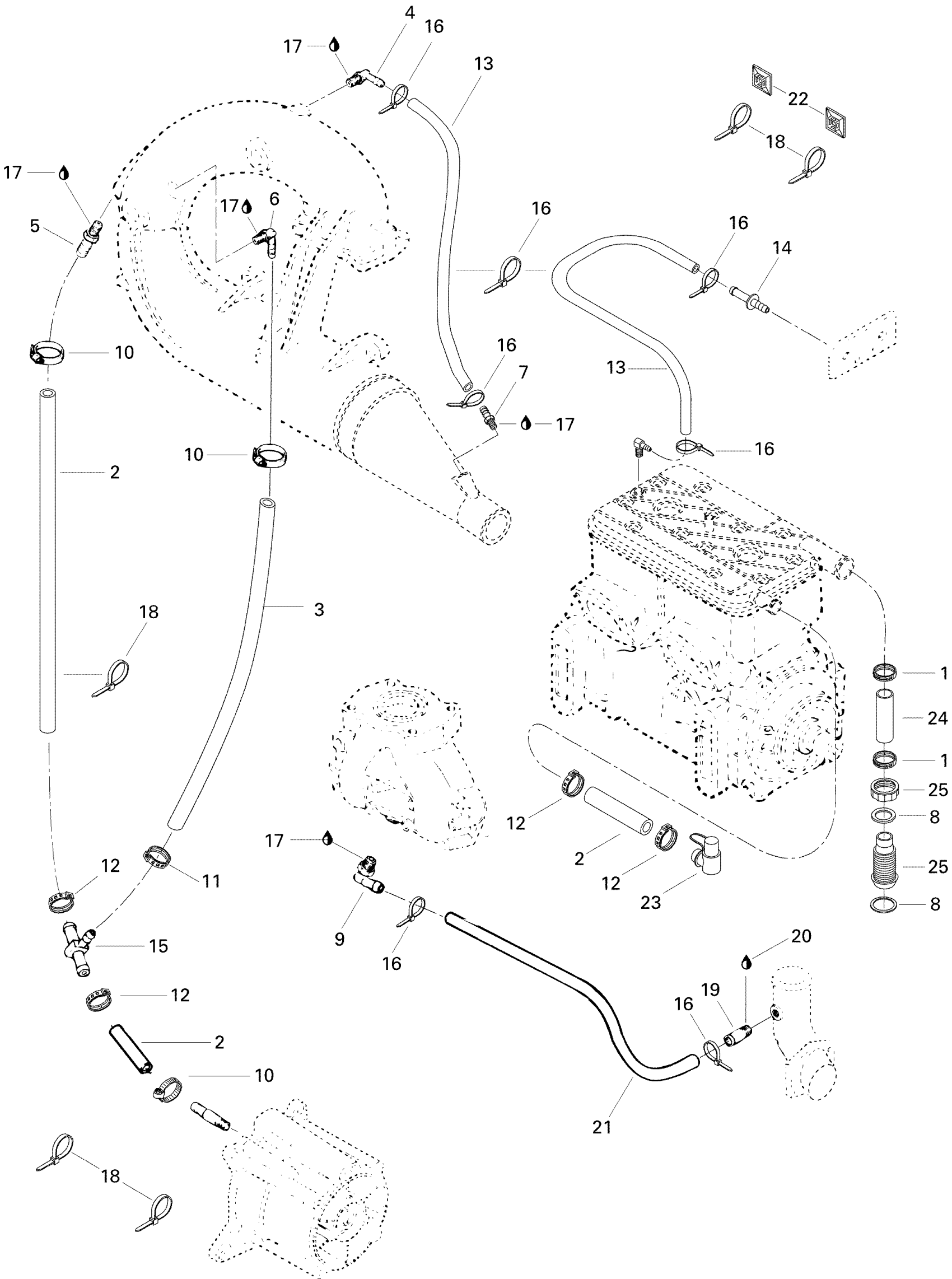

Sea-doo Explorer, 5823, 1996 Cooling System Diagram
#
Description
Price
1
Tridon Gear Clamp
293650051
Unavailable
2
Was 276000001 Hose 12.5 mm
219704394
Unavailable
3
Hose 8 mm
276000016
Unavailable
4
Elbow Fitting 90°
293710018
Unavailable
5
Male Connector | With Catalyst
293710021
Unavailable
6
ELBOW FITTING 90 - Call your local BRP dealership
293700024
Unavailable
7
Male Connector
293710037
Unavailable
8
GASKET - Call your local BRP dealership This part replaces 293250251.
293250006
Unavailable
9
Elbow Fitting
293700016
Unavailable
11
Oetiker Clamp | Europe
293650030
Unavailable
12
Oetiker Clamp
293650012
Unavailable
13
Was 415110000 Polyurethane Hose 5.2 mm
219704414
Unavailable
14
BLEED FITTING - Call your local BRP dealership
291000306
Unavailable
15
T-Fitting
293710116
Unavailable
17
Was 293800013 Loctite 56765
219704454
Unavailable
18
Tie Wrap 142 mm
293750002
Unavailable
19
MALE CONNECTOR - Call your local BRP dealership
293710017
Unavailable
20
Was 293800018 Loctite 592, 50 ml | Package T
219704455
Unavailable
22
TIE RAP MOUNT - Call your local BRP dealership
293750003
Unavailable
23
Flush fitting (90°)
293710009
Unavailable
24
Hose 20 mm
276000032
Unavailable
25
Fitting
293710162
Unavailable
