1987 Yamaha Exciter (EX570L) Steering Gate Diagram

← All diagrams

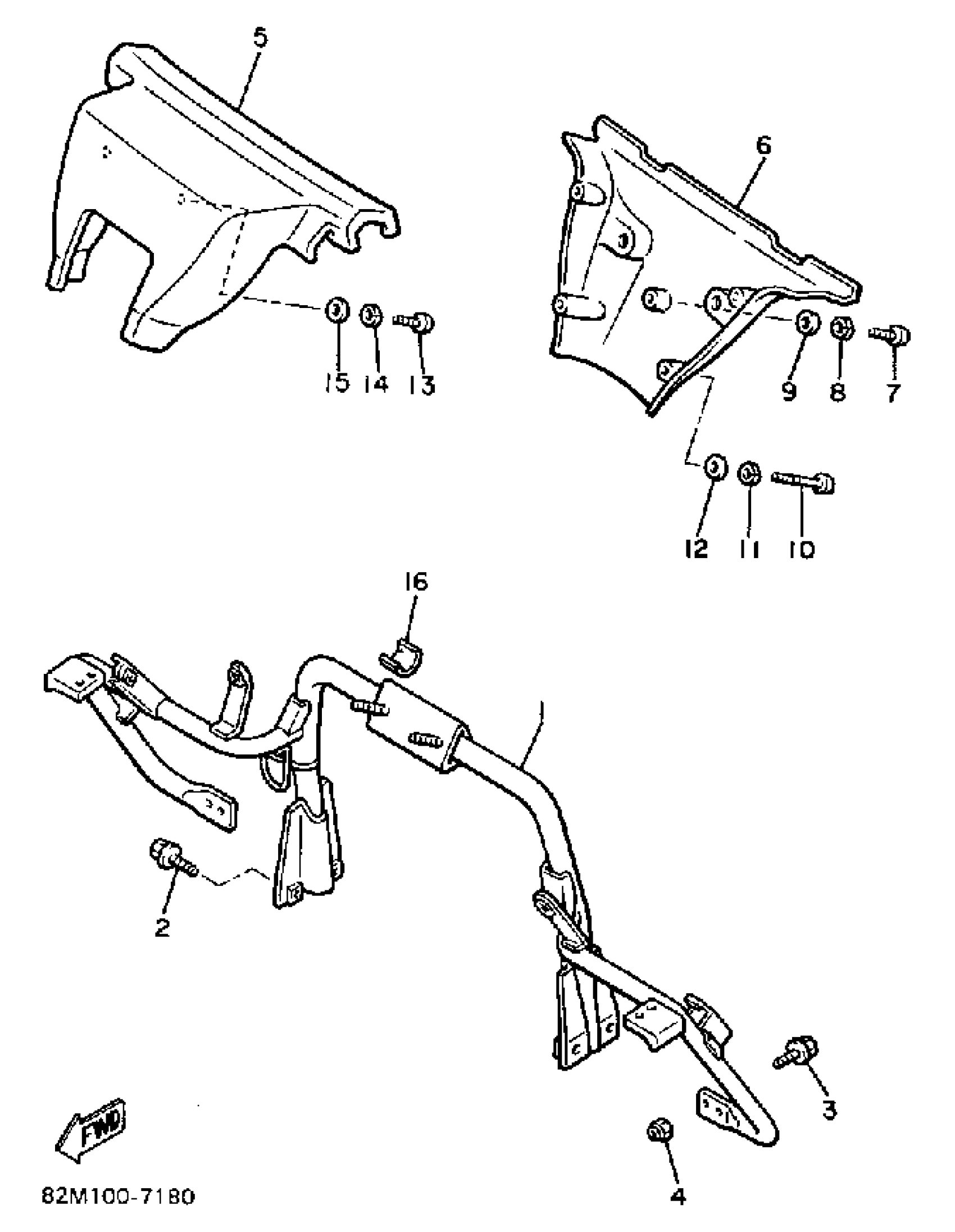

Find the part on the Steering Gate diagram for your 1987 Yamaha Exciter (EX570L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Yamaha Exciter (EX570L) Steering Gate Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEERING GATE COMP (82M-23870-00)

84M-23870-00-00

1
Out of stock

2

BOLT, FLANGE

95817-08012-00

1

$3.98

In stock

3

BOLT, FLANGE

95817-06030-00

1

$3.91

In stock

4

NUT, NYLON

95707-06300-00

1

$3.20

In stock

5

PAD, STEERING

82M-23815-01-00

1
Out of stock

6

PAD,STEERING

80L-23817-02-00

1
Out of stock

7

SCREW, PAN HEAD(3LA)

98517-05010-00

1

$3.52

In stock

8

WASHER(3SX)

92907-05100-00

1

$6.18

In stock

9

WASHER, PLAIN LARGE

92907-05200-00

1
Out of stock

10

SCREW, PAN HEAD

98517-05030-00

1

$7.92

In stock

11

WASHER(3SX)

92907-05100-00

1

$6.18

In stock

12

WASHER(1RW)

92907-05600-00

1
Out of stock

13

SCREW,PAN HEAD (646)

98580-05012-00

1

$5.60

In stock

14

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

15

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

16

SPACER

82M-23858-00-00

1
Out of stock
