1987 Yamaha Exciter (EX570L) Control - Cable Diagram

← All diagrams

Find the part on the Control - Cable diagram for your 1987 Yamaha Exciter (EX570L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

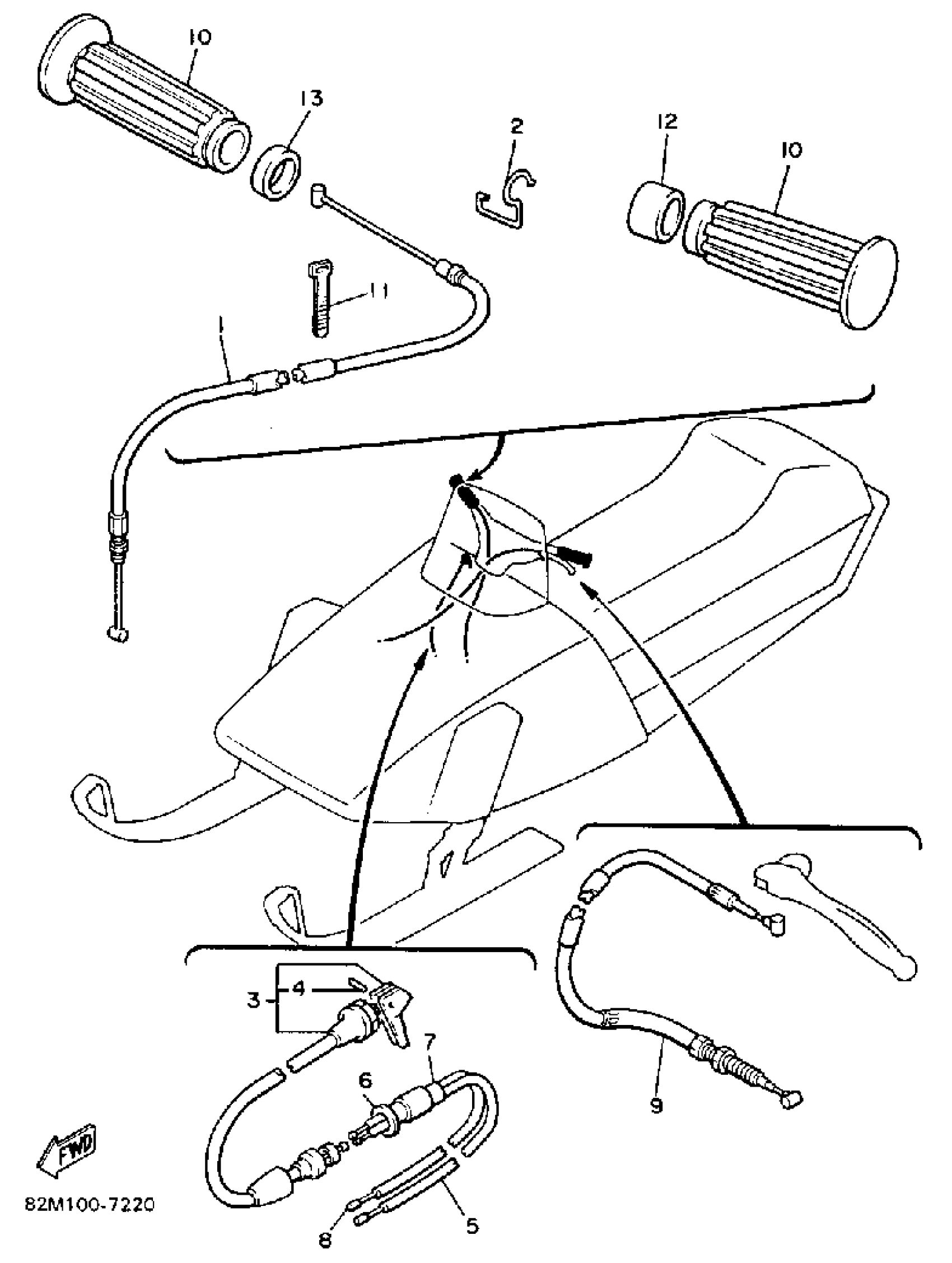

1987 Yamaha Exciter (EX570L) Control - Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CABLE, THROTTLE 1

85F-26311-00-00

1

$52.48

In stock

2

CLAMP (8X0)

90465-10189-00

1

$2.57

In stock

3

CABLE, STARTER 1

82M-26331-01-00

1
Out of stock

4

PIN, SPRING (663)

91690-30010-00

1

$5.46

In stock

5

CABLE, STARTER 2

82M-26334-00-00

1
Out of stock

6

CONNECTER, CABLE

4U1-26261-00-00

1

$33.76

In stock

7

CAP

5L6-26272-00-00

1

$7.51

In stock

8

WIRE, STARTER 3

82M-2633A-00-00

1
Out of stock

9

CABLE, BRAKE

82M-26340-00-00

1
Out of stock

10

GRIP LH

8W6-26241-00-00

1
Out of stock

11

BAND

341-26397-01-00

1
Out of stock

12

COLLAR

90387-223R2-00

1
Out of stock

13

COLLAR

90387-224F9-00

1
Out of stock
