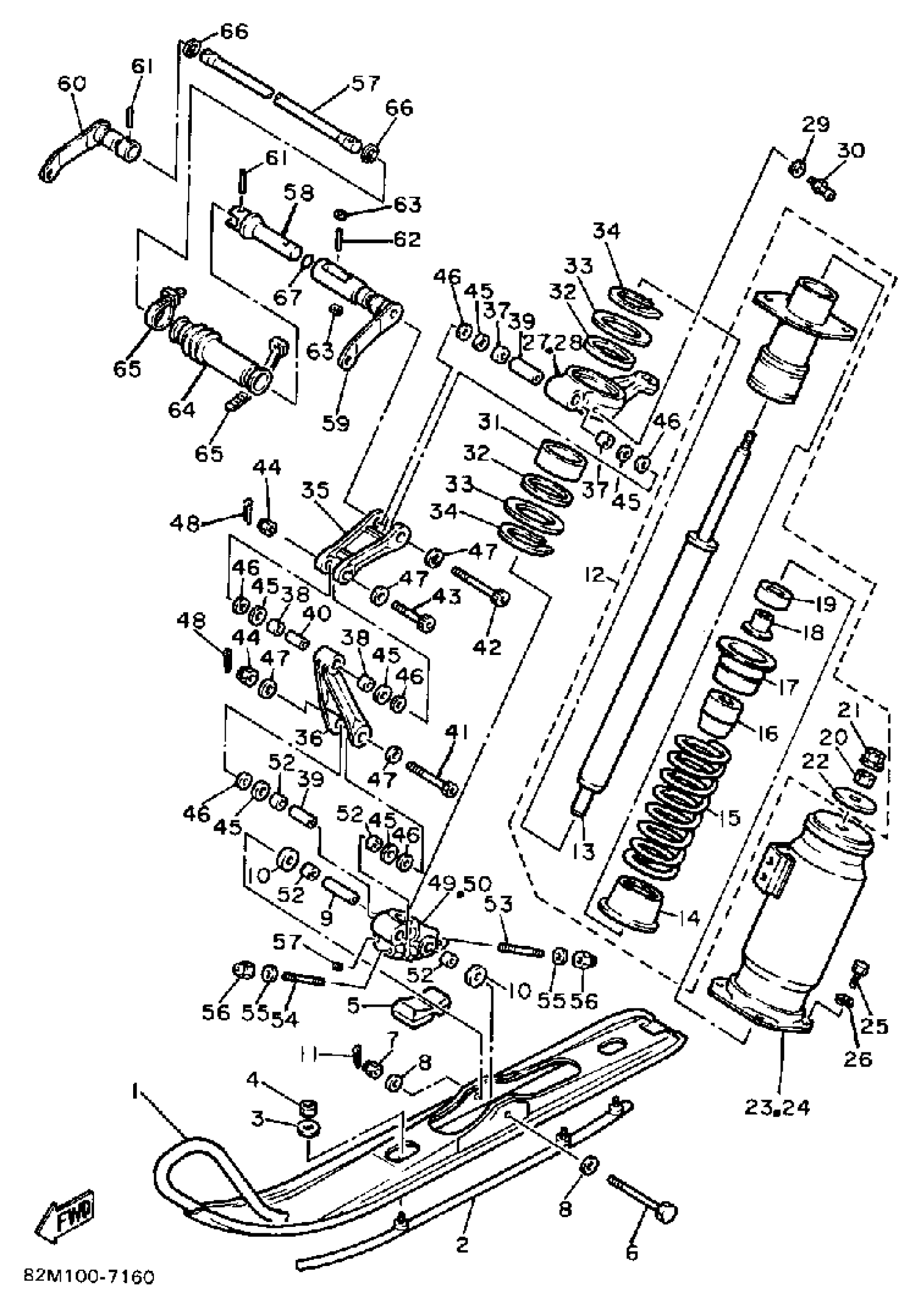

1987 Yamaha Exciter (EX570L) SKI Diagram
Find the part on the SKI diagram for your 1987 Yamaha Exciter (EX570L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
SKI COMP. 1
86M-23710-00-00
2
SKI RUNNER, 1
82W-23731-01-XX
5
STOPPER 1
82M-23743-00-00
8
WASHER(6TA)
92907-10600-00
10
COLLAR
90387-104R6-00
12
ABSORBER ASSEMBLY 1
82M-2376A-00-00
13
. DAMPER SUB-ASSEMBLY
82M-22401-00-00
15
. SPRING, COMPRESSION
90501-750F6-00
16
. BUMP, STOP
82M-22493-00-00
17
PLATE, BACK UP
8AB-23788-00-00
20
. NUT
90170-08220-00
23
HOLDER, ABSORBER (LH) (BLU)
82M-2376J-00-00
24
HOLDER, ABSORBER (RH) (BLU)
82M-2377J-00-00
28
ARM, OUTSIDE 2 (R, H)
82M-23852-00-00
35
ARM, FRONT 1
8M6-2382E-00-00
36
ARM, FRONT 2
8M6-2382F-00-00
41
BOLT,HEX SKT HEAD
90110-10141-00
42
BOLT,HEX SKT HEAD
90110-10141-00
43
BOLT,HEX SKT HEAD
90110-10174-00
46
WASHER, PLATE (8M6)
90201-105A8-00
49
BRACKET, 1 (L.H)
8L9-2376E-00-00
50
BRACKET 2 (R.H)
8L9-2377E-00-00
53
BOLT, STUD
90116-08323-00
57
BAR, STABLZR FRONT
82M-2386E-00-00
58
LINK, STABILIZER FRONT
82M-2386F-00-00
59
JOINT, STABILIZER 1
82M-2385L-00-00
60
JOINT, STABILIZER 2
82M-2385M-00-00
61
PIN, DOWEL
93605-20225-00
62
PIN, DOWEL
93605-25223-00
63
SLIDER
82M-2386R-00-00
64
COVER, STABILIZER FRONT
82M-2386H-00-00
65
BAND
1UA-82591-00-00
67
O-RING
93210-15751-00
