1987 Yamaha Exciter (EX570L) Electrical 1 Diagram

← All diagrams

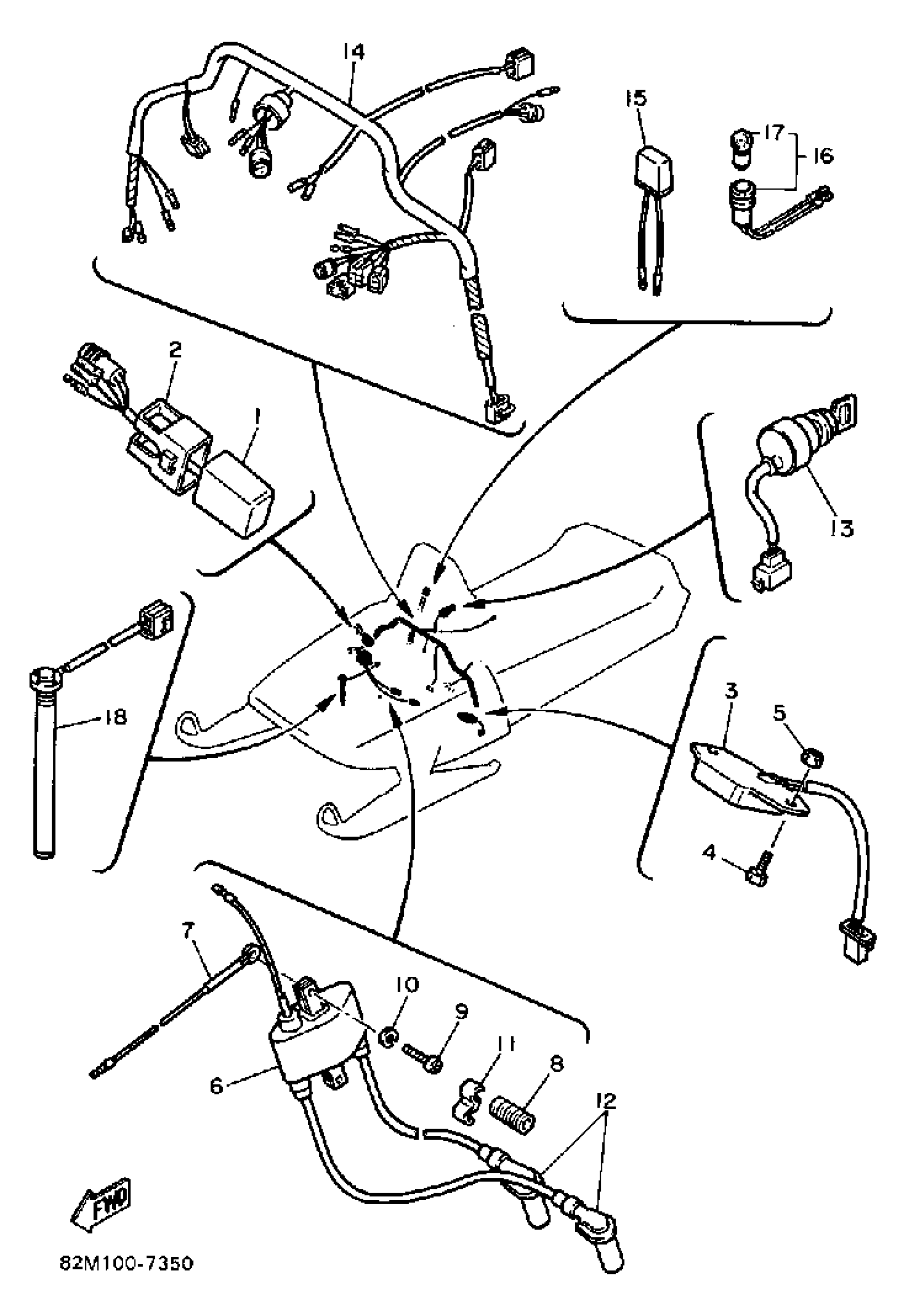

Find the part on the Electrical 1 diagram for your 1987 Yamaha Exciter (EX570L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Yamaha Exciter (EX570L) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI UNIT ASSY

84M-85540-20-00

1
Out of stock

2

BAND

2A7-85546-00-00

—

$20.40

In stock

3

VOLTAGE REGULATOR ASSY

82M-81910-A0-00

—
Out of stock

4

BOLT(8CP)

97017-06014-00

1

$5.12

In stock

5

NUT, NYLON

95707-06300-00

1

$3.20

In stock

6

IGNITION COIL ASSEMBLY (82M-82310-10)

82M-82310-T0-00

1
Out of stock

7

WIRE, SUB-LEAD

87D-82318-00-00

1
Out of stock

8

TUBE 1

82M-87196-00-00

1
Out of stock

9

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

10

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

11

CLAMP, CORD

861-82361-00-00

—

$5.34

In stock

12

PLUG CAP ASSY

8DG-82370-00-00

1
Out of stock

13

MAIN SWITCH ASSY

8K4-82510-20-00

1
Out of stock

14

WIRE HARNESS ASSEMBLY

82M-82590-20-00

1
Out of stock

15

CHECKER, PILOT LAMP

38W-85774-00-00

1
Out of stock

16

PILOT LIGHT ASSEMBLY 1

8V0-84301-00-00

1
Out of stock

17

. BULB (12V5W)

8V0-85353-00-00

1
Out of stock

18

OIL LUL GAUGE ASY

47X-85720-02-00

1
Out of stock
