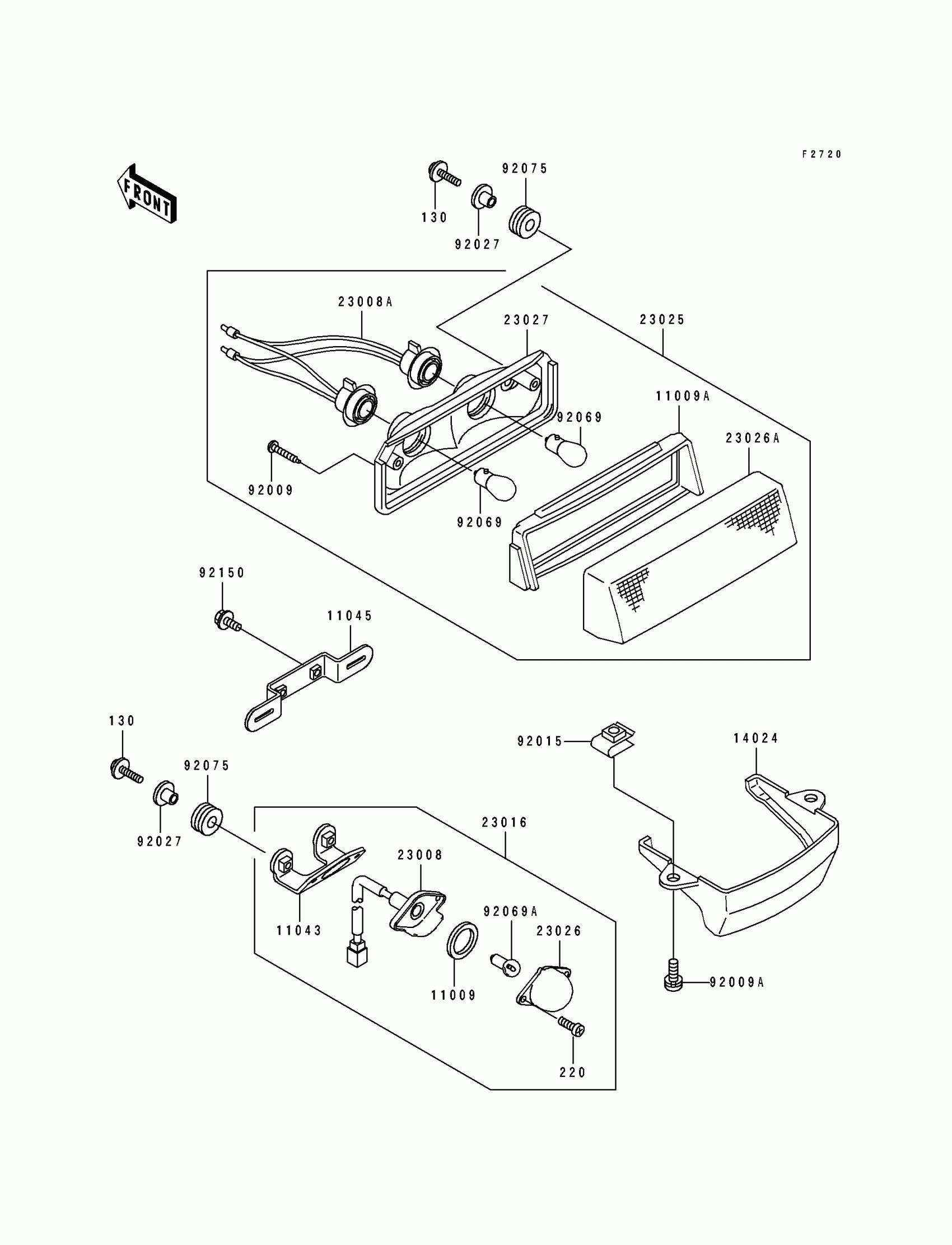

Find the part on the Taillight diagram for your 1993 Kawasaki EX500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Kawasaki EX500 Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$4.14

In stock

11009A

GASKET,TAIL LAMP

11009-1404

1

$20.20

In stock

11043

BRACKET,LICENSE PLATE LAMP

11043-1497

1
Out of stock

11045

BRACKET,LICENSE

11045-1387

1

$13.20

In stock

14024

COVER,LICENSE LAMP

14024-1386

1
Out of stock

23008

SOCKET-ASSY,LICENSE PLATE LAMP

23008-1221

1
Out of stock

23008A

1

$37.08

In stock

23016

1

$77.63

In stock

23025

LAMP-TAIL

23025-1105

1
Out of stock

23026

LENS,LAMP

23026-1054

1

$9.02

In stock

23026A

LENS,TAIL LAMP

23026-1056

1

$30.16

In stock

23027

BODY-COMP-TAIL LAMP

23027-1055

1
Out of stock

92009

SCREW,TAPPING,4X30

92009-1056

1
Out of stock

92009A

SCREW,5X14

92009-1653

1
Out of stock

92015

NUT,5MM

92015-1710

1

$4.93

In stock

92027

COLLAR,L=13.1

92027-251

1
Out of stock

92069

BULB,12V 27/8W

92069-059

1

$6.45

In stock

92069A

BULB,12V 8W

92069-1012

1
Out of stock

92075

DAMPER,10X24X12

92075-1690

1

$3.97

In stock

92150

BOLT,6X14

92150-1133

1

$3.57

In stock

130

BOLT-FLANGED,6X25

130H0625

1
Out of stock

220

SCREW PAN HEAD 4X10

220B0410

1
Out of stock
