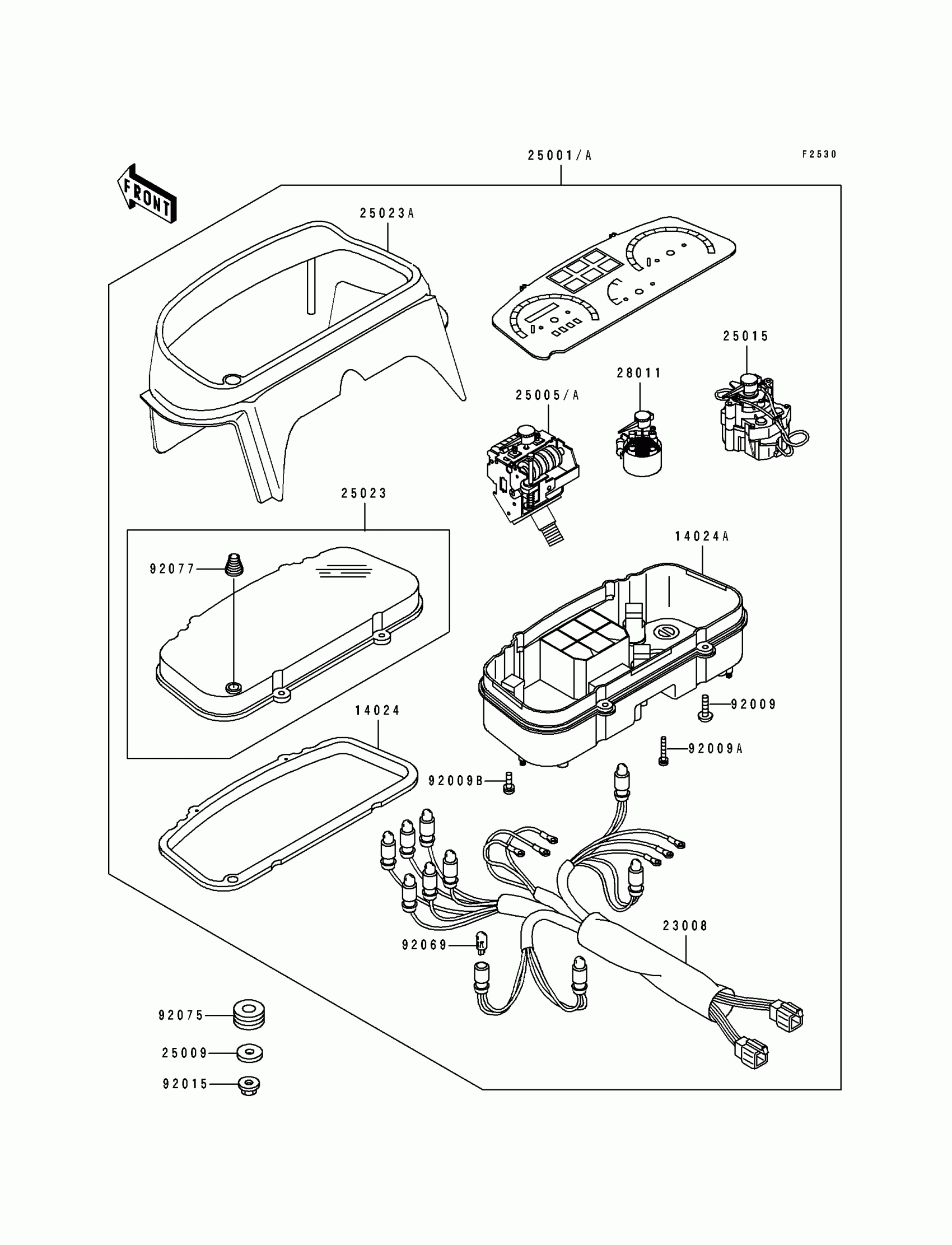

Find the part on the Meters diagram for your 1993 Kawasaki EX500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Kawasaki EX500 Meters Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14024

COVER,METER

14024-1278

1
Out of stock

14024A

COVER,METER HOUSING

14024-1289

1
Out of stock

23008

SOCKET-ASSY,METER

23008-1314

1

$98.50

In stock

25001

METER-ASSY,MPH

25001-1677

1

$1,342.04

In stock

25001A

METER-ASSY,KPH

25001-1678

1
Out of stock

25005

SPEEDOMETER,KPH

25005-1348

1
Out of stock

25005A

SPEEDOMETER,MPH

25005-1349

1

$442.16

In stock

25009

WASHER,5.2X16X1.2

25009-004

1

$3.03

In stock

25015

1

$546.82

In stock

25023

1

$119.86

In stock

25023A

COVER-METER CASE

25023-1151

1

$51.70

In stock

28011

METER,TEMP

28011-1097

1

$112.92

In stock

92009

SCREW,TAPPING,4X16

92009-1163

1
Out of stock

92009A

SCREW,3X22

92009-1293

1
Out of stock

92009B

SCREW,3X10

92009-1382

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92069

BULB,12V 3.4W,T10

92069-1007

1

$3.97

In stock

92075

1

$4.51

In stock

92077

1

$7.88

In stock
