1989 Kawasaki EX500 Swingarm Diagram

← All diagrams

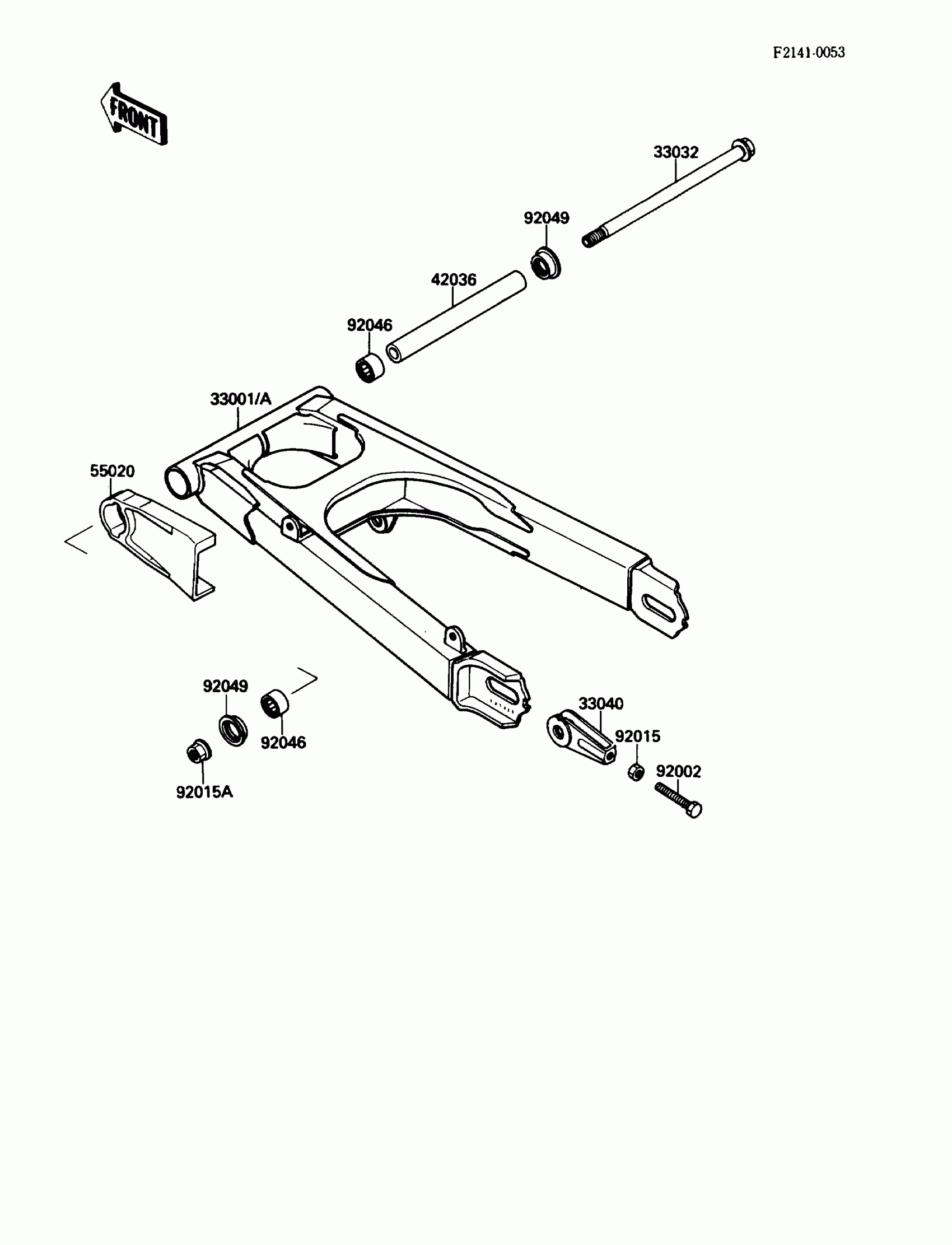

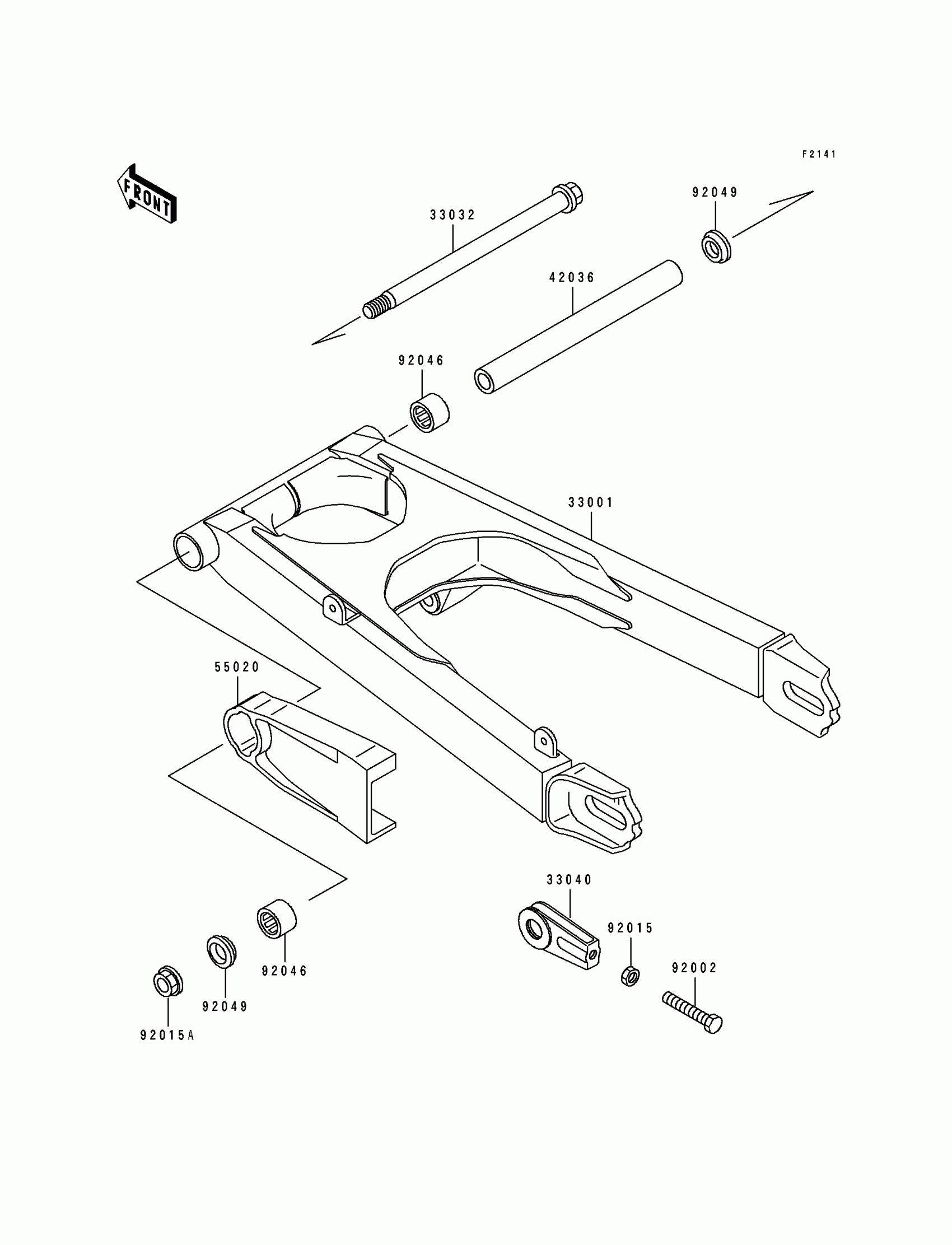

Find the part on the Swingarm diagram for your 1989 Kawasaki EX500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki EX500 Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

33001

1

$411.66

In stock

33032

SHAFT-SWING ARM

33032-1109

1

$68.68

In stock

33040

ADJUSTER-CHAIN

33040-043

1

$31.12

In stock

42036

SLEEVE,14.1X22X220

42036-1212

1

$69.31

In stock

55020

GUARD,CHAIN

55020-1218

1

$56.73

In stock

92002

BOLT,8X55

92002-1825

1
Out of stock

92015

NUT,8MM

92015-1364

1

$3.12

In stock

92015A

NUT,14MM

92015-1407

1

$7.86

In stock

92046

1

$19.68

In stock

92049

SEAL-OIL,MHA22 28 5.7F

92049-1254

1
Out of stock
