1989 Kawasaki EX500 Rear Suspension Diagram

← All diagrams

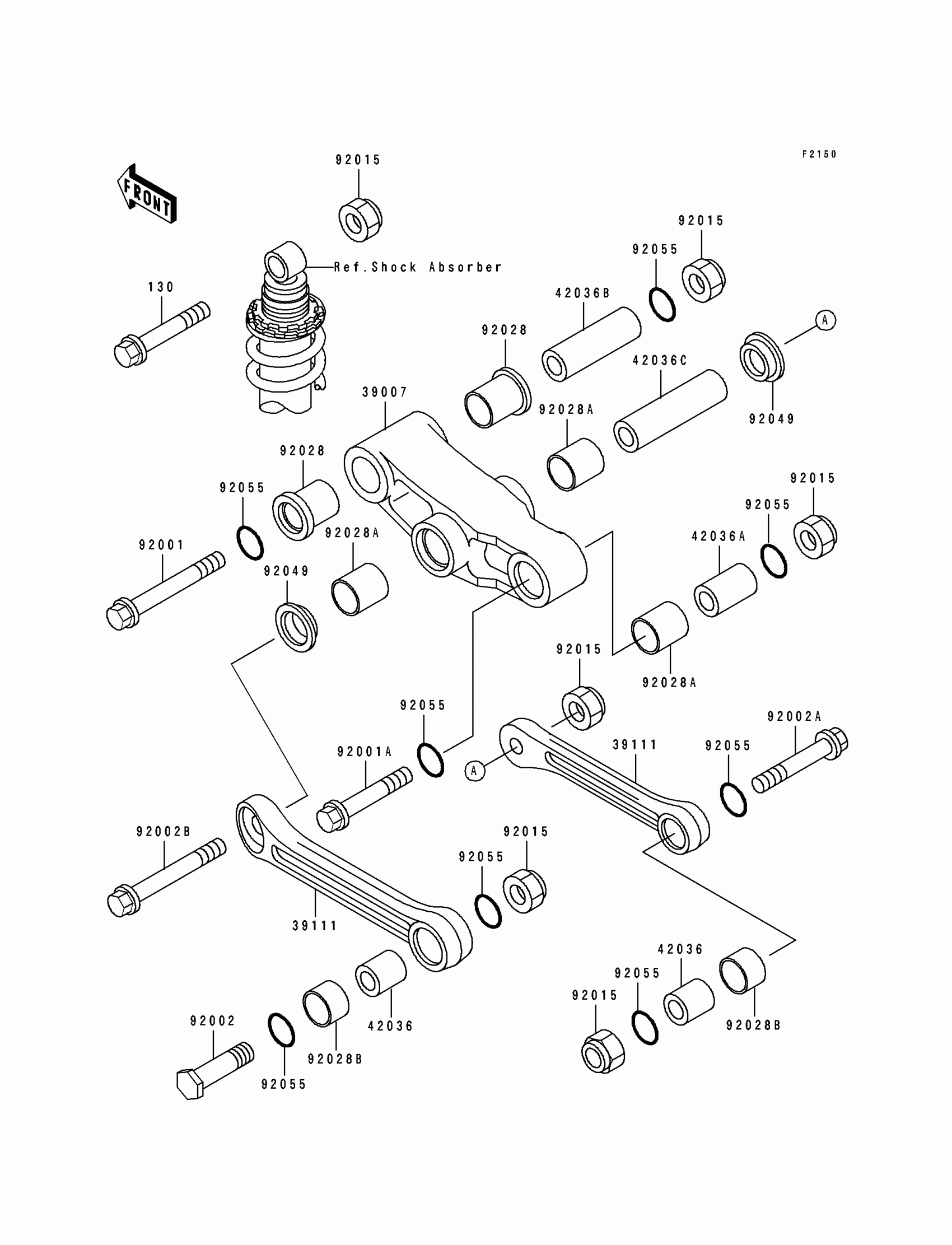

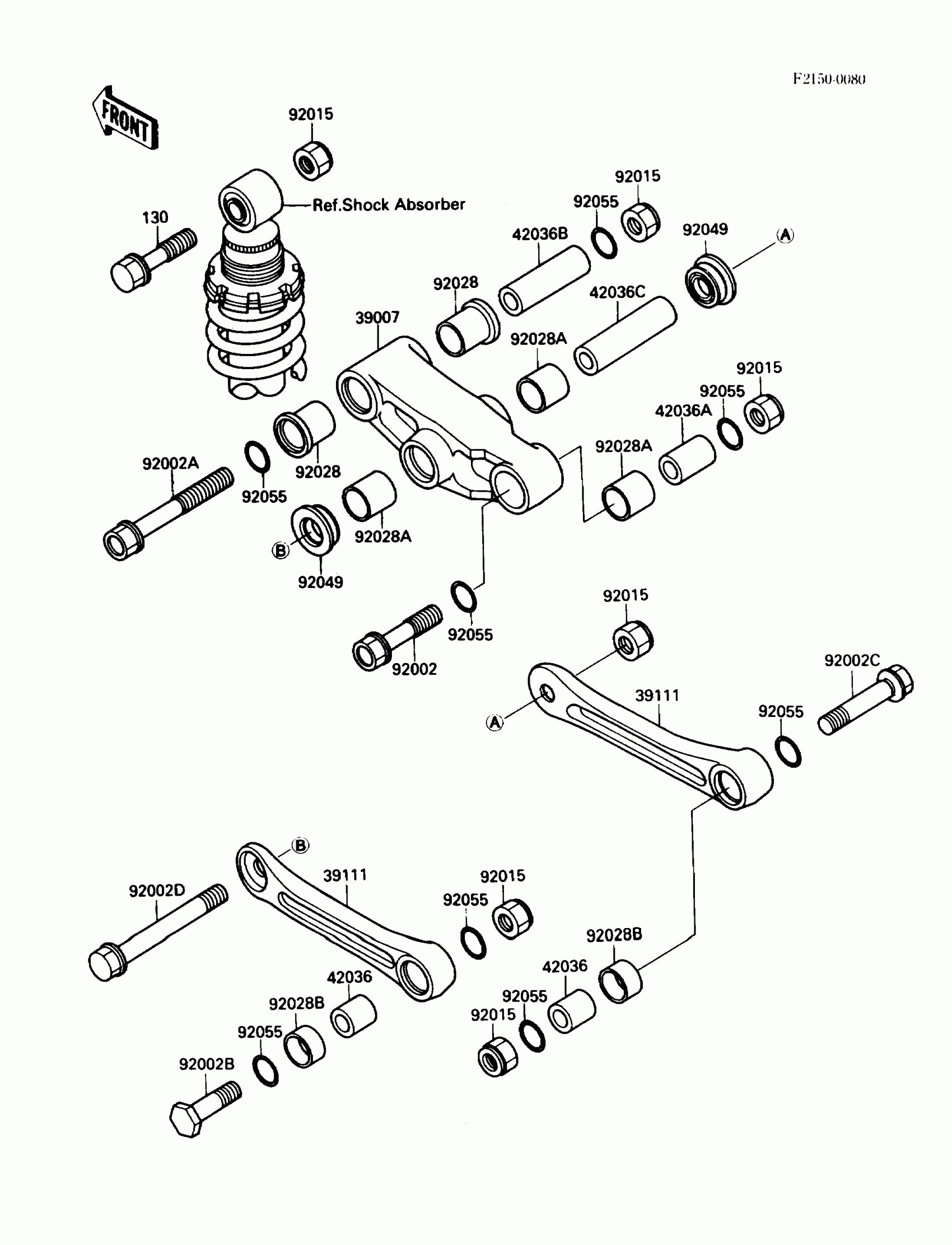

Find the part on the Rear Suspension diagram for your 1989 Kawasaki EX500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki EX500 Rear Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39007

ARM-SUSP,UNI TRAK

39007-1120

1

$254.72

In stock

39111

ROD-TIE,UNI TRAK

39111-1072

1

$86.03

In stock

42036

SLEEVE,12.1X20X22

42036-1076

1

$17.56

In stock

42036A

SLEEVE,12.1X20X32

42036-1077

1

$15.76

In stock

42036B

SLEEVE,ARM,FR

42036-1078

1

$23.73

In stock

42036C

SLEEVE,12.1X20X74

42036-1102

1

$29.28

In stock

92002

BOLT,12X55

92002-1062

1

$5.90

In stock

92002A

BOLT,12X90

92002-1063

1

$16.44

In stock

92002B

BOLT,12X45

92002-1065

1

$11.86

In stock

92002C

BOLT,FLANGED,12X60

92002-1885

1
Out of stock

92002D

BOLT,FLANGED,12X100

92002-1886

1
Out of stock

92015

NUT,LOCK,12MM

92015-1375

1

$7.58

In stock

92028

BUSHING,FLANGED

92028-1200

1

$7.27

In stock

92028A

BUSHING,20X23X25L

92028-1201

1

$3.64

In stock

92028B

BUSHING,20X23X15

92028-1202

1

$26.08

In stock

92049

SEAL-OIL,ARM

92049-1109

1
Out of stock

92055

RING-O,19.8X2.2

92055-1215

1

$3.43

In stock

130

BOLT-FLANGED

130G1250

1
Out of stock
