1989 Kawasaki EX500 Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1989 Kawasaki EX500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

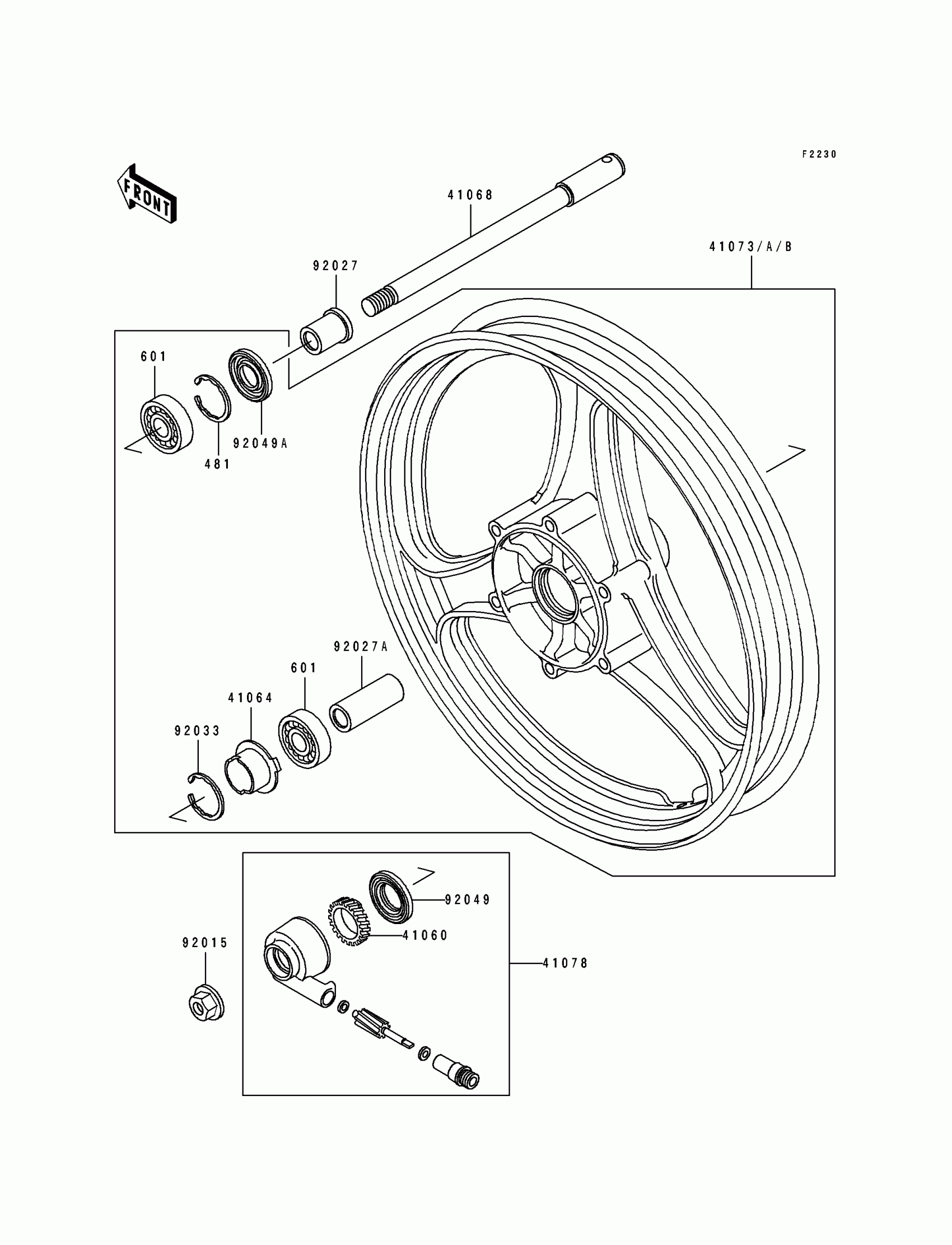

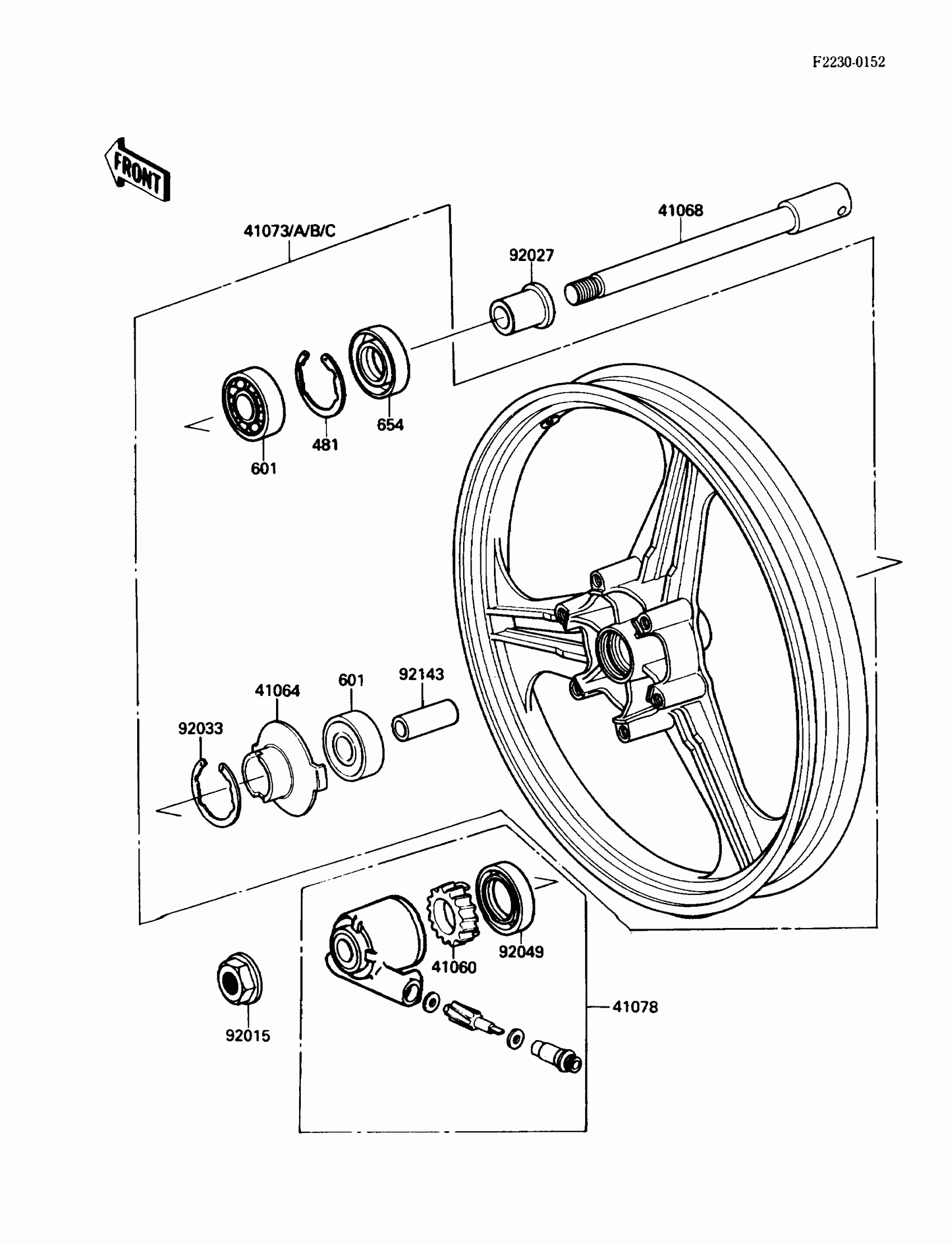

1989 Kawasaki EX500 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41060

1

$20.90

In stock

41064

1

$11.81

In stock

41068

AXLE,FR

41068-1238

1
Out of stock

41073

WHEEL-ASSY,FR,WHITE NO.1

41073-1329-T6

1

$553.50

In stock

41073B

WHEEL-ASSY,FR,F.RED

41073-1329-X4

1

$553.50

In stock

41073C

WHEEL-ASSY,FR,F.RED

41073-1411-X4

1

$941.98

In stock

41078

1

$124.72

In stock

92015

NUT,14MM

92015-1032

1
Out of stock

92027

COLLAR,L=34

92027-1118

1

$18.36

In stock

92033

RING-SNAP,42MM

92033-1041

1

$4.88

In stock

92049

SEAL-OIL,BJN30427-C3

92049-1057

1
Out of stock

92143

COLLAR,15.2X22X60

92027-1980

1

$14.15

In stock

481

1

$1.64

In stock

601

BEARING-BALL

601B6202UU

1

$20.38

In stock

654

OIL SEAL,22X35X8

654A223508

1
Out of stock
