1989 Kawasaki EX500 Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1989 Kawasaki EX500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

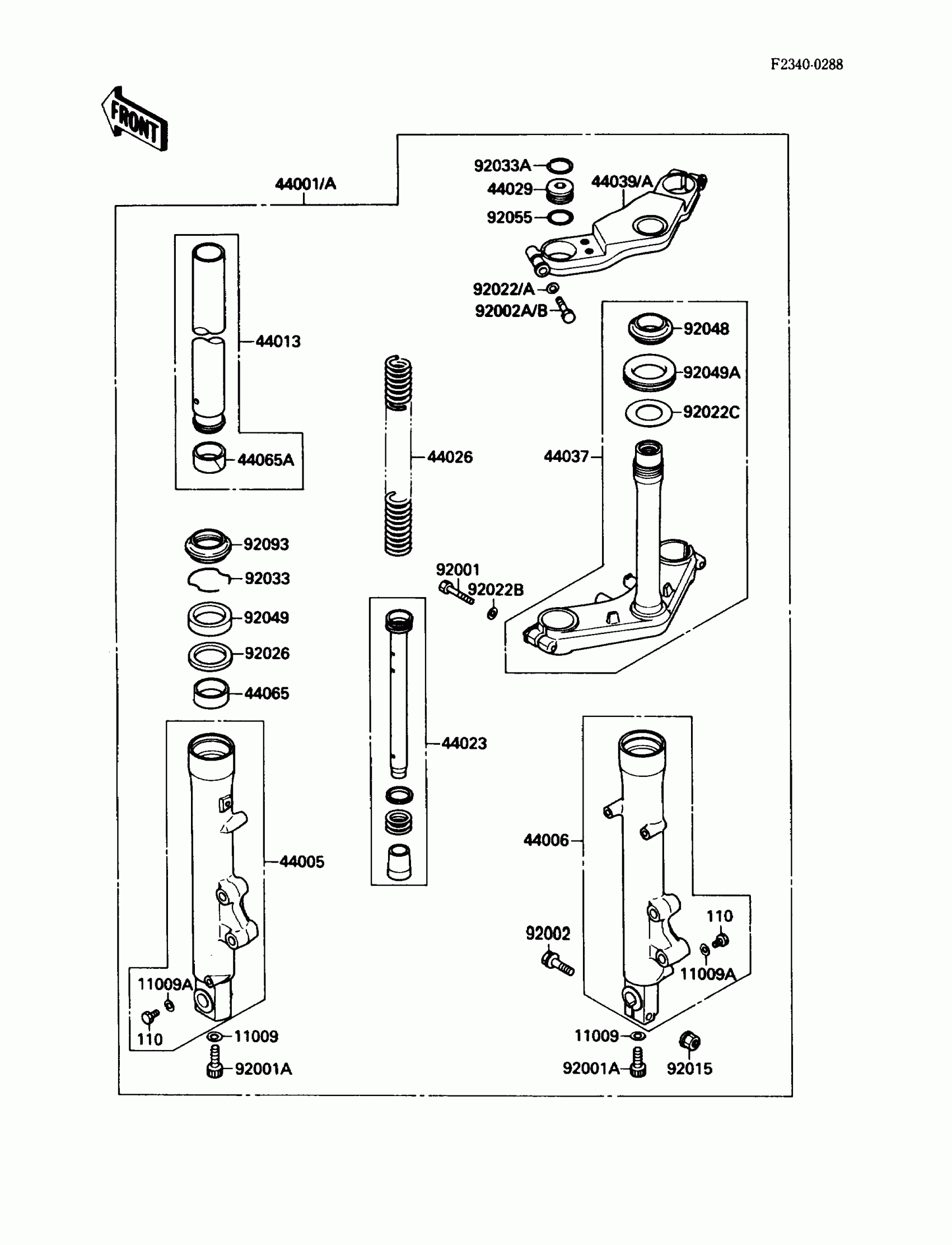

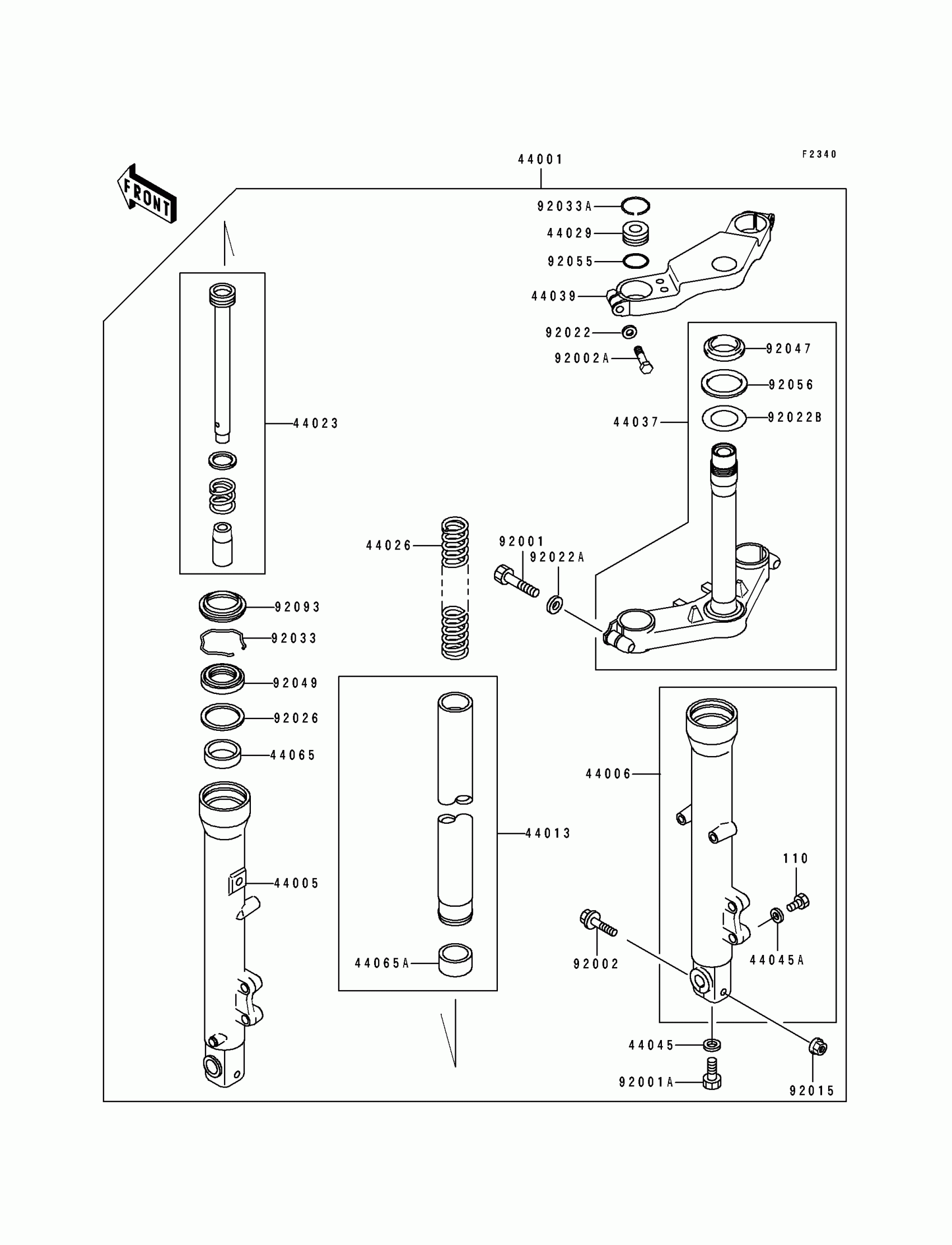

1989 Kawasaki EX500 Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$4.88

In stock

11009A

GASKET,DRAIN PLUG

44045-052

1

$7.42

In stock

44001A

FORK-FRONT

44001-1712

1

$1,676.28

In stock

44005

1

$376.17

In stock

44006

1

$412.70

In stock

44013

PIPE-FORK INNER

44013-1262

1
Out of stock

44023

CYLINDER-COMP-FORK

44023-1058

1

$126.82

In stock

44026

SPRING-FRONT FORK

44026-1366

1

$65.86

In stock

44029

SEAT-FORK SPRING

44029-1124

1

$42.24

In stock

44037

HOLDER-FORK UNDER

44037-1212

1
Out of stock

44039A

HOLDER-FORK UPPER

44039-1182

1
Out of stock

44065

BUSHING-FRONT FORK

44065-1068

1

$22.97

In stock

44065A

BUSHING-FRONT FORK,INNER PIPE

44065-1069

1
Out of stock

92001

BOLT,10X40

92001-1454

1

$9.34

In stock

92001A

BOLT,FORK CYLINDER

92001-1464

1

$4.93

In stock

92002

BOLT,FLANGED,8X50

92002-1159

1
Out of stock

92002B

BOLT

92002-1959

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1408

1

$4.27

In stock

92022

WASHER,SPRING,8MM

92022-1552

1

$2.36

In stock

92022B

WASHER,SPRING,10MM

92022-1704

1

$3.14

In stock

92022C

WASHER,30.5X50X0.6

92022-231

1
Out of stock

92026

SPACER,FORK

92026-1038

1

$9.88

In stock

92033

RING-SNAP,FORK

92033-1219

1

$5.01

In stock

92033A

RING-SNAP,FORK TOP

92033-1220

1

$8.97

In stock

92048

RACE,STEERING STEM BEARING

92047-012

1
Out of stock

92049

SEAL-OIL,FORK

92049-1226

1
Out of stock

92049A

1

$7.04

In stock

92055

1

$9.05

In stock

92093

SEAL,FORK

92093-1196

1

$22.97

In stock

110

BOLT HEX HEAD 6X8

110B0608

1
Out of stock
