1979 Yamaha EX440C Shroud Diagram

← All diagrams

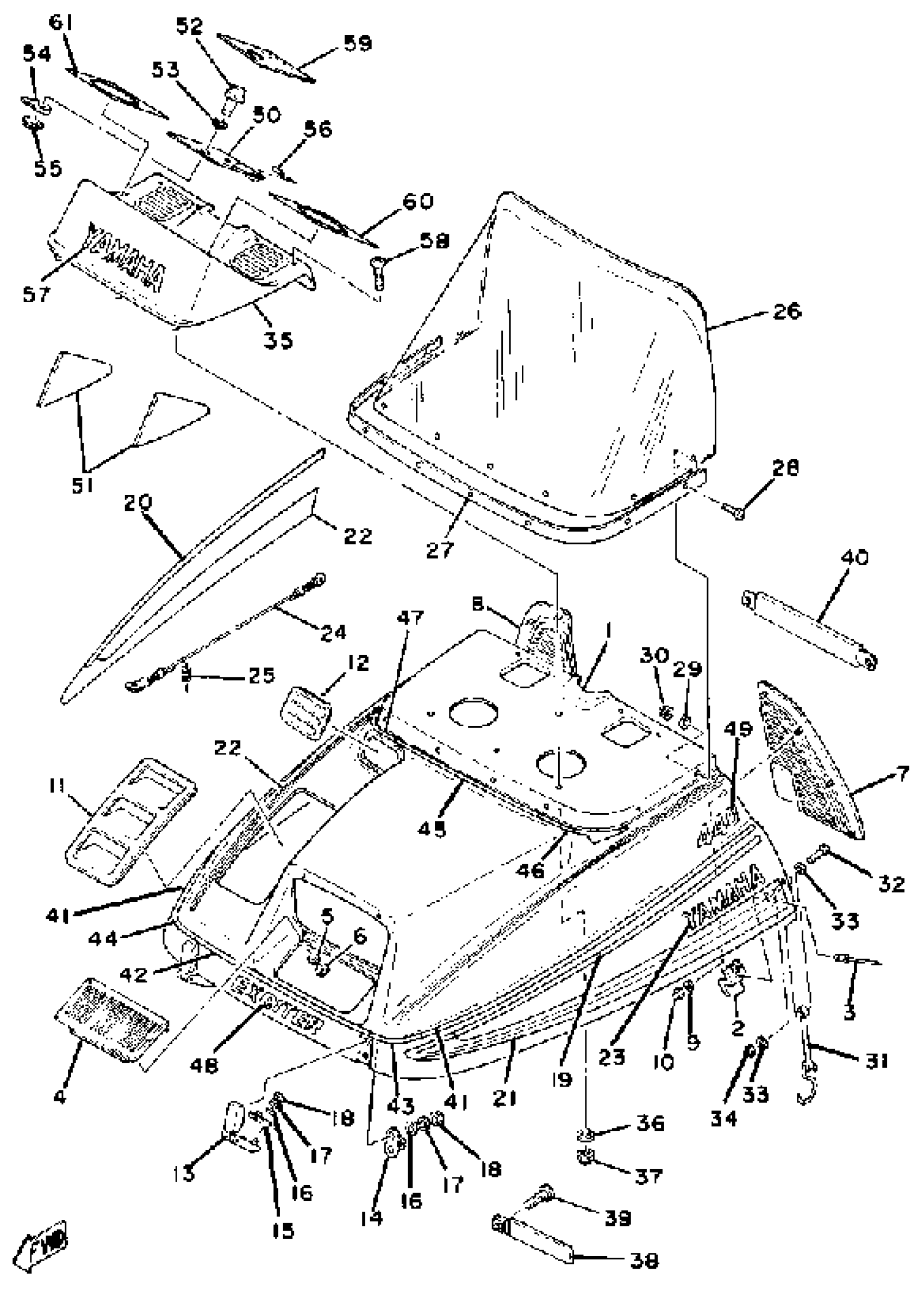

Find the part on the Shroud diagram for your 1979 Yamaha EX440C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha EX440C Shroud Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD ASSEMBLY

8H6-W7711-00-00

1
Out of stock

2

CLAMP 2

8A5-77136-01-00

1
Out of stock

3

RIVET, BLIND

90267-40936-00

1

$1.38

In stock

4

LOUVER 6

8A5-77108-30-00

1
Out of stock

5

NUT 6504269100

90183-05003-00

1
Out of stock

6

EMBLEM 3

838-77143-00-00

1
Out of stock

7

LOUVER 1

8A5-77131-01-00

1
Out of stock

8

LOUVER 2

8A5-77132-01-00

1
Out of stock

9

WASHER, PLATE 8067717800

90201-05029-00

1

$5.12

In stock

10

NUT, NYLON

95707-05300-00

1

$2.74

In stock

11

LOUVER 4

8A5-77134-30-00

1
Out of stock

12

LOUVER 5

8A5-77109-30-00

1
Out of stock

13

HINGE ASSEMBLY

878-77140-00-00

1
Out of stock

14

PLATE, BACK UP 1

8G6-77153-00-00

1
Out of stock

15

PLATE, BACK UP 2

878-77154-00-00

1
Out of stock

16

WASHER, PLATE

90201-06M08-00

1
Out of stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

19

ORNAMENT 1

(8H6-77163-00-00)

1
Out of stock

20

ORNAMENT 2

(8H6-77164-00-00)

1
Out of stock

21

ORNAMENT 4

(8H6-77113-00-00)

1
Out of stock

22

ORNAMENT 5

(8H6-77114-00-00)

1
Out of stock

23

EMBLEM 7

(8H6-77357-00-00)

1
Out of stock

24

STOPPER, SHROUD

(8H6-77118-00-00)

1
Out of stock

25

CLAMP,ROD

838-77159-00-00

—

$3.49

In stock

26

WINDSHIELD

8A5-77210-00-00

1
Out of stock

27

TRIM, LOWER

8G6-77214-00-00

1
Out of stock

28

SCREW, BINDING (8G6)

90154-05002-00

—

$7.05

In stock

29

WASHER, PLATE 8067717800

90201-05029-00

1

$5.12

In stock

30

NUT, NYLON

95707-05300-00

1

$2.74

In stock

31

LATCH ASSEMBLY

856-77170-00-00

1
Out of stock

32

SCREW, BIND(J39)

98980-06030-00

—

$5.62

In stock

33

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

34

NUT, NYLON

95707-06300-00

—

$3.20

In stock

35

PANEL, METER

(8H6-83611-00-00)

1
Out of stock

36

WASHER, PLATE 8067717800

90201-05029-00

1

$5.12

In stock

37

NUT, NYLON

95707-05300-00

1

$2.74

In stock

38

CLAMP

90462-06037-00

1
Out of stock

39

SCREW, BINDING

98907-06008-00

—

$6.68

In stock

40

CLAMP

90465-05128-00

1
Out of stock

41

NO LONGER AVAILABLE

8H6-77281-00-00

1
Out of stock

42

STRIPE 2

(8H6-77282-00-00)

1
Out of stock

43

STRIPE 3

(8H6-77283-00-00)

1
Out of stock

44

STRIPE 4

(8H6-77284-00-00)

1
Out of stock

45

STRIPE 5

(8H6-77285-00-00)

1
Out of stock

46

STRIPE 6

(8H6-77286-00-00)

1
Out of stock

47

STRIPE 7

(8H6-77287-00-00)

1
Out of stock

48

EMBLEM 6

(8H6-77356-00-00)

1
Out of stock

49

EMBLEM 8

(8H6-77358-00-00)

1
Out of stock

50

COVER, LUGGAGE BOX

(8H6-77392-00-00)

1
Out of stock

51

SHEET, LUGGAGE BOX

8H6-77394-00-00

1
Out of stock

52

KNOB

8H6-77324-00-00

1
Out of stock

53

WASHER, WAVE

(90206-10063-00)

1
Out of stock

54

LEVER, ARM FITTING

8H6-77328-00-00

1
Out of stock

55

NUT, SPRING

90183-06071-00

1

$0.54

In stock

56

PIN

8H6-77384-00-00

1
Out of stock

57

EMBLEM 9

(8H6-77359-00-00)

1
Out of stock

58

SCREW, FLAT

98707-05016-00

—

$5.60

In stock

59

EMBLEM 10

(8H6-77365-00-00)

1
Out of stock

60

EMBLEM 11

8H6-77366-00-00

1
Out of stock

61

EMBLEM 12

8H6-77367-00-00

1
Out of stock
