1979 Yamaha EX440C Crankcase-Cylinder Diagram

← All diagrams

Find the part on the Crankcase-Cylinder diagram for your 1979 Yamaha EX440C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

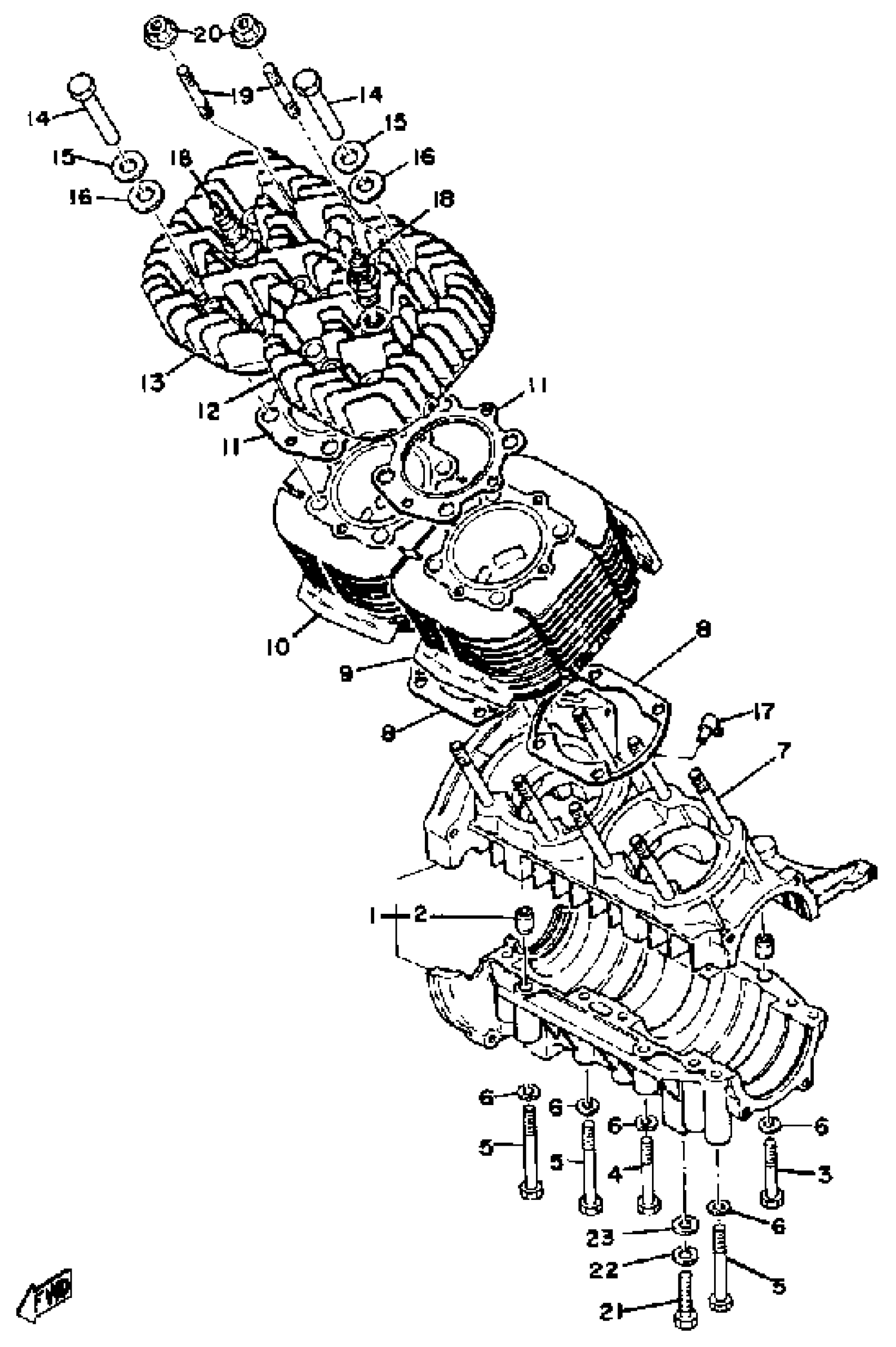

1979 Yamaha EX440C Crankcase-Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO LONGER AVAILABLE

8A5-15100-00-00

1
Out of stock

2

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

3

BOLT, HEXAGON

97013-08050-00

—

$6.82

In stock

4

BOLT, HEXAGON

97013-08055-00

1

$3.25

In stock

5

BOLT(6TC)

97027-08070-00

—

$6.88

In stock

6

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

7

BOLT (248-11361-00)

90116-08064-00

1
Out of stock

8

GASKET, CYLINDER

857-11351-09-00

1

$3.62

In stock

9

CYLINDER 1

8A5-11311-01-00

1
Out of stock

10

CYLINDER 2

8A5-11321-01-00

1
Out of stock

11

GASKET, CYL HEAD 1

828-11181-09-00

1
Out of stock

12

HEAD, CYLINDER 1

8A5-11111-00-00

1
Out of stock

13

HEAD, CYLINDER 2

8A5-11121-10-00

1
Out of stock

14

NUT, SPEC''L SHAPE

90179-08090-00

1
Out of stock

15

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

—
Out of stock

16

YBS66-12 WASHER,PLAIN

92990-12200-00

—

$6.17

In stock

17

PIPE, JOINT

8E4-24461-00-00

1
Out of stock

18

PLUG, SPARK (NGK BR-9EVX)

BR9-EIX00-00-00

1

$14.69

In stock

19

BOLT, STUD

(95611-08650-00)

1
Out of stock

20

NUT, FLANGE

95704-08500-00

—
Out of stock

21

BOLT, DOME HEAD

90106-10034-00

1
Out of stock

22

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

23

WASHER, PLATE(8BV)

90201-100S7-00

—

$9.75

In stock
