1979 Yamaha EX440C Engine Bracket - Drive Guard Diagram

← All diagrams

Find the part on the Engine Bracket - Drive Guard diagram for your 1979 Yamaha EX440C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

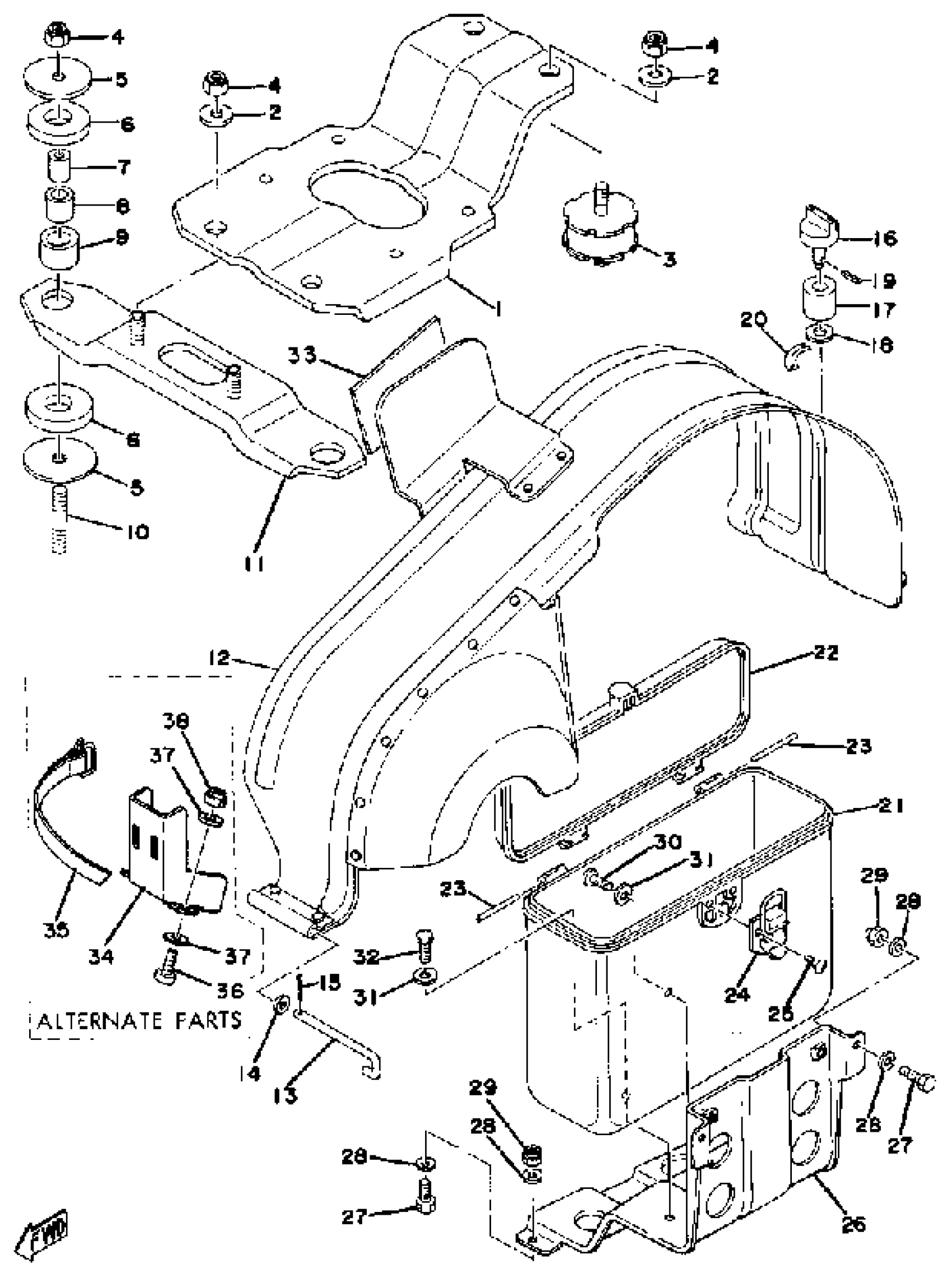

1979 Yamaha EX440C Engine Bracket - Drive Guard Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, ENGINE 1

8A5-21411-00-00

1
Out of stock

2

WASHER, PLATE (856)

90201-10321-00

1

$5.43

In stock

3

DAMPER 2

857-21486-00-00

1
Out of stock

4

NUT, SELF-LOCKING

90185-10017-00

1
Out of stock

5

WASHER (888)

90201-10151-00

—

$3.94

In stock

6

DAMPER, RUBBER 1

8V0-21485-00-00

1
Out of stock

7

COLLAR

90387-10514-00

1
Out of stock

8

BUSH, SPEC''L RUBBER

90385-15025-00

1
Out of stock

9

COLLAR

90387-21515-00

1
Out of stock

10

BOLT, STUD

95611-10345-00

1
Out of stock

11

BRACKET, ENGINE 2

8A5-21419-00-00

1
Out of stock

12

GUARD, DRIVE

8E7-77311-00-00

1
Out of stock

13

PIN(8E7)

91701-06082-00

1

$4.60

In stock

14

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

15

PIN, COTTER

91490-20025-00

1

$1.31

In stock

16

KNOB

8A5-77324-00-00

1
Out of stock

17

BUSH, SPEC''L RUBBER

90385-08009-00

1
Out of stock

18

WASHER, PLATE

90201-08104-00

1
Out of stock

19

PIN, SPRING (91609-40025-00)

91609-40024-00

1
Out of stock

20

EMBLEM 11

(829-77366-00-00)

1
Out of stock

21

LUGGAGE BOX

(8E7-77391-00-00)

1
Out of stock

22

COVER, LUGGAGE BOX

8E7-77392-00-00

1
Out of stock

23

PIN, SPEC''L SHAPE

90249-03021-00

1
Out of stock

24

LUGGE BOX LTCH ASSEMBLY

8E7-77340-00-00

1
Out of stock

25

SCREW, FLAT

98707-03008-00

—

$5.62

In stock

26

STAY 1

(8E7-77397-00-00)

1
Out of stock

27

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

28

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

29

NUT, NYLON

95707-06300-00

—

$3.20

In stock

30

SCREW, BIND(J45)

98980-06012-00

—

$4.70

In stock

31

WASHER, PLATE

90201-06747-00

—

$6.17

In stock

32

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

33

DAMPER 1

(8G6-77319-00-00)

1
Out of stock

34

STAY, BELT

(8G9-77338-00-00)

1
Out of stock

35

BAND, SERVICE BAG

(8G9-77332-00-00)

1
Out of stock

36

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

37

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

38

NUT, NYLON

95707-05300-00

—

$2.74

In stock
