1979 Yamaha EX440C Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1979 Yamaha EX440C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

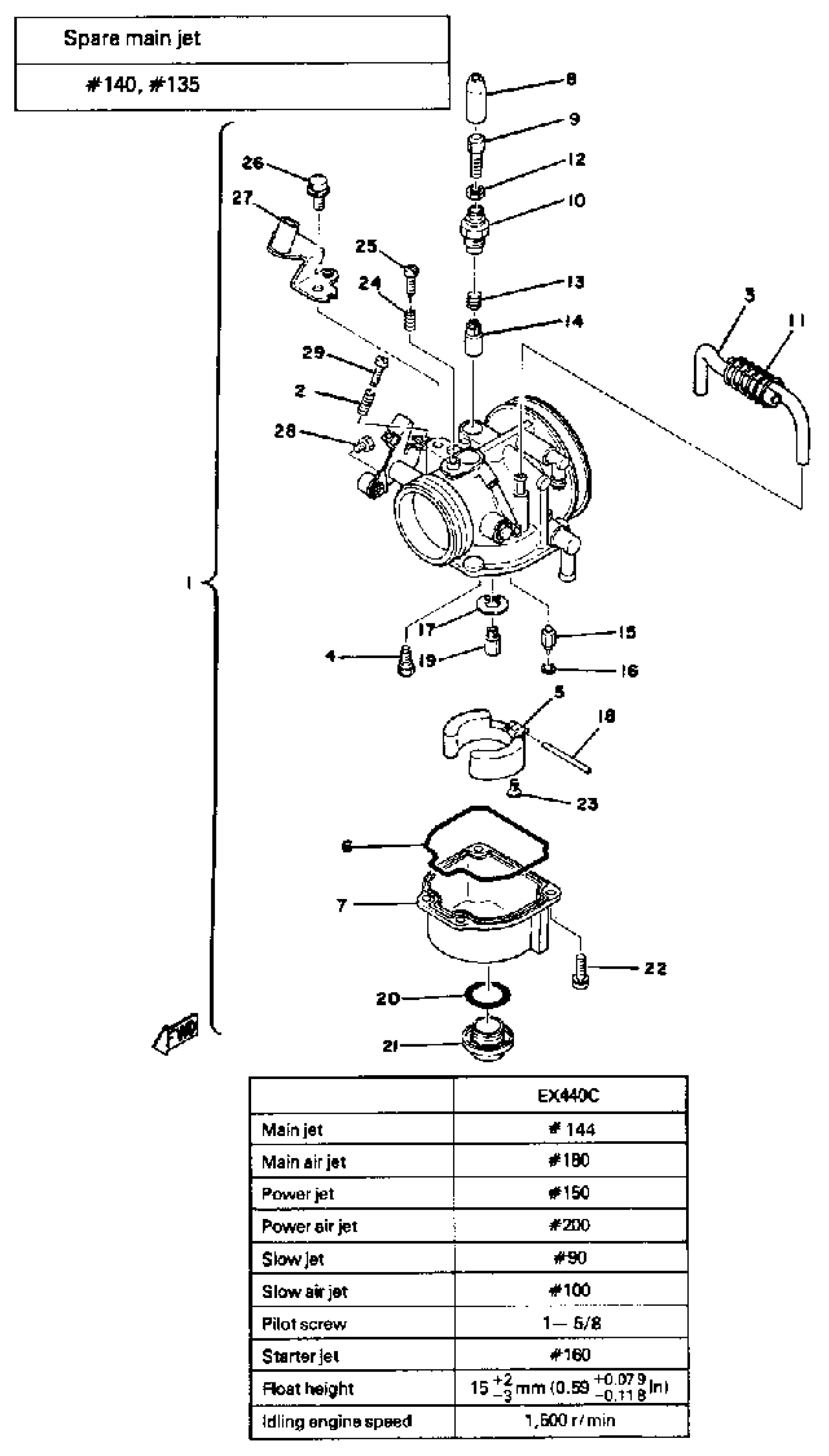

1979 Yamaha EX440C Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

8H6-14101-01-00

1
Out of stock

2

. SPRING, COMPRESSION

90501-12229-00

1
Out of stock

3

NET, FILTER

(8G6-14994-00-00)

1
Out of stock

4

. JET #90

8G6-14948-23-00

1
Out of stock

5

FLOAT

8G6-14985-01-00

1

$32.43

In stock

6

WASHER, FLOAT CHAMBER

8G6-14984-00-00

1

$16.62

In stock

7

BODY, FLOAT CHAMBER

(8H6-14980-00-00)

1
Out of stock

8

COVER

(8A6-14967-00-00)

1
Out of stock

9

1

$19.06

In stock

10

CAP, PLUNGER

8A6-14969-00-00

1

$23.14

In stock

11

. SPRING, COMPRESSION

90501-08535-00

1
Out of stock

12

. NUT, CABLE ADJUSTING

8E7-14161-00-00

1
Out of stock

13

SPRING (8E7)

90501-08443-00

1

$8.63

In stock

14

PLUNGER, STARTER

371-14993-60-00

1

$31.14

In stock

15

VALVE,FLOAT

8E7-14546-01-00

1

$57.49

In stock

16

CLIP

633-14159-00-00

—

$13.88

In stock

17

CLIP

(8A5-14159-00-00)

1
Out of stock

18

. PIN, FLOAT ARM

663-14548-00-00

1

$5.34

In stock

19

. JET, MAIN #135

8A6-14516-35-00

1
Out of stock

19

. JET, MAIN #140

8A6-14516-40-00

1
Out of stock

19

. JET, MAIN #145

8A6-14516-45-00

1
Out of stock

19

. JET, MAIN #150

8A6-14516-50-00

1
Out of stock

20

O-RING (8A6)

93210-19309-00

—

$4.91

In stock

21

. ROD

8M7-14992-00-00

1
Out of stock

22

SCREW, PN/HD.W/WSHR

(97602-04114-00)

1
Out of stock

23

SCREW, FLAT

98707-04008-00

1
Out of stock

24

SPRING, COMPRESSION

90501-08214-00

—

$5.74

In stock

25

SCREW, ADJUST

8G6-14521-00-00

—

$11.28

In stock

26

. SCREW

8G6-14592-00-00

1
Out of stock

27

. PLATE, STAY

8G6-14572-00-00

1
Out of stock

28

SCREW

(8F3-14591-00-00)

1
Out of stock

29

. SCREW, PAN HEAD

90157-04010-00

1
Out of stock
