1979 Yamaha EX440C Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1979 Yamaha EX440C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

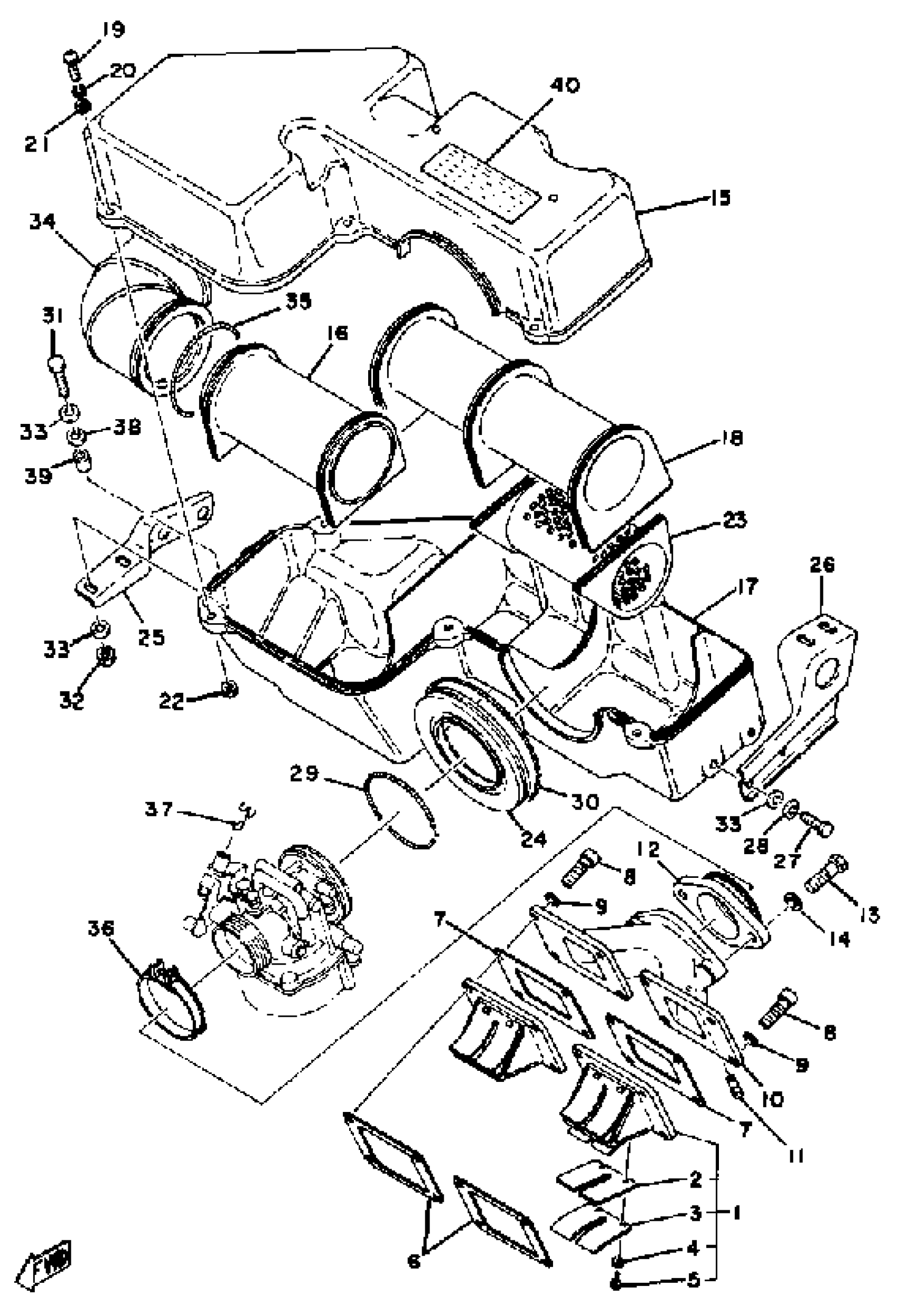

1979 Yamaha EX440C Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSY

10V-13610-01-00

1

$137.01

In stock

2

REED VALVE 1

10V-13613-01-00

1

$25.35

In stock

3

. STOPPER, REED VALVE (10V-12616-01-00)

1UA-13616-00-00

1
Out of stock

4

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

5

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

6

GASKET, VALVE SEAT

3TT-13621-00-00

1

$17.31

In stock

7

GASKET

866-13563-09-00

1
Out of stock

8

BOLT,SOCKET

91317-06025-00

1

$2.05

In stock

9

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

10

JOINT, CARBURETOR

(885-13565-00-00)

1
Out of stock

11

NOZZLE

824-13552-00-00

1
Out of stock

12

MANIFOLD, INTAKE

8H8-13555-01-00

1
Out of stock

13

BOLT, HEXAGON

97017-08025-00

1

$7.46

In stock

14

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

15

SILENCER, INTAKE 1

8A5-14431-00-00

1
Out of stock

16

PIPE

8A5-14419-00-00

1
Out of stock

17

SILENCER, INTAKE 2

8A5-14441-00-00

1
Out of stock

18

PIPE

(8A5-14465-00-00)

1
Out of stock

19

SCREW, PAN HEAD(4MY)

98507-05018-00

—

$2.48

In stock

20

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

21

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

22

NUT, HEXAGON

95317-05600-00

—

$1.10

In stock

23

PIPE

(8A5-14466-01-00)

1
Out of stock

24

JOINT, AIR CLNR 1

8G6-14453-00-00

1
Out of stock

25

STAY 1

(8A5-14493-00-00)

1
Out of stock

26

STAY 2

(8G6-14494-00-00)

1
Out of stock

27

BOLT (661)

97013-06012-00

—

$4.71

In stock

28

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

29

—

$6.89

In stock

30

SPRING, TENSION

90506-06131-00

1
Out of stock

31

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

32

NUT, SELF-LOCKING

95617-06100-00

—

$2.32

In stock

33

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

34

PIPE, SUCTION

8A5-14423-00-00

—
Out of stock

35

—

$6.89

In stock

36

CLAMP, HOSE

90460-60084-00

1
Out of stock

37

CLAMP, THROTTLE

830-41222-00-00

1
Out of stock

38

WASHER, PLATE

90201-06020-00

—

$6.28

In stock

39

COLLAR (90387-066J9)

90387-064W1-00

1
Out of stock

40

LABEL, CAUTION

8A5-14488-00-00

1
Out of stock
