1979 Yamaha EX440C Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1979 Yamaha EX440C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

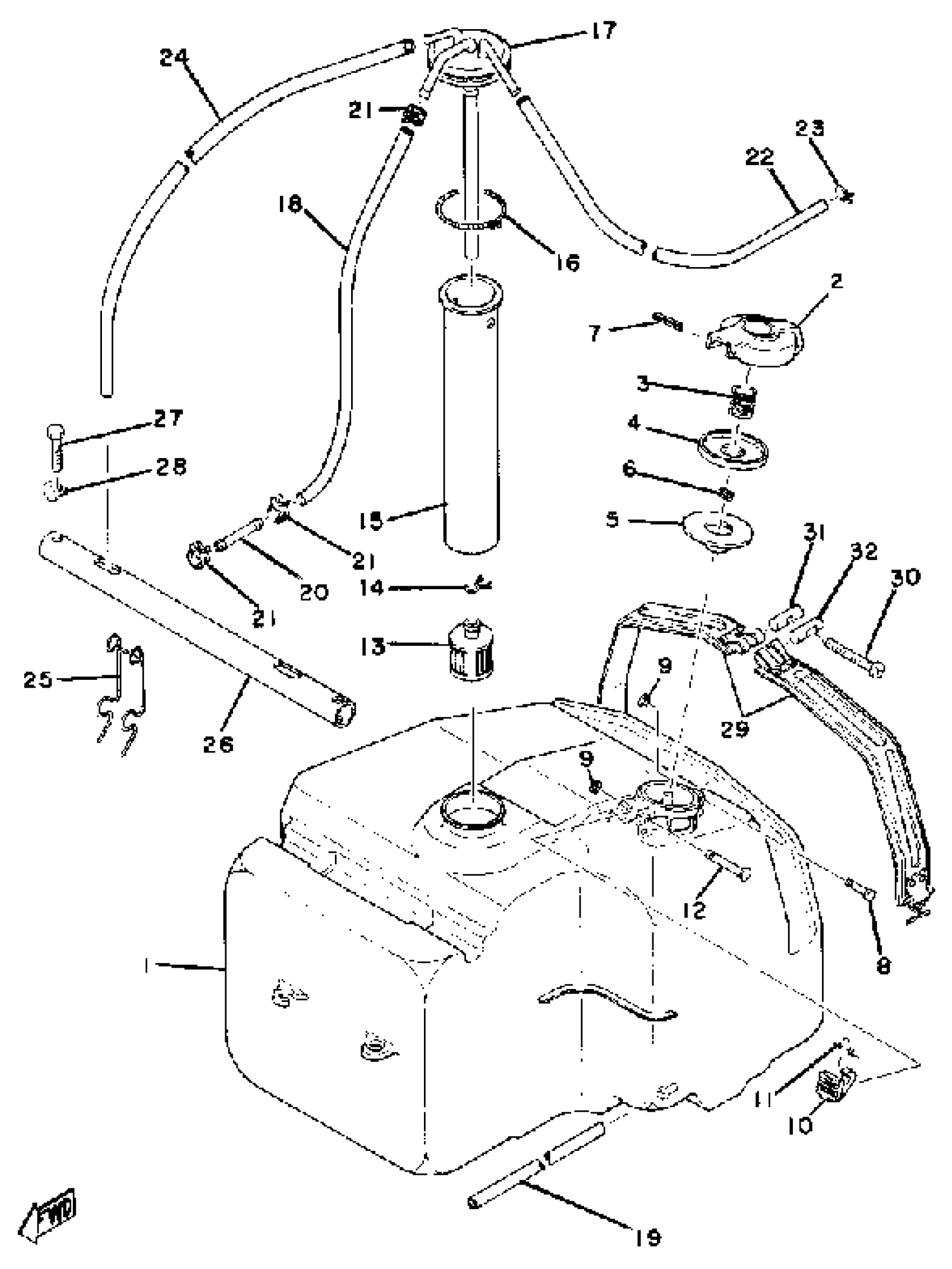

1979 Yamaha EX440C Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

8G6-24111-01-00

1
Out of stock

2

BODY, CAP

8A5-24611-00-00

1
Out of stock

3

SPRING, CAP

90501-20130-00

1

$6.80

In stock

4

DISK,CAP

813-24613-01-00

1

$18.71

In stock

5

GASKET, CAP 1

89A-24641-00-00

1

$9.35

In stock

6

PIN, SPRING

91690-30016-00

1

$5.88

In stock

7

PIN, SPRING

91609-25032-00

1

$1.83

In stock

8

PIN, SPEC''L SHAPE

90249-03016-00

1
Out of stock

9

CIRCLIP (604)

93430-02001-00

1

$6.69

In stock

10

HOOK

83M-24628-00-00

1

$19.68

In stock

11

SPRING, TORSION (813-24637-00)

90508-08003-00

1
Out of stock

12

PIN (813)

90249-03017-00

1

$2.25

In stock

13

FILTER ASSY

8H5-24560-00-00

1

$11.47

In stock

14

CLIP (8J7)

90467-11009-00

1

$7.55

In stock

15

PIPE, SUCTION 2

(8G6-24336-01-00)

1
Out of stock

16

SPRING, TENSION (8R4)

90506-06261-00

—

$6.94

In stock

17

NO LONGER AVAILABLE

8G6-24335-00-00

1
Out of stock

18

HOSE

91A30-07036-00

1
Out of stock

19

TUBE, FLEXIBLE(3NV)

91A21-07020-00

—

$8.95

In stock

20

PIPE, JOINT 4

878-24379-00-00

1

$6.46

In stock

21

CLIP

90467-11028-00

1

$5.14

In stock

22

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

—

$12.58

In stock

23

CLIP (8L2)

90467-08017-00

—

$7.51

In stock

24

HOSE (806-24319-00)

90446-09051-00

1
Out of stock

25

CLAMP

90465-11044-00

1
Out of stock

26

BAND, TNK FITTING 1

(878-24173-01-00)

1
Out of stock

27

BOLT (682)

97095-06040-00

—

$2.36

In stock

28

WASHER, LOCK

(90215-06048-00)

1
Out of stock

29

BAND, TNK FITTING 2

8G6-24199-00-00

1
Out of stock

30

SCREW, SPEC''L SHAPE (821-24176-00)

90149-05006-00

1
Out of stock

31

NUT, SPEC''L SHAPE (806-24146-00)

90179-05030-00

1
Out of stock

32

CLAMP

806-24135-00-00

—

$3.20

In stock
