1978 Yamaha EX440B OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 1978 Yamaha EX440B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

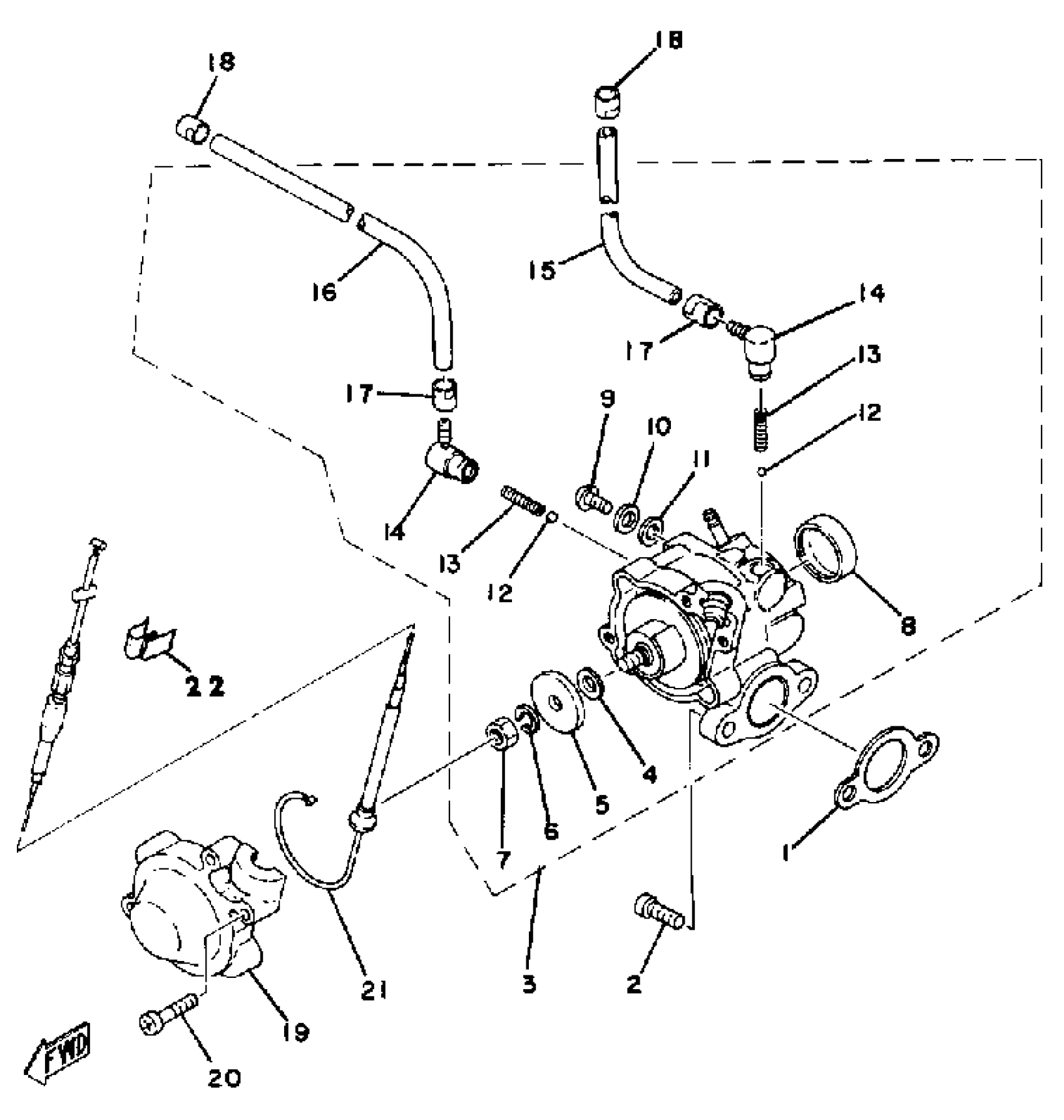

1978 Yamaha EX440B OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET, PUMP CASE

126-13116-01-00

1
Out of stock

2

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

3

OIL PUMP ASSEMBLY

8G6-13101-00-00

1
Out of stock

3

OIL PUMP ASSEMBLY

8G7-13101-00-00

1
Out of stock

4

SHIM,PLUNGER

137-13137-00-03

1

$5.35

In stock

4

SHIM,PLUNGER

137-13137-00-05

1

$5.32

In stock

4

SHIM,PLUNGER

137-13137-00-10

1

$6.43

In stock

5

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

6

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

7

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

8

. PLUG

90338-21100-00

1
Out of stock

9

. SCREW, PAN HEAD

90157-04009-00

1
Out of stock

10

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

11

GASKET 137131870000

90430-04004-00

1
Out of stock

12

BALL

93505-32002-00

1

$2.22

In stock

13

SPRING (278-13169-00)

90501-02018-00

—

$7.69

In stock

14

NOZZLE

353-13552-01-00

—
Out of stock

15

HOSE (L200)

90445-05N13-00

—

$6.17

In stock

16

HOSE (L200)

90445-05N13-00

—

$6.17

In stock

17

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

18

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

19

COVER, ADJUST PULLEY

8A5-13146-01-00

—

$15.95

In stock

20

SCREW, PAN HEAD

98507-04018-00

—
Out of stock

21

PUMP CABLE ASSEMBLY

8G6-26320-00-00

1
Out of stock

22

CLIP (867)

90468-15020-00

—
Out of stock
