1978 Yamaha EX440B Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1978 Yamaha EX440B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

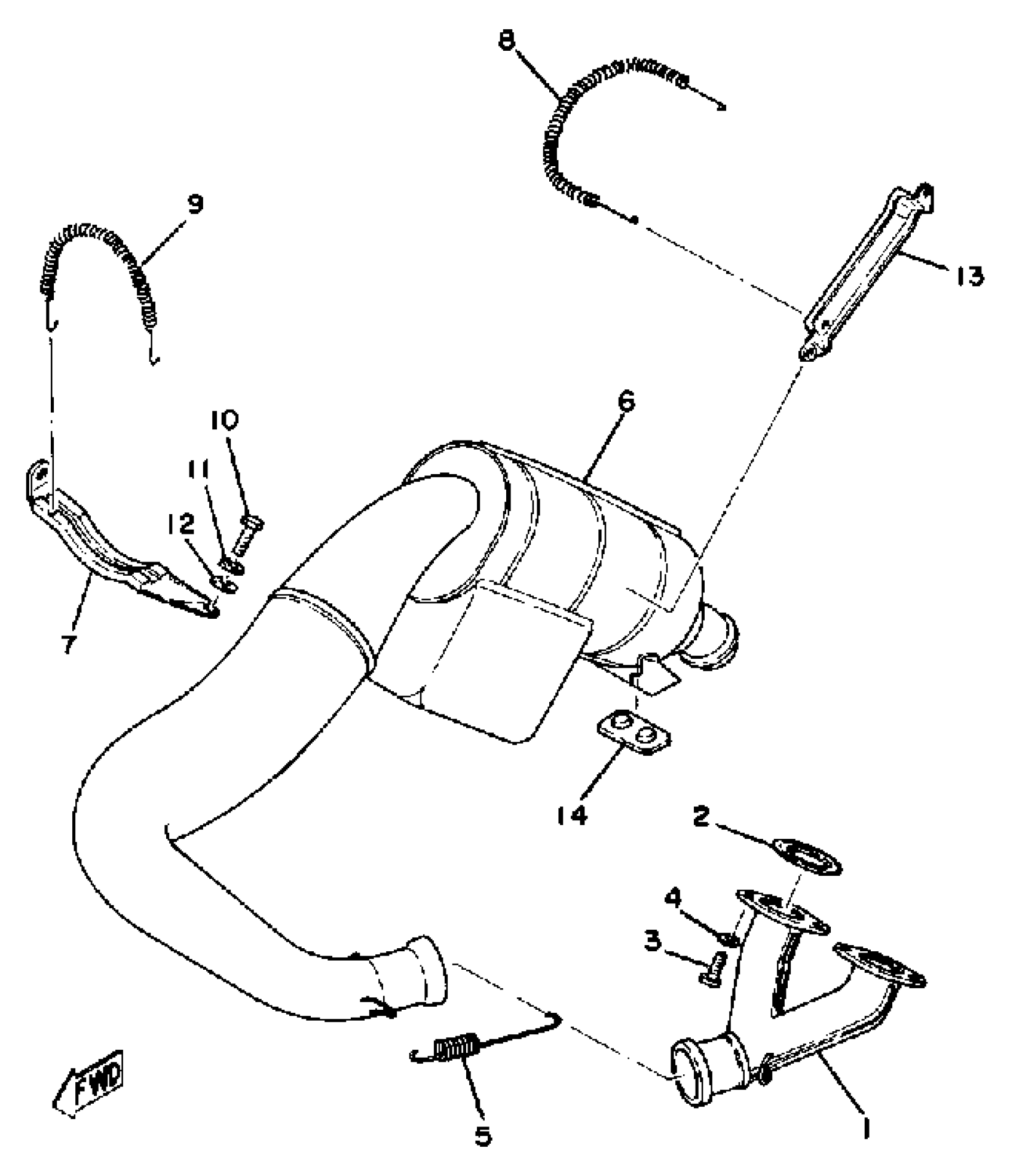

1978 Yamaha EX440B Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY L

8A5-14610-00-00

1
Out of stock

2

GASKET, EXHAUST PIPE

89A-14613-00-00

1

$13.42

In stock

3

BOLT, SOCKET

91317-08025-00

1

$6.25

In stock

4

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

5

SPRING, MUFFLER

821-14773-00-00

1

$15.83

In stock

6

MUFFLER ASSEMBLY L

(8G7-14710-00-00)

1
Out of stock

6

MUFFLER ASSEMBLY L

(8H6-14710-00-00)

1
Out of stock

7

STAY, MUFFLER 1

8A5-14771-00-00

1
Out of stock

8

SPRING, TENSION

90506-16130-00

1
Out of stock

9

SPRING, TENSION (8BU1)

90506-16494-00

1

$6.22

In stock

10

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

11

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

12

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

13

STAY, MUFFLER 2

(8A5-14772-01-00)

1
Out of stock

14

PROTECTOR, MUFFLER 2

8A5-14728-02-00

1
Out of stock
