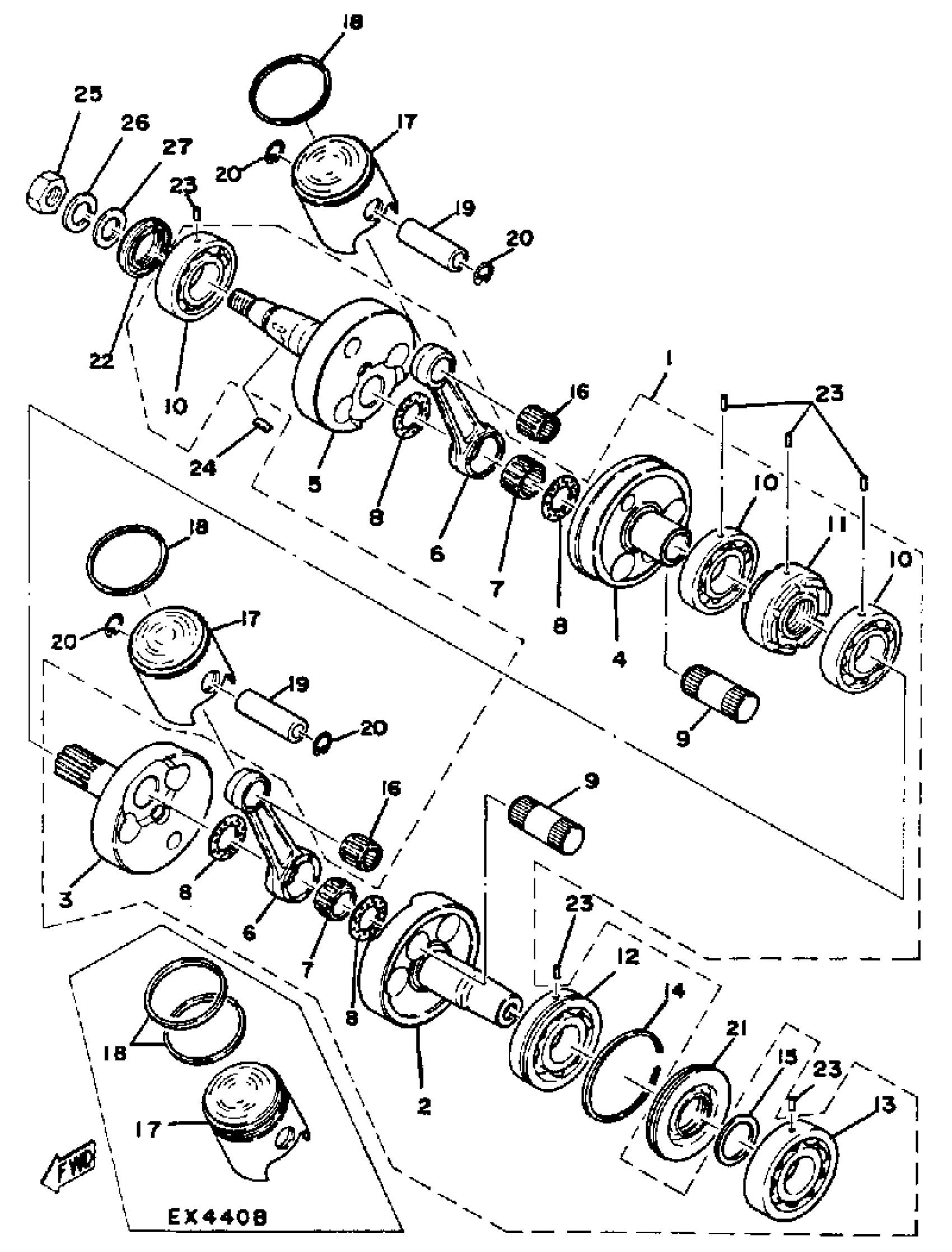

Find the part on the Crank - Piston diagram for your 1978 Yamaha EX440B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha EX440B Crank - Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

8A5-11400-00-00

1
Out of stock

2

. CRANK 1

8A5-11412-00-00

1
Out of stock

3

CRANK 2

(821-11422-01-00)

1
Out of stock

4

CRANK 3

(821-11432-01-00)

1
Out of stock

5

CRANK 4

(821-11442-00-00)

1
Out of stock

6

. ROD, CONNECTING (838-11651-00)

8A7-11651-00-00

1
Out of stock

7

BEARING

93310-424E8-00

1

$19.49

In stock

8

WASHER (152-11685-00)

90209-24073-00

1

$10.08

In stock

9

. PIN, CRANK 1

857-11681-00-00

1
Out of stock

10

BEARING(8V0)

93306-20633-00

1

$67.35

In stock

11

. SEAL, LABYRINTH 1

8A5-11515-00-00

1
Out of stock

12

BEARING (8R6)

93306-30625-00

1

$76.42

In stock

13

BEARING (8R6)

93306-30625-00

1

$76.42

In stock

14

CIRCLIP, OUTER

93440-78011-00

1
Out of stock

15

WASHER (8H0)

90201-34683-00

1
Out of stock

16

—

$32.87

In stock

17

PISTON STD

8A6-11631-01-96

1
Out of stock

17

PISTON 1 O/S 0.25

8A6-11635-01-00

1
Out of stock

17

PISTON 2 O/S 0.50

(8A6-11636-01-00)

1
Out of stock

17

PISTON 3 O/S 0.75

8A6-11637-01-00

1
Out of stock

17

PISTON 4 O/S 1.00

(8A6-11638-01-00)

1
Out of stock

17

PISTON STD

8G6-11631-00-96

1
Out of stock

17

PISTON 1 O/S 0.25 (1ST O/S 0.25MM)

8G6-11635-00-00

1
Out of stock

17

PISTON 2 O/S 0.50 (2ND O/S 0.50MM)

8G6-11636-00-00

1
Out of stock

17

PISTON 3 O/S 0.75 (3RD O/S 0.75MM)

8G6-11637-00-00

1
Out of stock

17

PISTON 4 O/S 1.00 (4TH O/S 1.00MM)

8G6-11638-00-00

1
Out of stock

18

RING, PISTON

846-11611-00-00

1
Out of stock

18

RING, PISTON 1ST

846-11611-10-00

1
Out of stock

18

RING, PISTON 2ND

846-11611-20-00

1
Out of stock

18

RING, PISTON 3RD

(846-11611-30-00)

1
Out of stock

18

RING, PISTON 4TH

846-11611-40-00

1
Out of stock

18

PISTON RINGSET STD (STD)

8G6-11601-00-00

1
Out of stock

18

PISTON RINGSET 1ST (1ST O/S)

8G6-11601-10-00

1
Out of stock

18

PISTON RINGSET 2ND (2ND O/S)

8G6-11601-20-00

1
Out of stock

18

PISTON RINGSET 3RD (3RD O/S)

8G6-11601-30-00

1
Out of stock

18

PISTON RINGSET 2ND (4TH O/S)

8G6-11601-40-00

1
Out of stock

19

PIN, PISTON

168-11633-00-00

1
Out of stock

19

PIN, PISTON

818-11633-00-00

—

$28.05

In stock

20

CLIP 6041163400

93450-20026-00

—

$5.10

In stock

21

OIL SEAL (878).

93103-32095-00

—

$30.09

In stock

22

OIL SEAL(83R)

93103-32156-00

—

$26.08

In stock

23

PIN,DOWEL (168)

93604-12037-00

—
Out of stock

24

KEY, WOOD RUFF (324)

90280-05014-00

—

$7.82

In stock

25

NUT

90170-16425-00

—
Out of stock

26

WASHER(JN5)

92907-16100-00

—

$12.08

In stock

27

WASHER, PLATE (32N)

90201-163G6-00

—

$6.98

In stock
