1973 Yamaha EW643B Speedometer - Tachometer Diagram

← All diagrams

Find the part on the Speedometer - Tachometer diagram for your 1973 Yamaha EW643B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

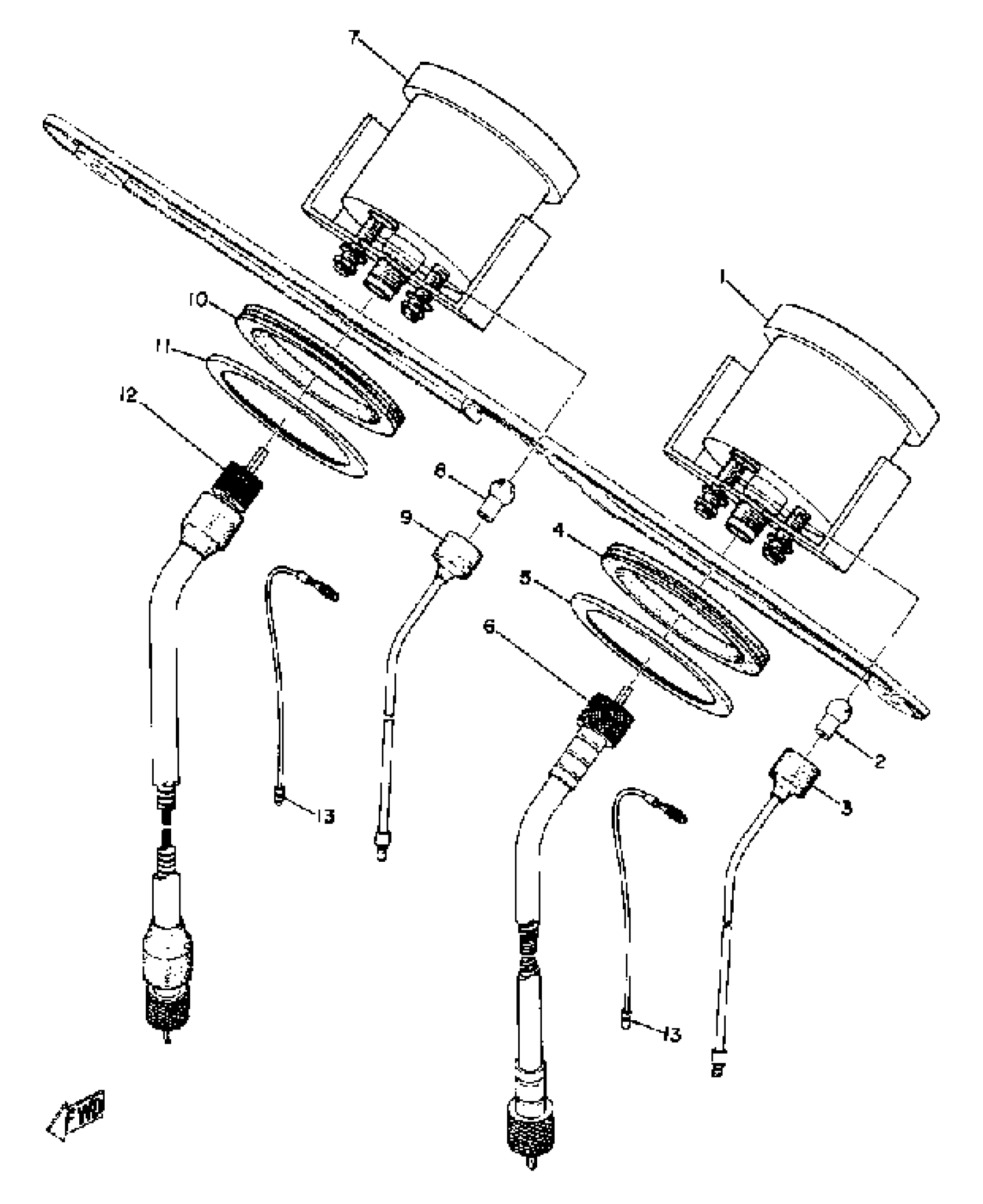

1973 Yamaha EW643B Speedometer - Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

821-83510-40-00

1
Out of stock

2

BULB

256-84347-00-00

1
Out of stock

3

SOCKET, METER

(803-83536-10-00)

1
Out of stock

4

DAMPER

(809-83513-00-00)

1
Out of stock

5

PLATE, FITTING

(803-83577-00-00)

1
Out of stock

6

SPEEDOMETER CABLEASS''Y

813-83550-01-00

1
Out of stock

7

TACHOMETER ASSEMBLY

(811-83540-00-00)

1
Out of stock

8

BULB

256-84347-00-00

1
Out of stock

9

SOCKET, METER

(811-83536-00-00)

1
Out of stock

10

DAMPER

(809-83513-00-00)

1
Out of stock

11

PLATE, FITTING

(803-83577-00-00)

1
Out of stock

12

SPEEDOMETER CABLE (8E7-83550-00)

8E7-83550-01-00

1
Out of stock

13

CASE, SPDMTR UPPER

(842-83571-00-00)

1
Out of stock
