1973 Yamaha EW643B Electrical 2 Diagram

← All diagrams

Find the part on the Electrical 2 diagram for your 1973 Yamaha EW643B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

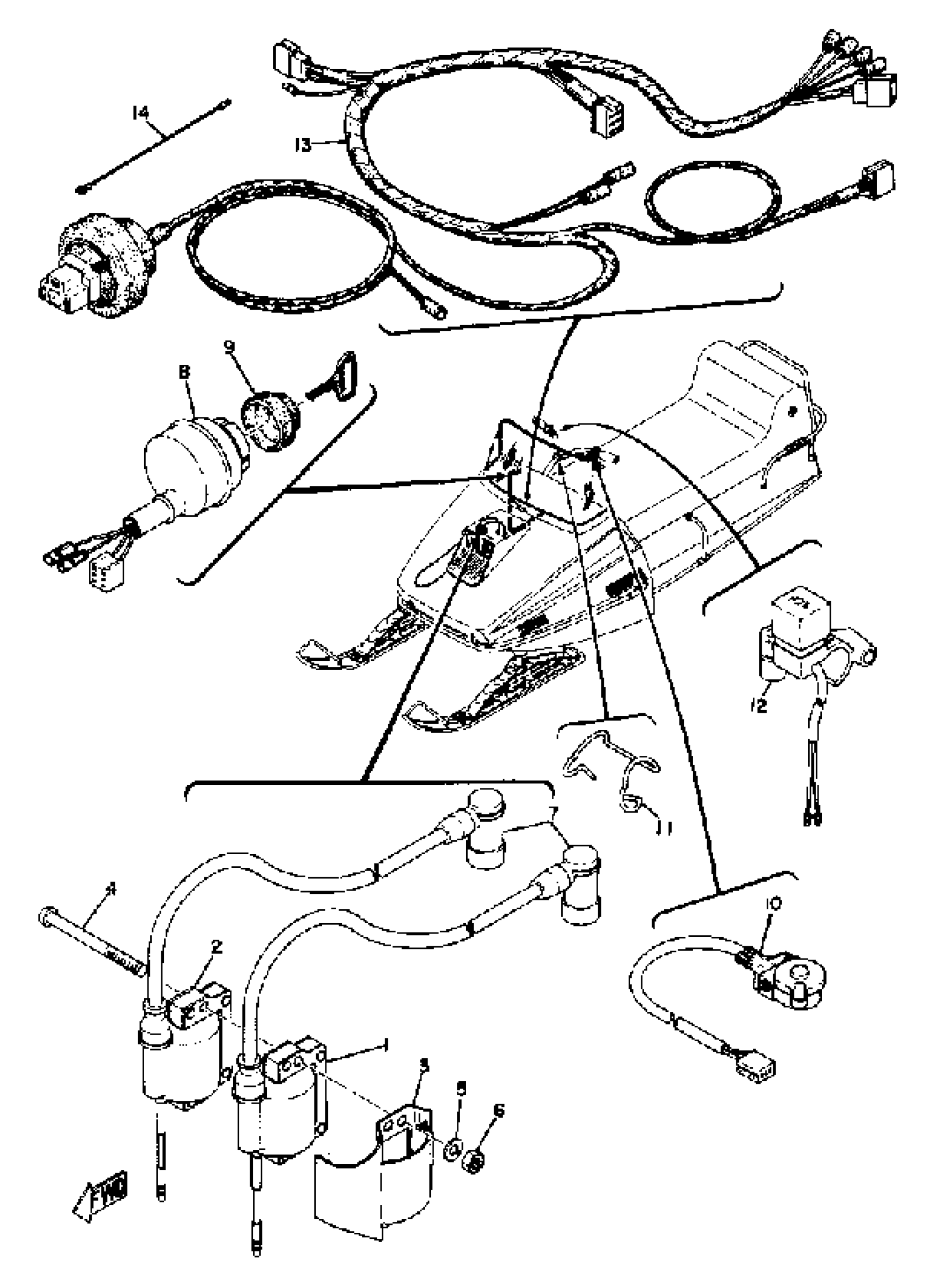

1973 Yamaha EW643B Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITION COIL ASSEMBLY

(847-82310-40-00)

1
Out of stock

2

IGNITION COIL ASSEMBLY

(847-82320-40-00)

1
Out of stock

3

COVER, IGNITN COIL

(838-82314-00-00)

1
Out of stock

4

SCREW, PAN HEAD

98507-06070-00

1

$6.91

In stock

5

WASHER, SPRING

92907-06100-00

1
Out of stock

6

NUT(6TA)

95317-06600-00

1

$2.69

In stock

7

PLUG CAP ASSY

663-82370-01-00

1

$13.45

In stock

8

MAIN SWITCH ASSEMBLY

(838-82508-20-00)

1
Out of stock

9

COLLAR, MAIN SWITCH

806-82516-00-00

1
Out of stock

10

STOP SWITCH ASSEMBLY

822-82530-00-00

1
Out of stock

11

CLAMP

(841-82594-00-00)

1
Out of stock

12

SWITCH, HANDLE 1

883-83976-00-00

1
Out of stock

13

WIRE HARNESS ASSEMBLY

838-82590-21-00

1
Out of stock

14

WIRE, EARTH LEAD

(838-82519-00-00)

1
Out of stock
