1973 Yamaha EW643B Electric Motor Diagram

← All diagrams

Find the part on the Electric Motor diagram for your 1973 Yamaha EW643B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

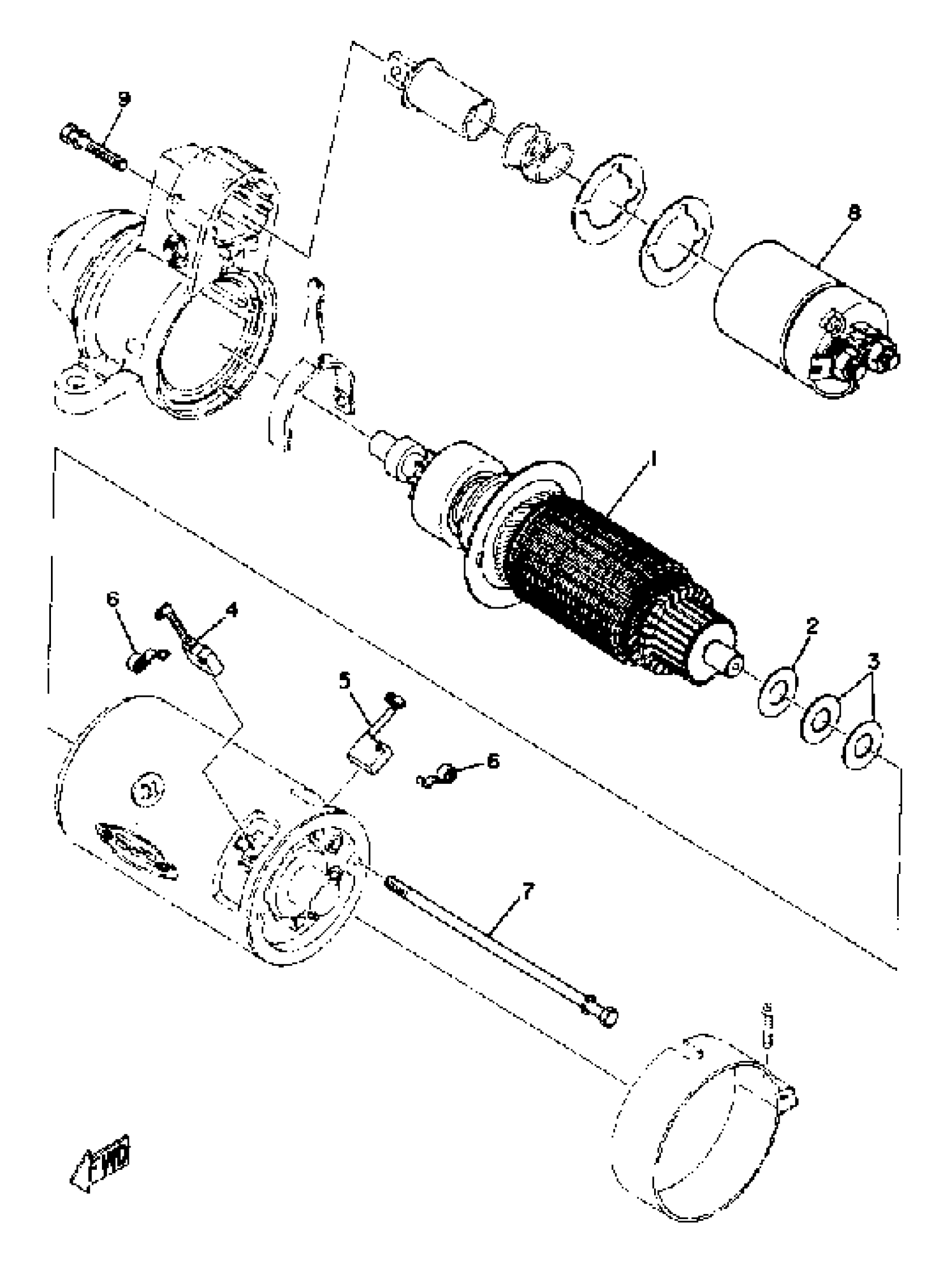

1973 Yamaha EW643B Electric Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTING MOTOR ASSEMBLY

(834-81800-10-00)

1
Out of stock

1

ARMATURE ASSEMBLY

(834-81850-10-00)

1
Out of stock

2

STAY, STARTING MTR

(834-81823-10-00)

1
Out of stock

3

WASHER 2

(834-81824-10-00)

1
Out of stock

4

. BRUSH 1 (+)

834-81811-10-00

1
Out of stock

5

BRUSH 2

(834-81812-10-00)

1
Out of stock

6

SPRING, BRUSH

(834-81813-10-00)

1
Out of stock

7

BOLT

(834-81826-10-00)

1
Out of stock

8

SWITCH ASSEMBLY

(834-81860-10-00)

1
Out of stock

9

SCREW

(834-81846-10-00)

1
Out of stock
