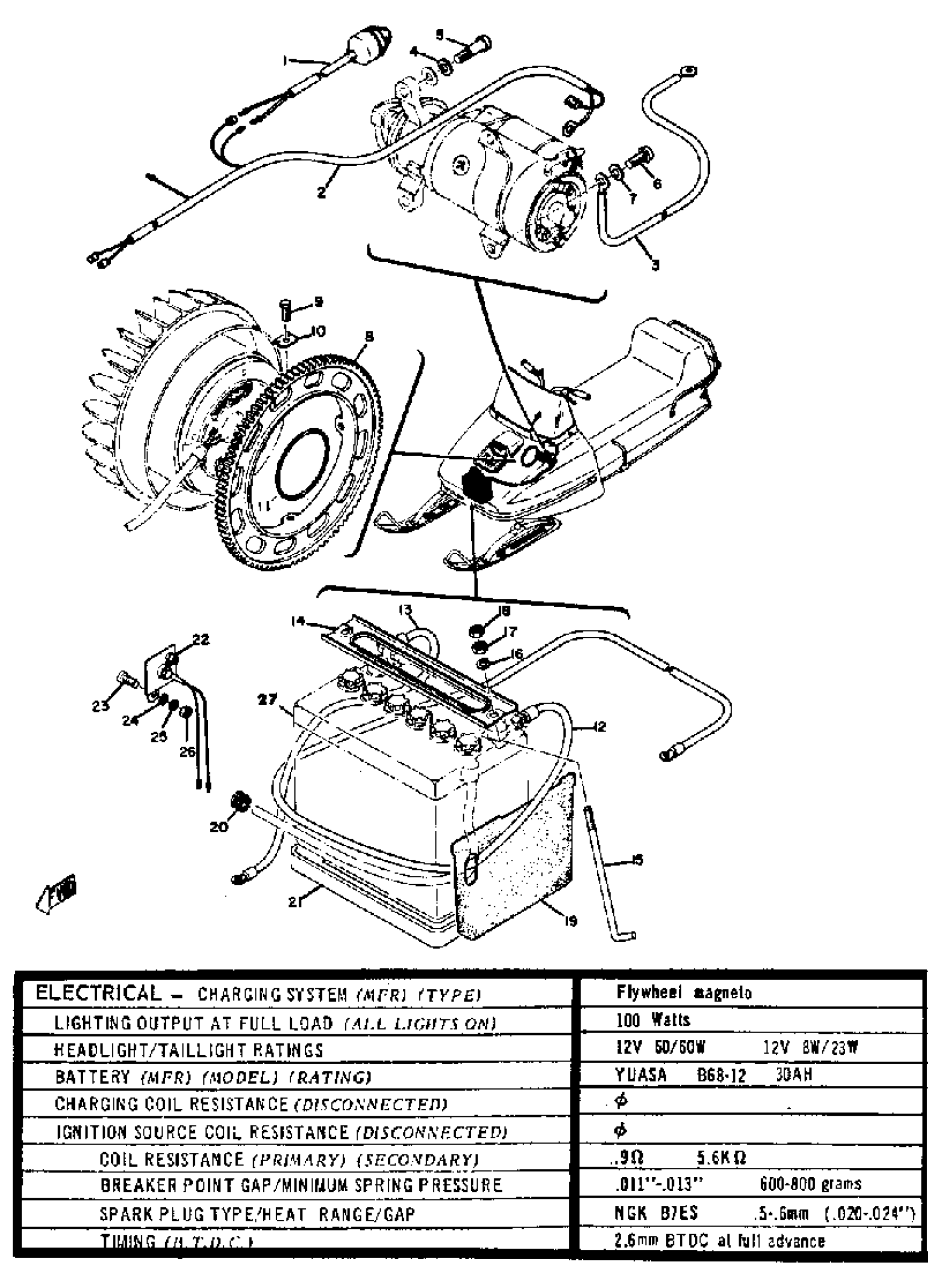

Find the part on the Electrical 1 diagram for your 1973 Yamaha EW643B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha EW643B Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTER SWITCH ASSEMBLY

(811-83970-00-00)

1
Out of stock

2

WIRE, LEAD 2

(852-82127-00-00)

1
Out of stock

3

WIRE, LEAD

(842-82117-00-00)

1
Out of stock

4

SCREW, SPEC''L SHAPE

90149-08056-00

1
Out of stock

5

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

6

SCREW PAN HEAD

98580-08020-00

—

$3.14

In stock

7

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

9

BOLT, DOME HEAD

(90106-08004-00)

1
Out of stock

10

WASHER, LOCK

(90215-08071-00)

1
Out of stock

11

O-RING (1.9-68.6)

93210-69058-00

1
Out of stock

12

WIRE, PLUS LEAD

824-82115-00-00

1
Out of stock

13

WIRE, MINUS LEAD

822-82116-00-00

1
Out of stock

14

PLATE, BATT FITTING

(822-82136-00-00)

1
Out of stock

15

SCREW, SPEC''L SHAPE

(90149-06024-00)

1
Out of stock

16

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

17

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

18

NUT(650)

95380-06700-00

—

$6.17

In stock

19

SEAL, BATTERY

822-82118-00-00

1
Out of stock

20

GROMMET 152845180000

90480-12013-00

—
Out of stock

21

SEAT, BATTERY

807-82122-00-00

1
Out of stock

22

RECTIFIER ASSEMBLY

(812-81970-41-00)

1
Out of stock

23

SCREW, PAN

98507-06014-00

—

$6.18

In stock

24

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

25

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

26

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

27

SMB BATTERY B68-12

(807-82110-80-00)

1
Out of stock
