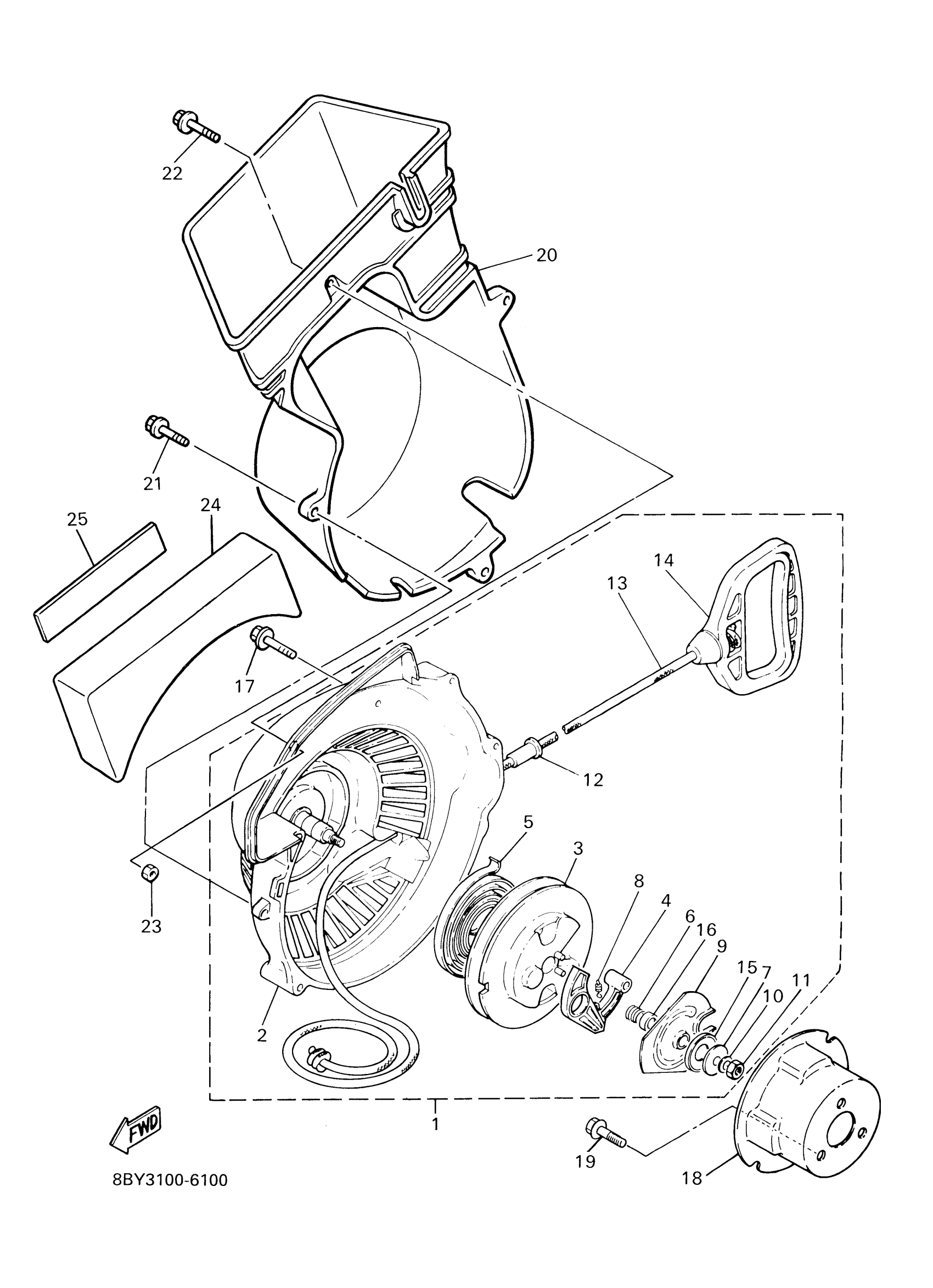

Yamaha ET410TRF 8BY8 2001 STARTER Diagram

#

Description
Price

1

STARTER ASSY

85L-15710-00-00

Unavailable

2

. CASE, STARTER

8G8-15711-01-00

Unavailable

3

DRUM, SEAVE

8F3-15714-01-00

$44.27

4

PAWL, DRIVE

8F3-15741-01-00

$20.42

5

SPRING, STARTER

8F3-15713-01-00

$39.64

6

SPRING, DRIVE PLATE

8F3-15715-00-00

$8.88

7

WASHER, THRUST

8F3-15739-01-00

$10.70

8

SPRING, RETURN

8F3-15734-00-00

$4.97

9

PLATE, DRIVE

8F3-15716-03-00

$22.31

10

WASHER, SPRING

92907-06100-00

$0.97

11

NUT(JN5)

95317-06700-00

$6.23

12

GUIDE, ROPE

8F3-15758-00-00

$16.58

13

WIRE, STARTER (BRAIDED)

89A-15751-00-00

$26.39

14

HANDLE, STARTER

8F3-15755-00-00

$21.46

15

WASHER, THRUST

8G5-15739-00-00

$6.73

16

COLLOR

82M-15779-00-00

Unavailable

17

BOLT, FLANGE

95817-06045-00

Unavailable

18

PULLEY, STARTER

81L-15723-00-00

Unavailable

19

BOLT, FLANGE

95817-08012-00

Unavailable

20

COVER

85L-15779-00-00

Unavailable

21

BOLT, FLANGE

95817-06030-00

Unavailable

22

BOLT, FLANGE

95817-06030-00

Unavailable

23

NUT

90179-06447-00

Unavailable

24

DEFLECTOR 1

89X-12631-00-00

Unavailable

25

PLATE

89X-12681-00-00

Unavailable
